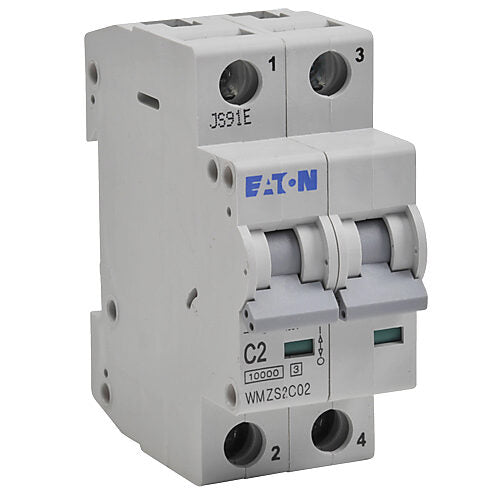

WMZS2C02 - Cutler Hammer 2A 2 Pole 480V DIN Rail Circuit Breaker 10kA Interrupt Rating

WMZS2C02

WMZS2C02 is a Cutler Hammer 2 amp, 2 pole, 480 Volt circuit breaker designed for DIN rail mounting with a 10kA interrupt rating at 277/480V.WMZS2C02 features thermal-magnetic overcurrent protection with a C trip curve, providing fast short-circuit interruption and supplementary protection for control circuits, lighting, and business equipment. It is UL 1077 recognized and meets CSA C22.2 No.235 and IEC 60947-2 standards. The breaker includes a trip-free design, captive screws, and a compact 0.69 inch module width per pole for easy installation.

Key Specifications
• Amperage: 2 Amps
• Voltage Rating: 480 Volts AC
• Number of Poles: 2
• Mounting Type: DIN Rail
• Interrupt Rating: 10 kA at 277/480 Vac
• Trip Unit: Thermal-Magnetic, C Curve
• Standards: UL 1077, CSA C22.2 No.235, IEC 60947-2
• Supplementary Protection
• Trip-Free Mechanism
• Contact Position Indicator (Red/Green)
• Module Width: 0.69 inches per pole

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZS2C02
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZS Series
• Type : WMZS
• Voltage : 480
• Amperage : 2
• Phase : 1
• Poles : 2
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525910
• GTIN : 00786685259109
• Country of Origin : Spain
• Weight : 0.53
• Certification : CSA Std. C22.2 No. 235;IEC 60947-2;UL 1077;CE Marked;RoHS Compliant
