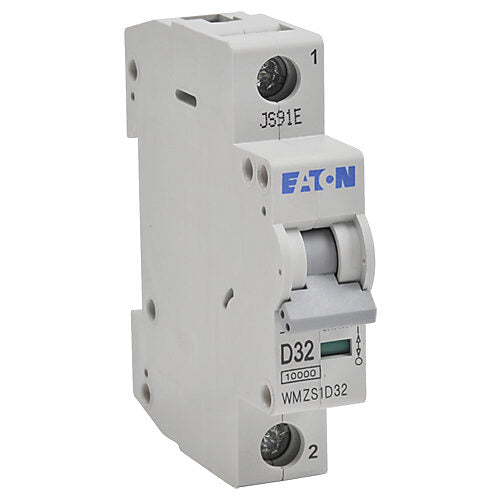

WMZS1D32 - Cutler Hammer 32A 1-Pole 277VAC DIN Rail Miniature Circuit Breaker D Curve

WMZS1D32

WMZS1D32 is a Cutler Hammer miniature circuit breaker designed for control panel applications with 32 ampere rating and 1 pole configuration.This WMZS series breaker features a D curve thermal magnetic trip unit, suitable for 277 VAC and 48 VDC applications. It mounts easily on a 35mm DIN rail and provides supplementary protection with a 5kA interrupting rating. The breaker complies with UL 1077, CSA C22.2 No.235, and IEC 60947-2 standards, offering reliable and safe circuit protection with a trip-free design and captive screws.

Key Specifications
• Amperage: 32A
• Voltage: 277 VAC / 48 VDC
• Poles: 1
• Mounting Type: 35mm DIN rail
• Interrupt Rating: 5kA
• Series/Frame: WMZS
• Trip Unit: Thermal Magnetic, D Curve
• Certifications: UL 1077, CSA C22.2 No.235, IEC 60947-2
• Trip-Free Design
• Contact Position Indicator (Red/Green)
• Captive Screws
• Supplementary Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: WMZS1D32
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZS Series
• Type : WMZS
• Voltage : 480
• Amperage : 32
• Phase : 1
• Poles : 1
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 78668525892
• GTIN : 00786685258928
• Country of Origin : Spain
• Weight : 0.3
