Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description

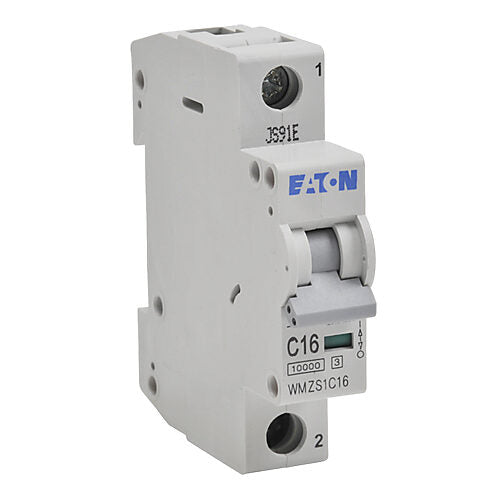

WMZS1C16
WMZS1C16 is a single-pole, 16 amp, 480 volt circuit breaker designed for reliable protection in control panel and industrial applications. This Cutler Hammer WMZS series breaker features a C-trip curve for medium inrush loads and a trip-free design to prevent manual override. The WMZS1C16 is a DIN rail mountable miniature circuit breaker with thermal-magnetic overcurrent protection. It is suitable for use in applications requiring supplementary protection and offers a compact design for space-constrained installations. The breaker is rated for a maximum interrupting capacity of 10kA at 277/480V and is built to UL 1077, CSA C22.2 No.235, and IEC 60947-2 standards.
- Part Number: WMZS1C16
- Manufacturer: Cutler Hammer
- Series: WMZS
- Number of Poles: 1
- Rated Current: 16A
- Rated Voltage: 480V AC
- Interrupting Rating: 10kA @ 277/480V
- Mounting Type: DIN Rail
- Protection Type: Thermal-Magnetic
- Tripping Curve: C Curve (5–10x In)
- Standards: UL 1077, CSA C22.2 No.235, IEC 60947-2
- Application: Supplementary Protection
Specifications
- Part Number: WMZS1C16
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZS Series
- Type : WMZS
- Voltage : 480
- Amperage : 16
- Phase : 1
- Poles : 1
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525868
- GTIN : 00786685258683
- Country of Origin : Spain
- Weight : 0.3
