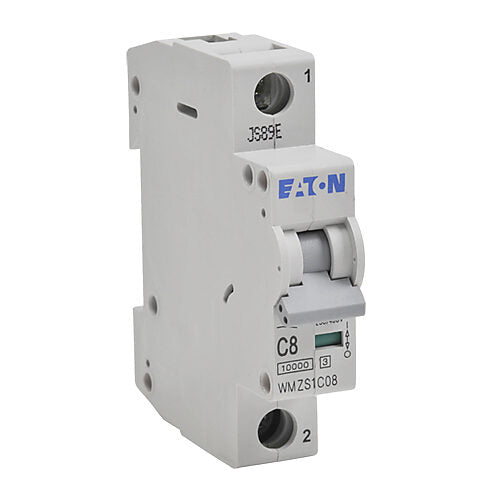

WMZS1C08 - Cutler Hammer 8A 277VAC 1-Pole DIN Rail Mount Circuit Breaker C Curve

WMZS1C08

WMZS1C08 is a Cutler Hammer 8 amp, 1-pole circuit breaker designed for DIN rail mounting with a 277VAC rating and C curve trip characteristic.This miniature circuit breaker features thermal magnetic protection with a 10 kA interrupt rating at 277/480V. It is a single-pole device with a compact 35mm DIN rail mount design, suitable for control panel applications. The breaker complies with UL 1077 and IEC 60947-2 standards and offers a trip-free mechanism to prevent manual override of the trip function.

• Amperage: 8A
• Voltage Rating: 277VAC / 48VDC
• Number of Poles: 1
• Mounting Type: 35mm DIN Rail
• Interrupt Rating: 10 kA at 277/480V
• Trip Unit: Thermal Magnetic, C Curve
• Standards: UL 1077, IEC 60947-2
• Trip-Free Design
• Compact Width: 17.5 mm
• Supplementary Protection Device
• Captive Terminal Screws

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZS1C08
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZS Series
• Type : WMZS
• Voltage : 480
• Amperage : 8
• Phase : 1
• Poles : 1
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525864
• GTIN : 00786685258645
• Country of Origin : Spain
• Weight : 0.25
• Certification : UL 1077;IEC 60947-2;CSA Std. C22.2 No. 235;RoHS Compliant;CE Marked
