Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
WMZS1C05

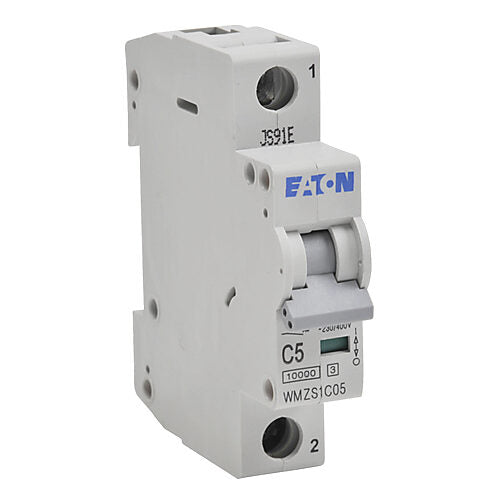

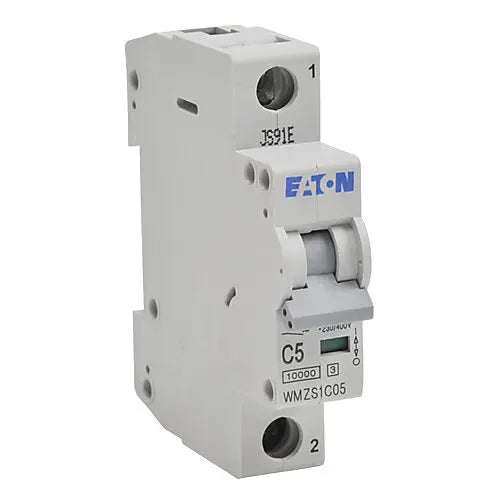

WMZS1C05 is a Cutler Hammer 5 amp, 1 pole circuit breaker designed for 277/480 Volt applications with a 10kA interrupt rating.This miniature circuit breaker features a thermal magnetic trip unit with a C curve characteristic, suitable for branch circuit protection and supplemental protection in industrial and commercial electrical systems. It mounts on a standard DIN rail and complies with UL 1077 standards.
- Amperage: 5 Amps
- Voltage Rating: 277/480 Volts
- Number of Poles: 1 (Single Pole)
- Interrupt Rating: 10kA at 277/480V
- Mounting Type: DIN Rail
- Trip Unit: Thermal Magnetic, C Curve
- Series/Frame: WMZS
- Certifications: UL 1077 Recognized
- Supplemental Protector
- Line and Load Terminals Included
- Compact Size for Control Panels
Specifications
- Part Number: WMZS1C05
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZS Series
- Type : WMZS
- Voltage : 480
- Amperage : 5
- Phase : 1
- Poles : 1
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525861
- GTIN : 00786685258614
- Country of Origin : Spain
- Weight : 0.3
- Certification : CSA Std. C22.2 No. 235;IEC 60947-2;UL 1077;RoHS Compliant;CE Marked
