WMZS1C02 - Cutler Hammer 2A 1-Pole 277V DIN Rail Thermal Magnetic Circuit Breaker

WMZS1C02

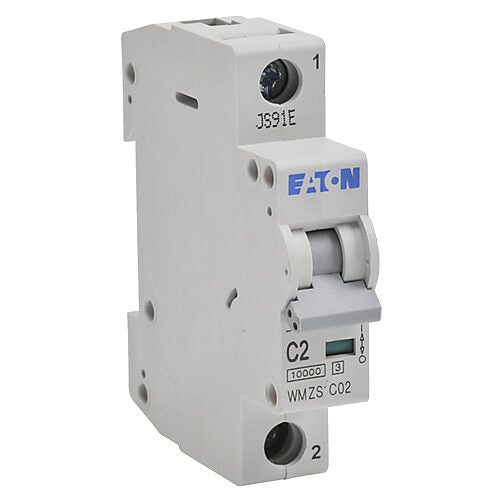

WMZS1C02 is a single-pole thermal magnetic circuit breaker from Eaton Cutler Hammer designed for DIN rail mounting in control panel applications.

The WMZS1C02 offers supplementary overcurrent protection with a C-curve trip characteristic and thermal-magnetic protection mechanism. This breaker features a trip-free design that cannot be defeated by holding the handle in the ON position, captive screws for secure installation, and a contact position indicator for quick status verification. The compact module width of 0.69 inches per pole allows for space-efficient panel layouts. Field-installable shunt trip and auxiliary switch options are available for expanded functionality.

• Amperage Rating: 2A
• Number of Poles: 1
• Rated Voltage: 277V AC
• Mounting: DIN Rail
• Trip Curve: Type C
• Interrupt Rating: 10 kA UL/CSA
• Protection Type: Thermal Magnetic
• Certifications: UL 1077, CSA C22.2 No.235, IEC 60947-2
• Module Width: 0.69 inches (17.5 mm)
• Contact Position Indicator: Red/Green

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZS1C02
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZS Series
• Type : WMZS
• Voltage : 480
• Amperage : 2
• Phase : 1
• Poles : 1
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525858
• GTIN : 00786685258584
• Country of Origin : Spain
• Weight : 0.31
• Certification : CSA Std. C22.2 No. 235;IEC 60947-2;UL 1077;RoHS Compliant;CE Marked
