Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description

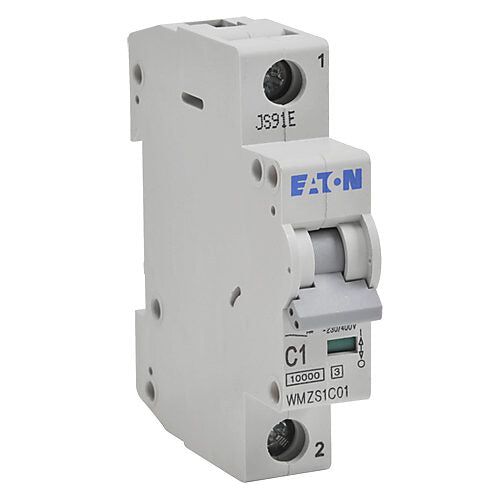

WMZS1C01
WMZS1C01 is a Cutler Hammer DIN rail mountable circuit breaker designed for branch service applications with a 1 ampere rating and single pole configuration.This WMZS series miniature circuit breaker features a 10 kA interrupt rating at 277/480 VAC, thermal magnetic trip unit with a C trip curve, and is UL 1077 recognized as a supplementary protector. It supports line and load terminals and is suitable for control panel assemblies requiring reliable overcurrent protection.
- Amperage: 1 Amp
- Voltage Rating: 277/480 VAC
- Number of Poles: Single Pole
- Mounting Type: DIN Rail
- Interrupt Rating: 10 kAIC
- Series/Frame: WMZS
- Trip Unit: Thermal Magnetic, C Curve
- Certifications: UL 1077 Recognized
- Application: Branch Circuit Protection
- Line and Load Terminals Included
Specifications
- Part Number: WMZS1C01
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZS Series
- Type : WMZS
- Voltage : 480
- Amperage : 1
- Phase : 1
- Poles : 1
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525857
- GTIN : 00786685258577
- Country of Origin : Spain
- Weight : 0.33
- Certification : IEC 60947-2;UL 1077;CSA Std. C22.2 No. 235;RoHS Compliant;CE Marked
