Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description

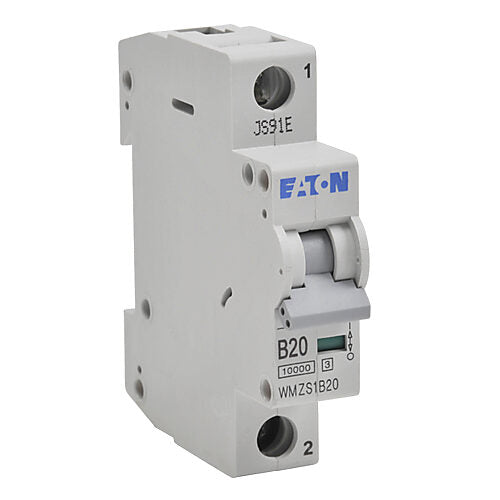

WMZS1B20
WMZS1B20 is a single-pole miniature circuit breaker designed for reliable protection in industrial and commercial applications. This Eaton Cutler Hammer device features a Type B trip curve and is suitable for use with lighting and general-purpose circuits. The WMZS1B20 is a thermal magnetic circuit breaker with a 20A current rating, 1-pole configuration, and DIN rail mounting for easy installation. It offers a 10kA interrupting capacity and is UL 1077 recognized for supplementary protection. The device is current limiting and includes a standard trip indicator.
- Part Number: WMZS1B20
- Manufacturer: Cutler Hammer
- Amperage: 20A
- Poles: 1
- Mounting Type: DIN Rail
- Interrupt Rating: 10kA
- Trip Curve: Type B
- Protection Type: Thermal Magnetic
- Standards: UL 1077 Recognized
- Voltage Rating: 277V AC
- Application: Supplementary Protection
- Current Limiting: Yes
Specifications
- Part Number: WMZS1B20
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZS Series
- Type : WMZS
- Voltage : 480
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525849
- GTIN : 00786685258492
- Country of Origin : Spain
- Weight : 0.2
- Certification : UL 1077;CSA Std. C22.2 No. 235;IEC 60947-2;CE Marked;RoHS Compliant
