- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
W200M4CFC

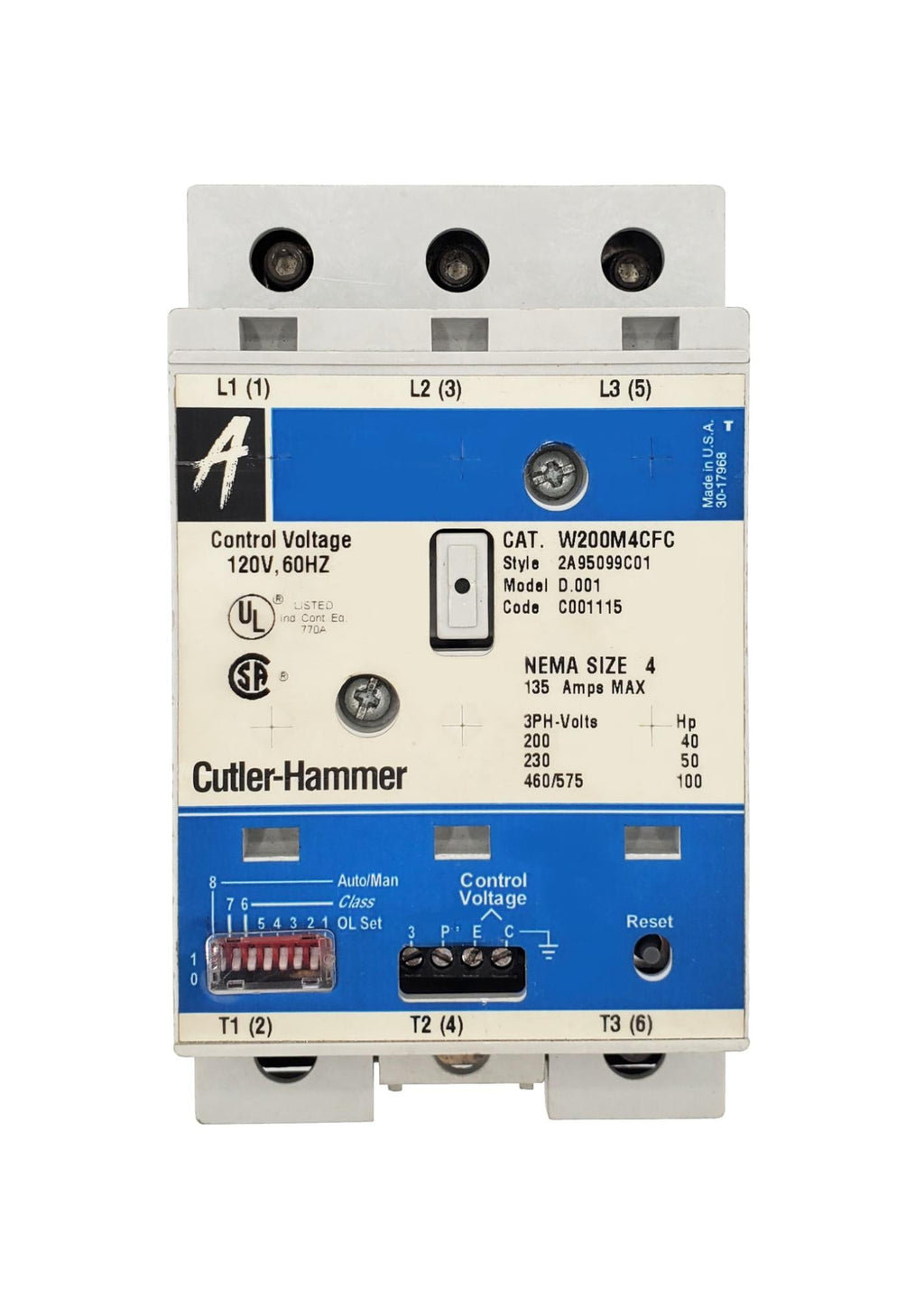

W200M4CFC is a Cutler Hammer Advantage Series motor starter designed for reliable motor control applications.This 3-pole, 3-phase motor starter features a 135-ampere rating and supports voltages up to 600V. It includes a 120V coil and is rated for NEMA 4 environments, making it suitable for industrial use with solid state overload protection, phase loss, and phase unbalance protection. The starter is non-reversing and supports motor power up to 40 hp at 200V and 50 hp at 230V.
- Key Specifications
- Manufacturer: Cutler Hammer
- Part Number: W200M4CFC
- Series: Advantage Series, Type W200
- Amperage: 135 Amps
- Voltage Rating: 600V
- Poles: 3
- Coil Voltage: 120V AC, 60 Hz
- NEMA Rating: NEMA 4
- Motor Power: 40 hp max at 200V, 50 hp at 230V, 100 hp at 460/575V
- Overload Protection: Solid state with phase loss and phase unbalance protection
- Mounting Type: Open (no enclosure)
- Trip Unit: Automatic/manual reset
- Part Number: W200M4CFC
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Advantage Series
- Type : W200
- Voltage : 600
- Amperage : 135
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
- UPC : 78211497493
- GTIN : 00782114974933
- Weight : 12
