Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
W+200M2CFC

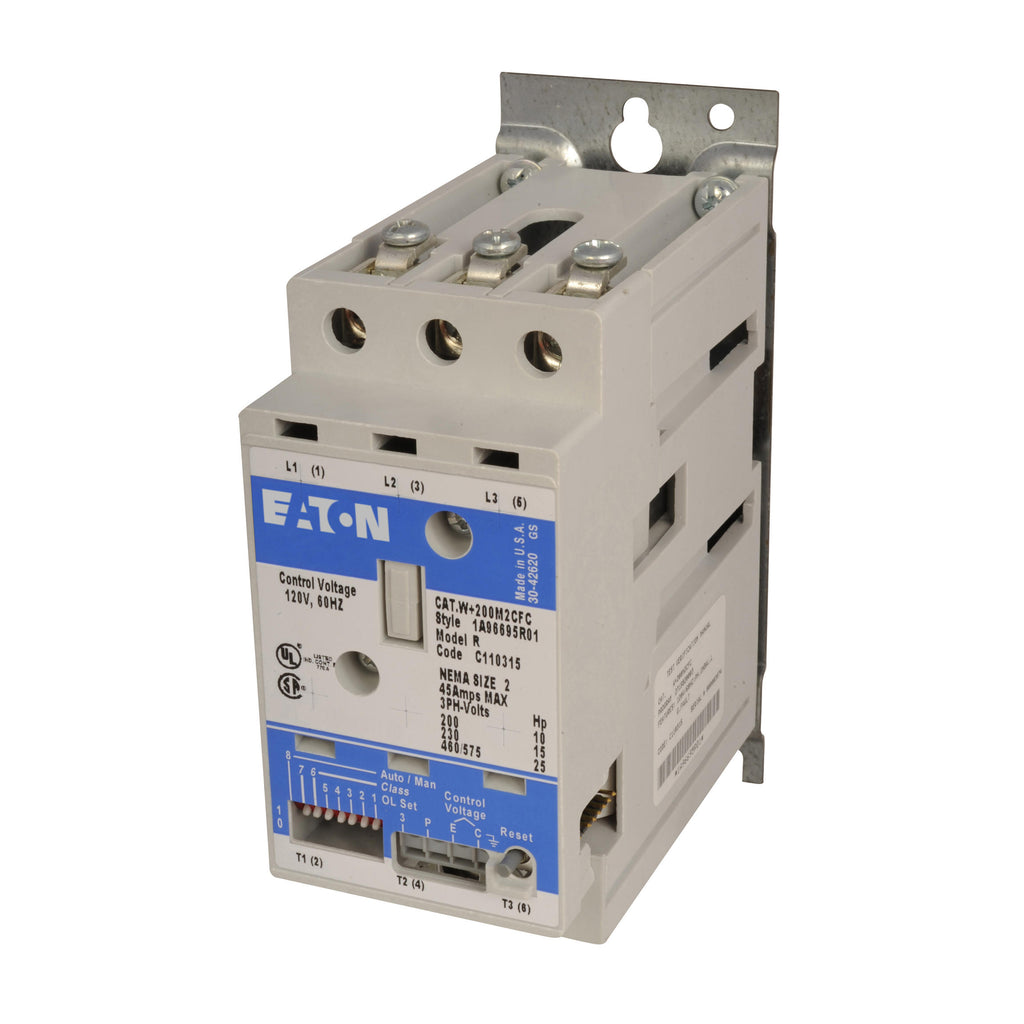

W+200M2CFC is a Cutler Hammer Advantage Series 3 pole, 45A, 600VAC motor starter with a 120VAC coil, NEMA Size 2, non-reversing design. This starter provides reliable full voltage motor control and includes standard overload protection for industrial applications. This motor starter is designed for across-the-line starting and stopping of motors up to 25 HP at 460/575VAC. It features a compact physical size, solid state current sensing for overload, phase loss, phase imbalance, and ground current-sensing protection. The open style design allows for easy mounting and integration into control panels.
- Part Number: W+200M2CFC
- Manufacturer: Cutler Hammer
- Series: Advantage Series
- NEMA Size: 2
- Amperage: 45A
- Voltage: 600VAC
- Poles: 3
- Coil Voltage: 120VAC at 60Hz
- Mounting Type: Open Style (No Enclosure)
- Application: Full Voltage, Non-Reversing
- Overload Protection: Standard
- Max HP Ratings: 10 @ 200V, 15 @ 230V, 25 @ 460/575V
Specifications
- Part Number: W+200M2CFC
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Advantage Series
- Type : W+200
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Nema Starter Size : 2
- Frequency : 50 Hz
Product Data
- UPC : 782114979204
- GTIN : 00782114979204
- Country of Origin : United States
- Dimensions : 9 in x 5.37 in x 6.18 in (Length/Depth x Height x Width)
- Weight : 3.1 lb
- Certification : CSA Certified,UL Listed,NEMA Compliant
