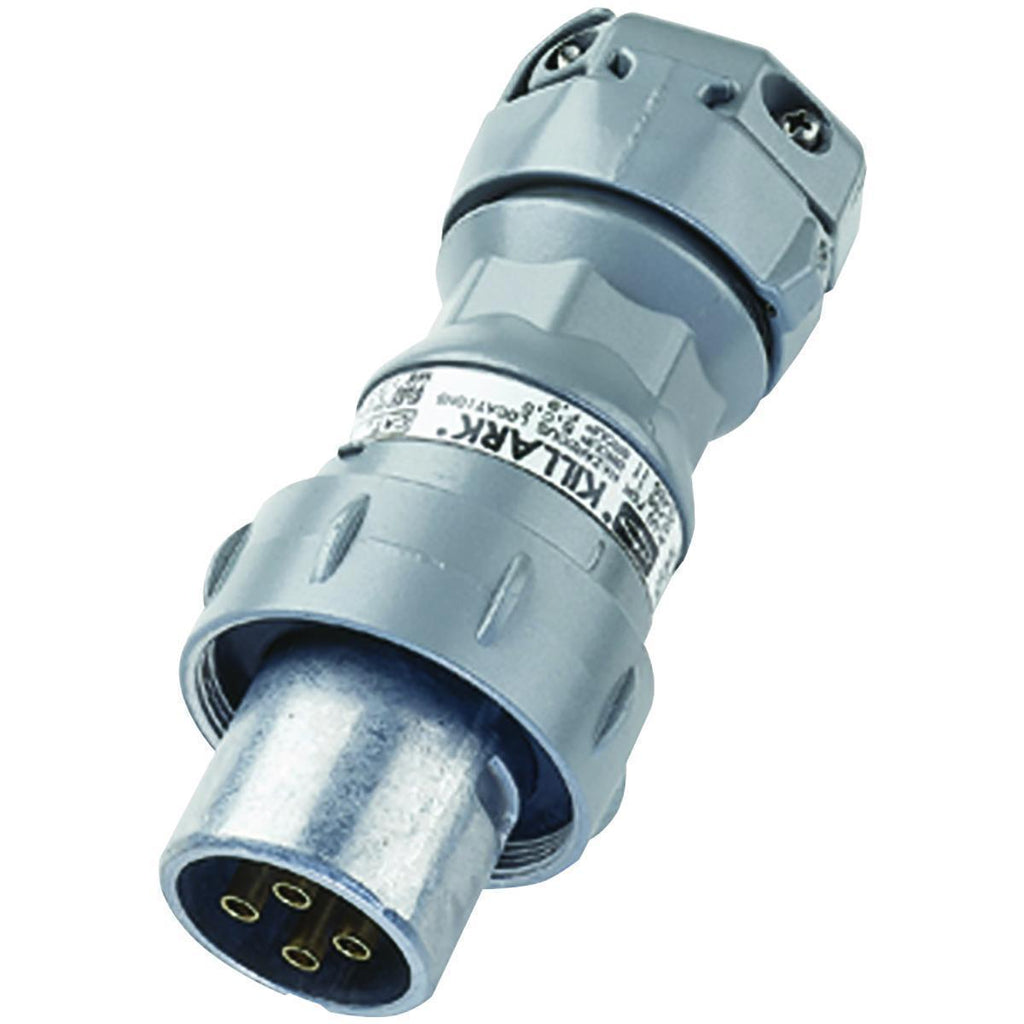

VP6485 - Hubbell VersaMate 60A 3 Pole 4 Wire Pin and Sleeve Plug, 600V AC/250V DC, Explosionproof, NEMA 3/4/4X/7BCD/9FG

VP6485

VP6485 is a Hubbell VersaMate 60A 3 Pole 4 Wire Pin and Sleeve Plug designed for heavy-duty industrial power distribution. This explosionproof plug features a copper-free aluminum body, brass contacts, and patented beryllium copper spring tensioner for reliable performance in demanding environments.Engineered for both fixed and portable electrical equipment, the VP6485 is suitable for indoor and outdoor use, including wet, cold, hosedown, hazardous, and corrosive applications. The octagonal body style provides a secure grip, while high-strength insulators and gripper rib terminals ensure safe and stable connections. The plug is compatible with Type P marine cable and achieves a Type 4X rating when mated with a VersaMate receptacle and locking ring.

• Amperage Rating: 60 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Number of Wires: 4
• Series: VersaMate
• Material: Copper-free aluminum body, brass contacts, beryllium copper spring tensioner
• Terminal Type: Screw
• NEMA Rating: 3/4/4X/7BCD/9FG
• Frequency Rating: 50-400 Hz
• Dimensions: 8.81 in L x 3.68 in W x 3.68 in H
• Style: Style II
• Application: Indoor/outdoor, hazardous, corrosive, marine

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VP6485
• Manufacturer : Hubbell
• Brand : LAPP
• Category : Wiring Devices
• Item Subcategory : Plugs Recep
• Family : VP Series
• Voltage : 600 /250 DC

Product Data

• UPC : 783936834481
• Dimensions : 9.3 in L x 3.6875 in W x 3.6875 in H
• Weight : 5.19
