Product Info
- Manufacturer:Killark
- Sub-Category:Pin & Sleeve
Description
VP3034

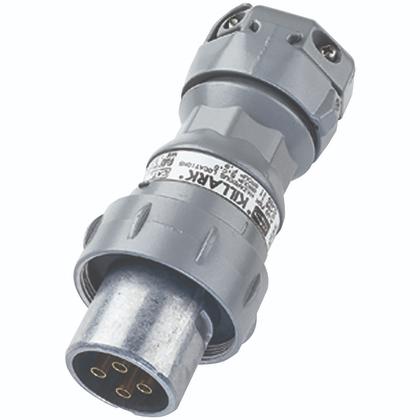

VP3034 is a Killark VersaMate 30 Amp 3 Pole 4 Wire Plug Assembly, Style II, designed for heavy-duty industrial applications.This plug assembly features a durable copper-free aluminum body with a baked powder epoxy/polyester finish and brass contacts with patented beryllium copper spring tensioners. It supports 30A amperage, 600 VAC at 50-400 Hz, and 250 VDC voltage ratings. The device includes an octagonal body style for a secure grip and is rated NEMA 4X when mated with the appropriate receptacle and locking ring. It is suitable for indoor and outdoor use in hazardous, wet, cold, and corrosive environments. The plug accepts 10-6 AWG regular stranding or 10-8 AWG extra flex conductors and features screw terminal connections with "increased safety" box terminals.
- Key Specifications
- Amperage: 30 A
- Voltage: 600 VAC, 250 VDC
- Poles: 4
- Wires: 3
- Style: II (AT Type)
- Material: Copper-free aluminum body, brass contacts
- Finish: Baked powder epoxy/polyester
- Terminal Type: Screw box terminals with gripper ribs
- Frequency: 50-400 Hz
- Dimensions: 6.68 in x 3 in x 3 in
- NEMA Rating: 4X when mated and locked
- Certifications: UL File E10757, CSA File LR111846
Specifications
- Part Number: VP3034
- Manufacturer : Killark
- Brand : Killark
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Family : VP Series
- Voltage : 600 /250 DC
Product Data
- UPC : 783936077871
- Dimensions : 6.68 in L x 3 in W x 3 in H
- Weight : 5.19
