VMVL-7-G-UNV1-UPLT - Eaton Lighting and controls LED Fixture

VMVL-7-G-UNV1-UPLT

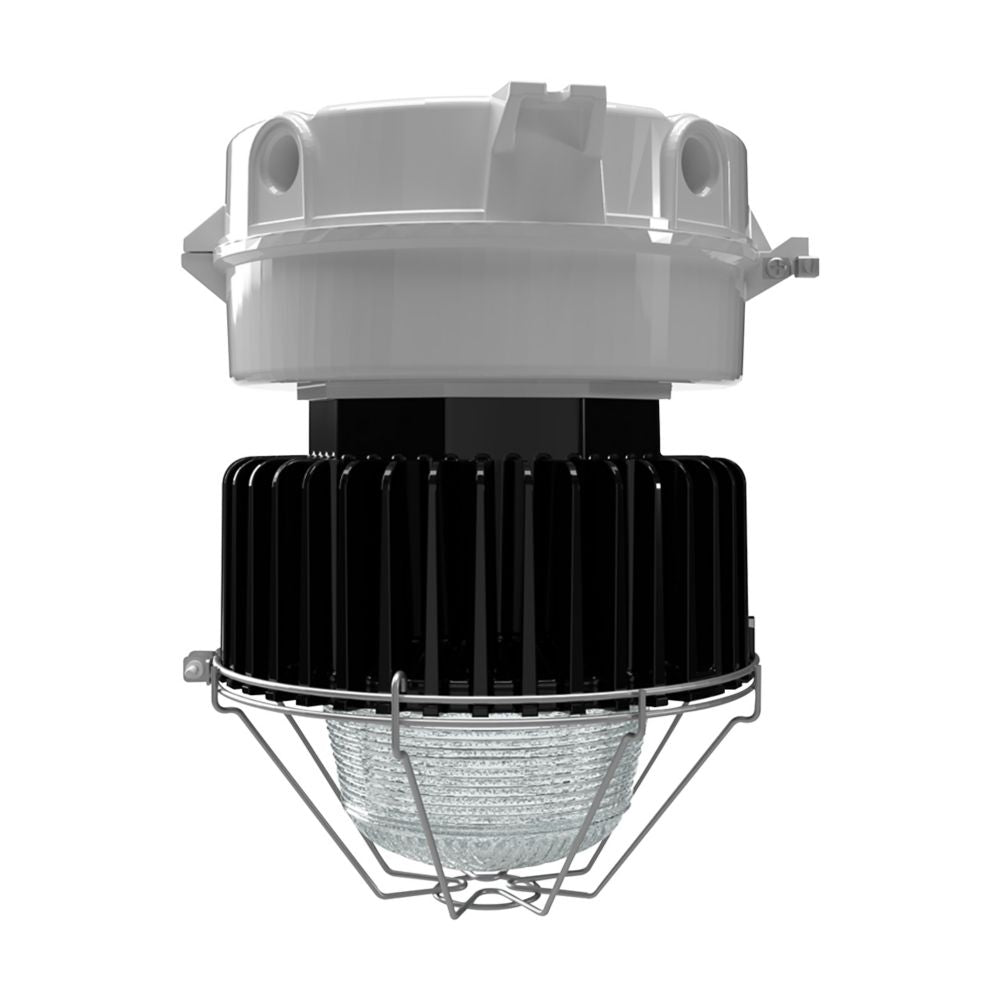

VMVL-7-G-UNV1-UPLT is an Eaton Crouse-Hinds Champ VMVL series LED light fixture designed for hazardous locations.This fixture delivers 7000 lumens at 59W with 127 lm/W efficiency, equivalent to 175W HID, featuring cool white color temperature, Type V uplight refractor lens, wire guard, and heat/impact resistant glass lens on die cast aluminum housing. It supports 100-277 Vac / 127-250 Vdc at 50/60 Hz, NEMA 4X IP66 rating, and dimmable driver with power factor >0.90.Key Specifications

• Part Number: VMVL-7-G-UNV1-UPLT
• Manufacturer: Eaton
• Lumens: 7000
• Wattage: 59 W
• Lumens per Watt: 127
• Voltage Rating: 100-277 Vac, 127-250 Vdc
• Frequency: 50/60 Hz
• Color Temperature: Cool white
• Equivalent: 175W HID
• NEMA Rating: 4X
• IP Rating: IP66
• Dimming: Dimmable driver
• Power Factor: > 0.90

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VMVL-7-G-UNV1-UPLT
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 100-277 Vac, 127-250 Vdc
• Nema Rating : 4X
• Watts : 59 W
• Hz : 50/60 Hz
• Dist Voltage : 100-277 Vac, 127-250 Vdc
• Material : Die cast aluminum
• NEC hazardous rating : Class I, Division 2 Class III Class II, Division 1 Class I, Zone 2
• Ingress protection (IP) ratings : IP66
• Lumens : 7000
• Lumens per watt : 127
• Color temperature : Cool white
• Mounting Method : No mounting module
• Equivalent luminaire : 175W HID
• Guard type : Wire
• Dimming : Dimmable driver
• Power factor : > 0.90
• Special features : Uplight refractor lens
• IECEx/ATEX hazardous rating : Zone 21

Product Data

• UPC : 662276977891
• Dimensions : 12 in x 20 in x 12 in (Length/Depth x Height x Width)
• Weight : 27 lb
