VMVL-7-D-R3-PC-UNV1-SS12-M3 - Eaton Lighting and controls 7000 Lumens

VMVL-7-D-R3-PC-UNV1-SS12-M3

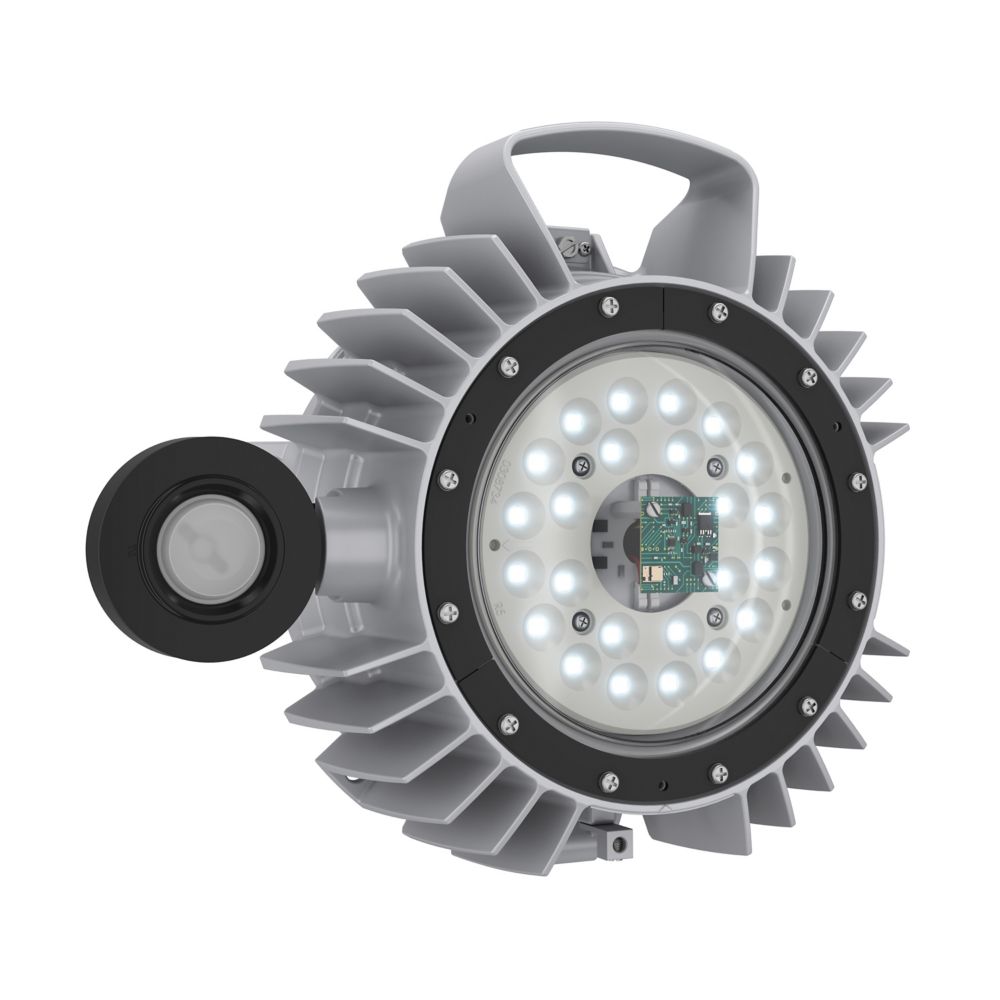

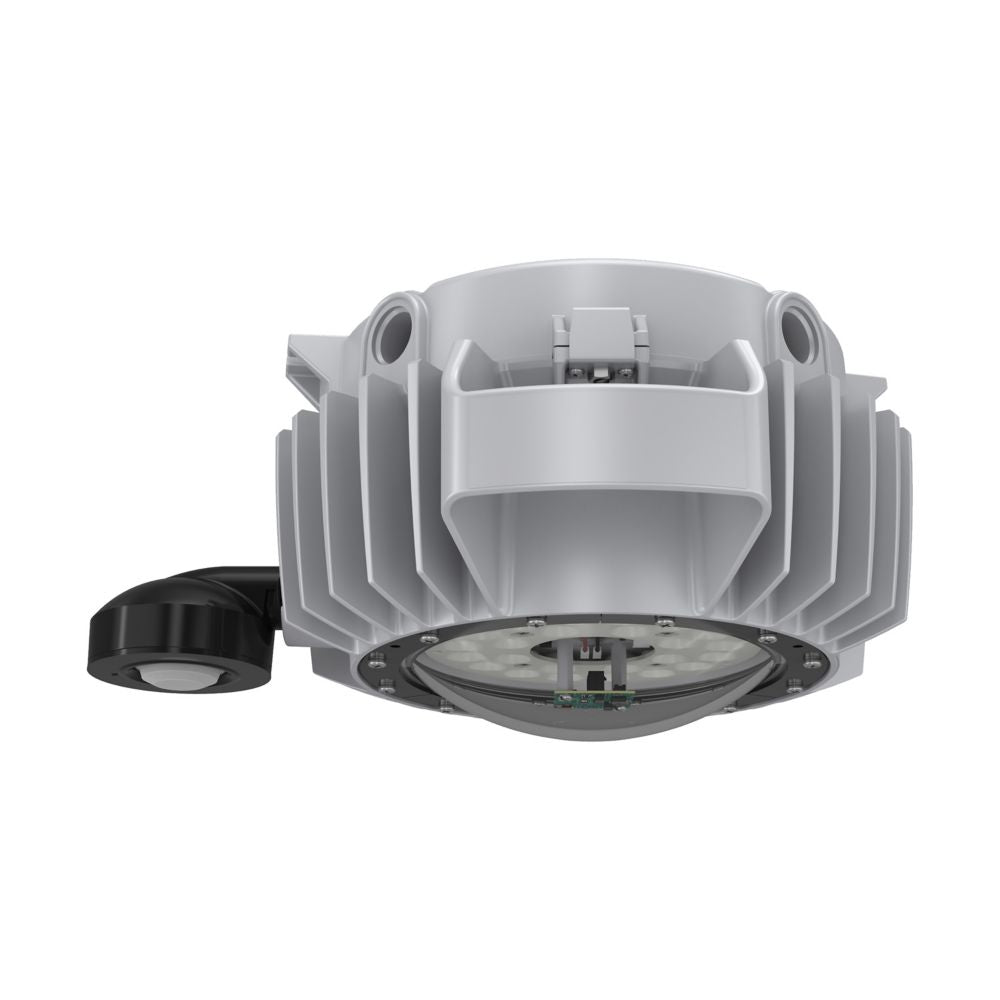

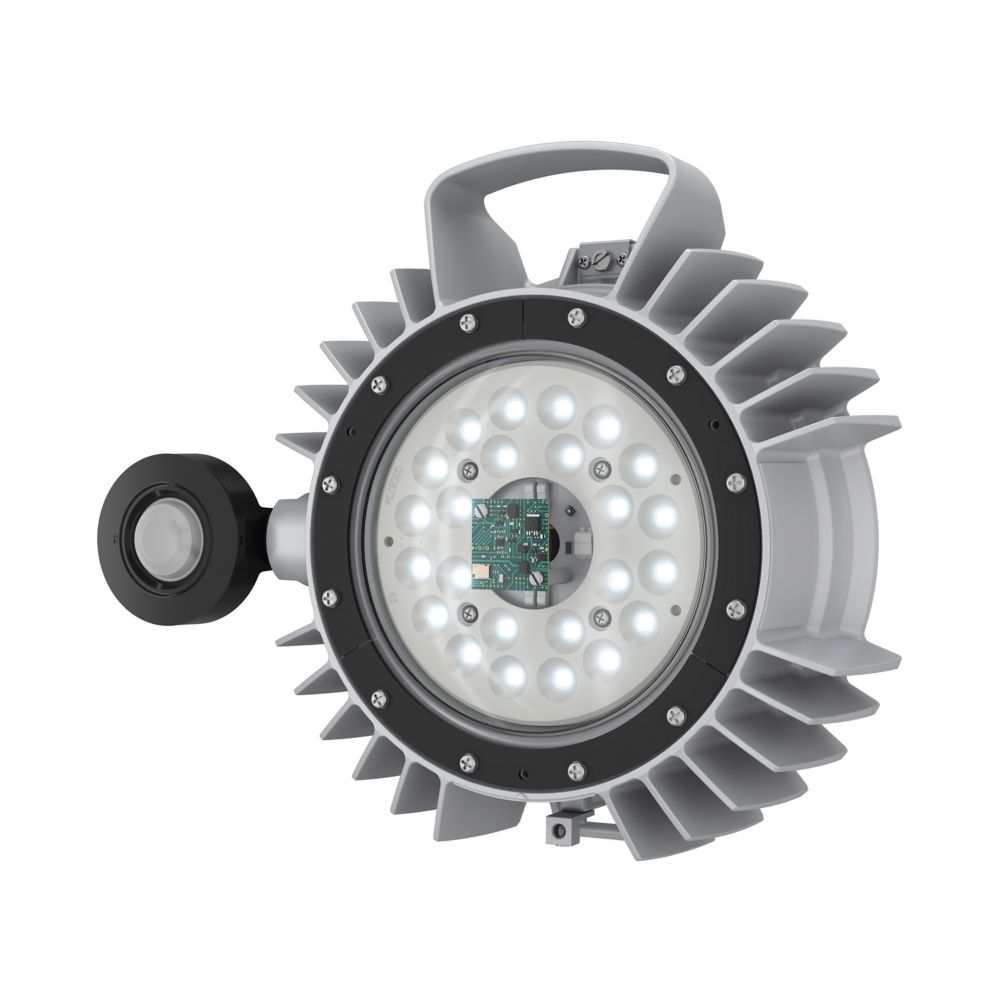

VMVL-7-D-R3-PC-UNV1-SS12-M3 is an Eaton Crouse-Hinds Champ VMVL series LED fixture designed for hazardous locations with intelligent lighting control.This dimmable LED light provides 7000 lumens at 136 lm/W, deep warm white color temperature, polycarbonate lens, Type III optical distribution, and operates on 100-277 VAC or 127-250 VDC at 50/60 Hz with approximately 50W power consumption. It features NEMA 4X and IP66 ratings, die cast aluminum housing, and is suitable for Class I Division 2, Class II Division 1 hazardous areas.Key Specifications

• Part Number: VMVL-7-D-R3-PC-UNV1-SS12-M3
• Manufacturer: Eaton
• Lumens: 7000
• Lumens per Watt: 136 lm/W
• Voltage: 100-277 VAC, 127-250 VDC
• Frequency: 50/60 Hz
• Wattage: 50W
• Color Temperature: Deep warm white
• Lens: Polycarbonate
• Optical Distribution: Type III
• Guard Type: No guard
• NEMA Rating: 4X
• IP Rating: IP66
• Dimming: Dimmable driver

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VMVL-7-D-R3-PC-UNV1-SS12-M3
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : High bay, low bay and industrial
• Voltage : 100-277 VAC, 127-250 VDC
• Nema Rating : 4X
• Watts : 50W
• Enclosure : NEMA 4X, IP66
• Hz : 50/60 Hz
• Material : Die cast aluminum
• NEC hazardous rating : Class I, Division 2 Class III Class I, Zone 2 Class II, Division 2
• Ingress protection (IP) ratings : IP66
• Lumens : 7000
• Lumens per watt : 136 lm/W
• Color temperature : Deep warm white
• Mounting Method : No mounting module
• Guard type : No guard
• Dimming : Dimmable driver
• Power factor : > 0.90
• Special features : Sensor with barrier board
• IECEx/ATEX hazardous rating : Zone 21

Product Data

• UPC : 662277164665
• Dimensions : 13.5 in x 9.5 in x 16 in (Length/Depth x Height x Width)
• Weight : 14.98 lb
