VMVL-3-R3A1-UNV1-M3 - Eaton Lighting and controls LED 3000 lumens

VMVL-3-R3A1-UNV1-M3

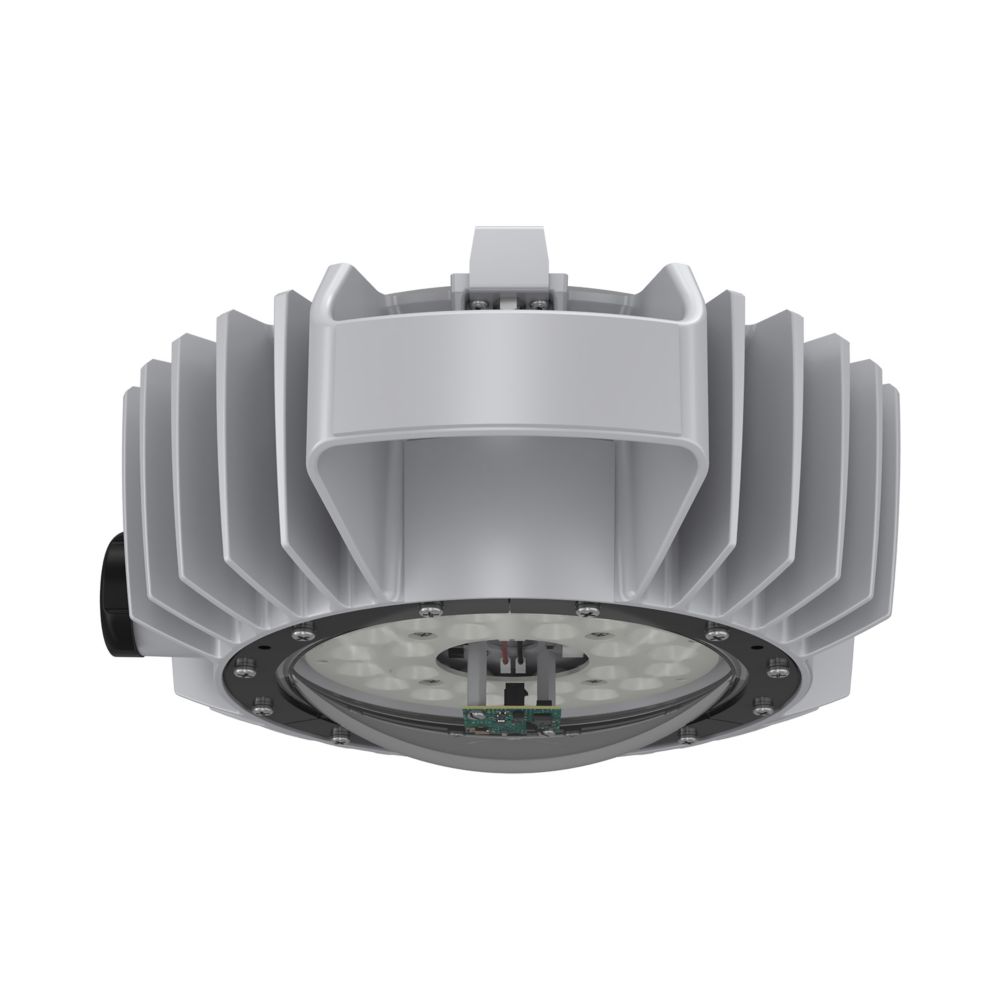

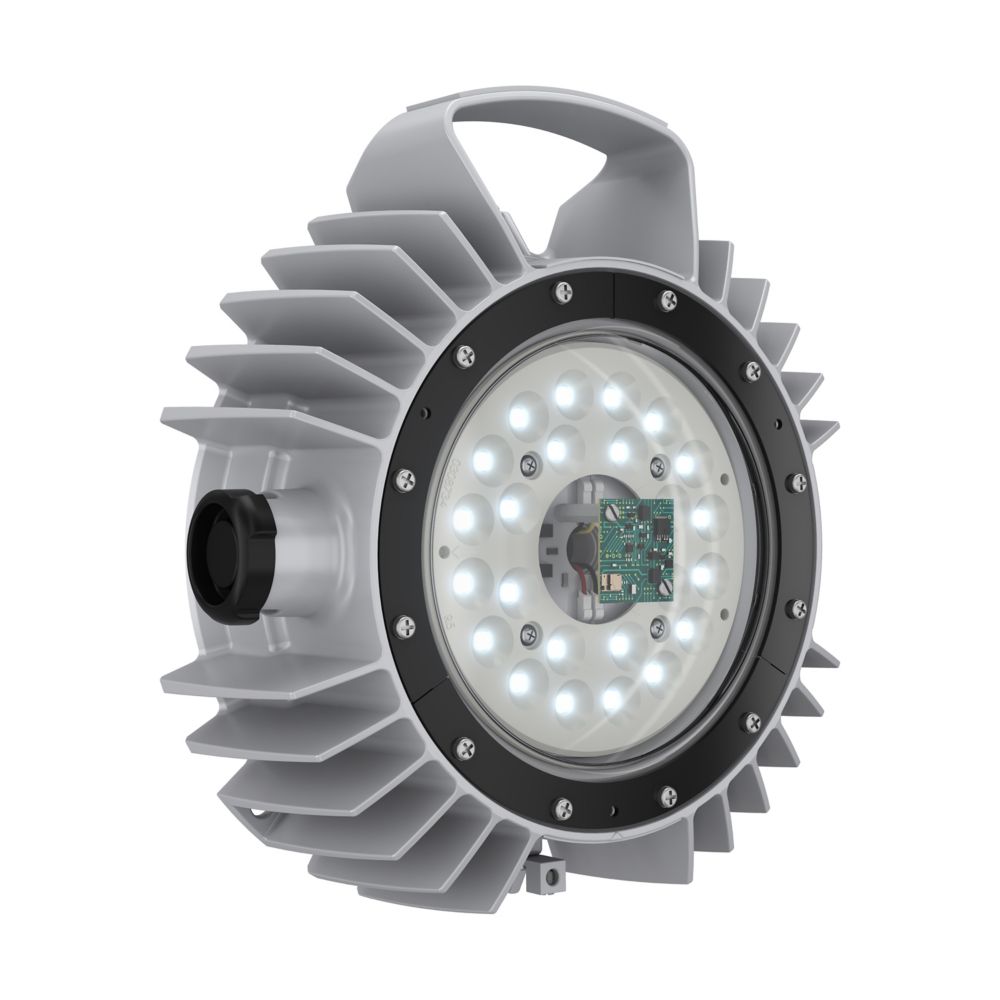

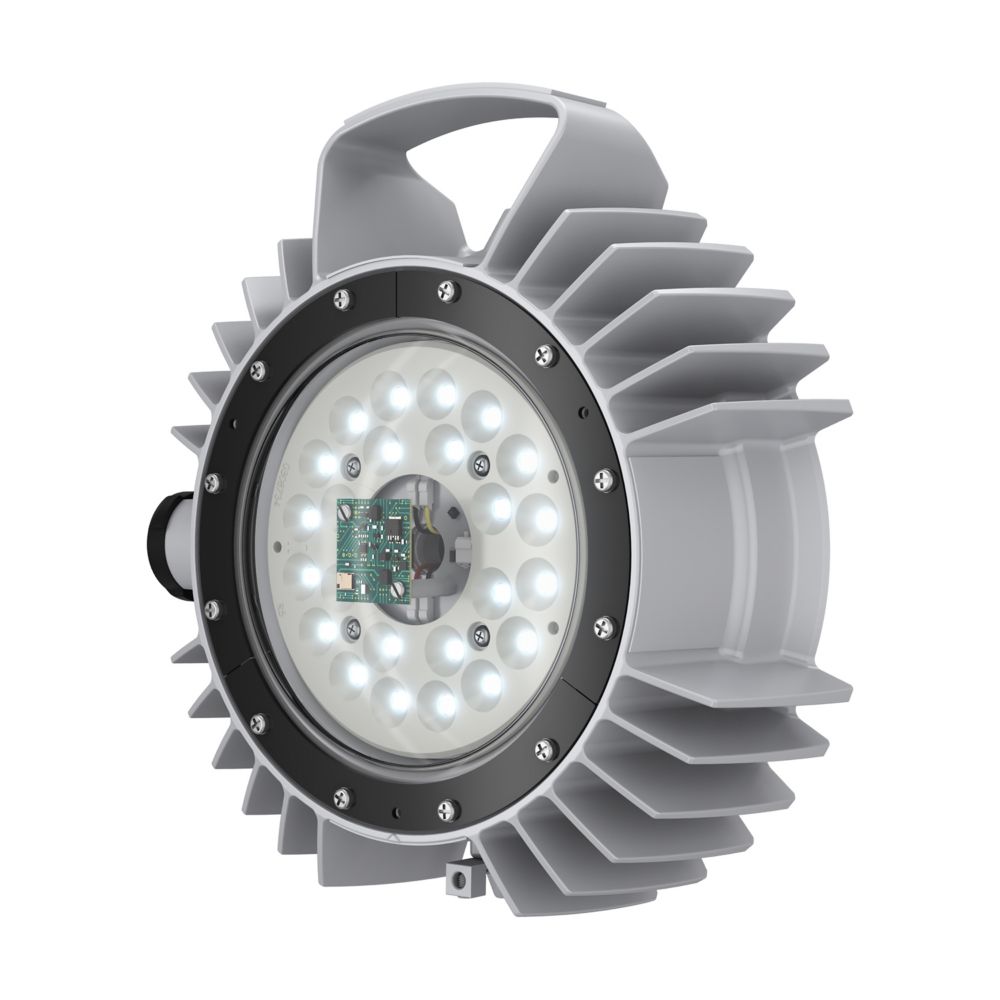

VMVL-3-R3A1-UNV1-M3 is an Eaton Crouse-Hinds series Champ intelligent LED light fixture designed for hazardous and classified locations. This cool white, dimmable fixture delivers 3000 lumens with exceptional efficiency and durability in demanding industrial environments. The fixture features a die cast aluminum construction with heat and impact resistant glass lens, Type III optical distribution, and NEMA 4X rating for superior corrosion resistance. It operates on 100-277 Vac or 127-250 Vdc at 50/60 Hz with a power factor exceeding 0.90. The intelligent dimmable driver enables flexible lighting control, while the compact 21W design achieves 137 lumens per watt for energy-efficient operation. Key Specifications

• Part Number: VMVL-3-R3A1-UNV1-M3
• Manufacturer: Eaton
• Lumens: 3000
• Wattage: 21 W
• Lumens per Watt: 137
• Voltage: 100-277 V AC, 127-250 V DC
• Frequency: 50/60 Hz
• Color Temperature: Cool white
• Dimming: Dimmable driver
• NEMA Rating: 4X
• IP Rating: IP66
• Material: Die cast aluminum
• Lens: Heat and impact resistant glass
• Optical Distribution: Type III
• Power Factor: Greater than 0.90
• Mounting: No mounting module
• Guard Type: No guard
• Hazard Classification: Class I Division 2, Class II Division 2, Class III, Zone 21

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VMVL-3-R3A1-UNV1-M3
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : High bay, low bay and industrial
• Voltage : 100-277 V AC, 127-250 V DC
• Nema Rating : 4X
• Watts : 21 W
• Hz : 50/60 Hz
• Material : Die cast aluminum
• NEC hazardous rating : Class I, Division 2 Class III Class I, Zone 2 Class II, Division 2
• Ingress protection (IP) ratings : IP66
• Lumens : 3000
• Lumens per watt : 137
• Color temperature : Cool white
• Mounting Method : No mounting module
• Guard type : No guard
• Dimming : Dimmable driver
• Power factor : Greater than 0.90
• IECEx/ATEX hazardous rating : Zone 21
• Color : Cool white

Product Data

• UPC : 662277165877
• Dimensions : 13 in x 8 in x 16 in (Length/Depth x Height x Width)
• Weight : 12 lb
