Product Info
- Manufacturer:Eaton
- Sub-Category:Highbay, lowbay and industrials
Description
VMVL-3-R3-UNV1-M2

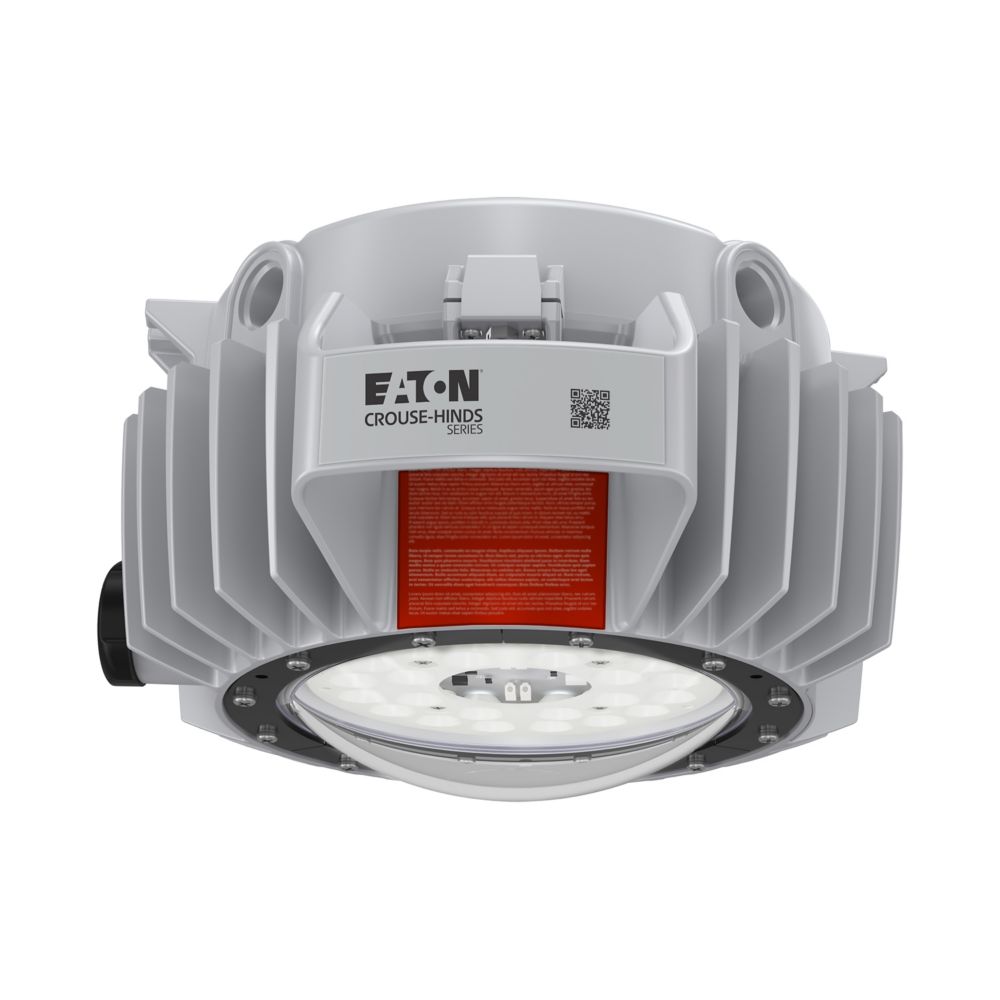

VMVL-3-R3-UNV1-M2 is an Eaton Crouse-Hinds series Champ VMVL LED light fixture designed for hazardous locations.This cool white LED fixture delivers 3000 lumens at 137 lm/W with Type III optics, die cast aluminum construction, and heat/impact resistant glass lens. It operates at 100-277 Vac/127-250 Vdc, 50/60 Hz, 21W, with NEMA 4X/IP66 rating for Class I Div 2, Zone 2, Class II Div 1, and Zone 21 environments.Key Specifications
- Part Number: VMVL-3-R3-UNV1-M2
- Manufacturer: Eaton
- Lumens: 3000
- Lumens per Watt: 137 lm/W
- Voltage: 100-277 Vac, 127-250 Vdc
- Frequency: 50/60 Hz
- Wattage: 21W
- Color Temperature: Cool white
- NEMA Rating: 4X
- IP Rating: IP66
- Optical Distribution: Type III
- Guard Type: No guard
Specifications
- Part Number: VMVL-3-R3-UNV1-M2
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Highbay, lowbay and industrials
- Voltage : 100-277 Vac, 127-250 Vdc
- Configuration : Type III
- Nema Rating : 4X
- Watts : 21W
- Hz : 50/60 Hz
- Protection : IP66
- Material : Die cast aluminum
- NEC hazardous rating : Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
- Lumens : 3000
- Lumens per watt : 137
- Color temperature : Cool white
- Mounting Method : No mounting module
- Guard type : No guard
- Power factor : > 0.90
Product Data
- UPC : 662277185783
- Dimensions : 13 in x 8 in x 16 in (Length/Depth x Height x Width)
- Weight : 12 lb
