VMVL-3-N-P-R1-G-UNV34-S903 - Eaton Lighting and controls LED 28W

VMVL-3-N-P-R1-G-UNV34-S903

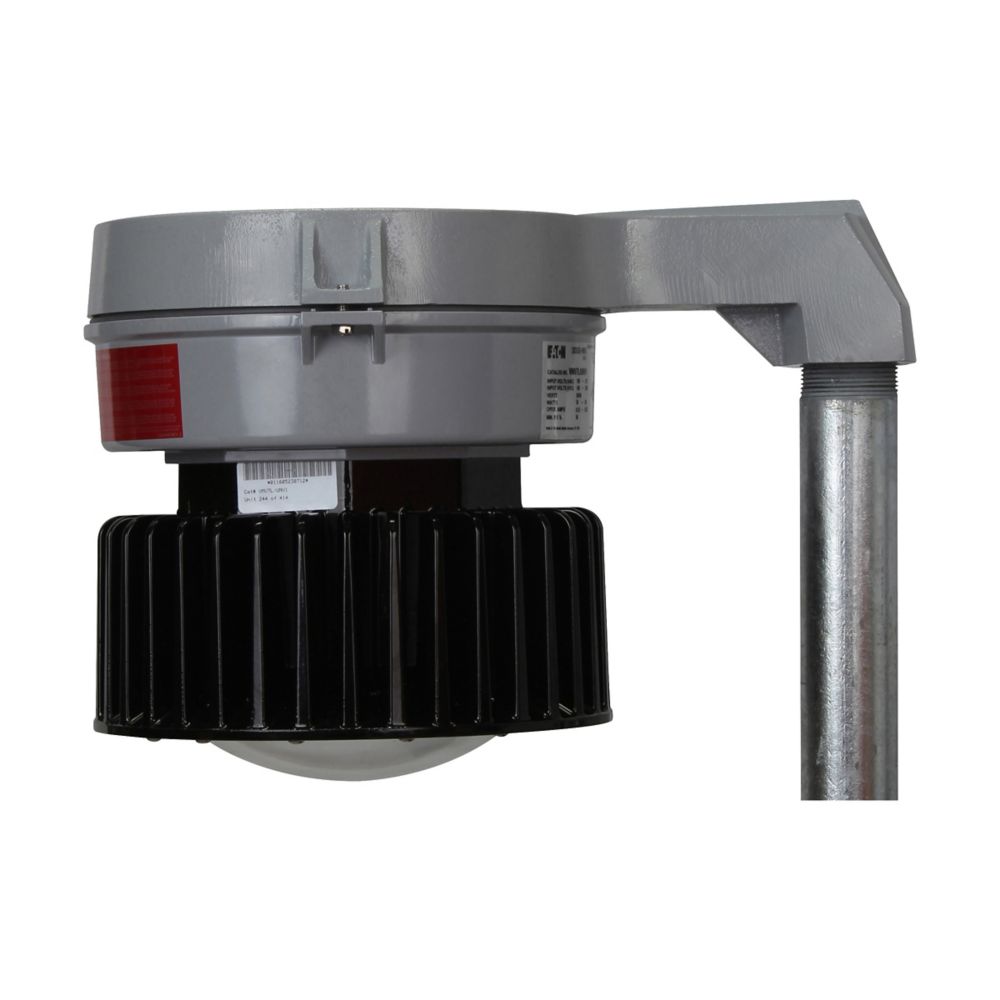

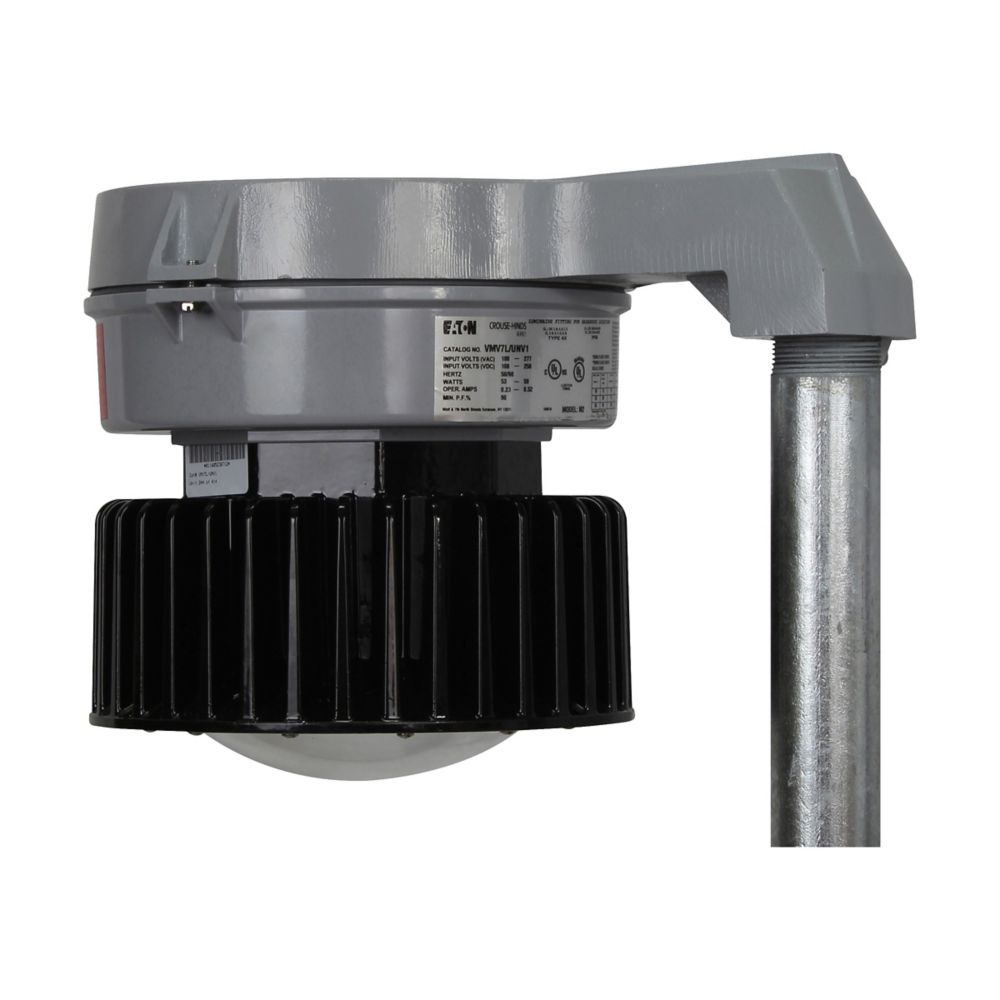

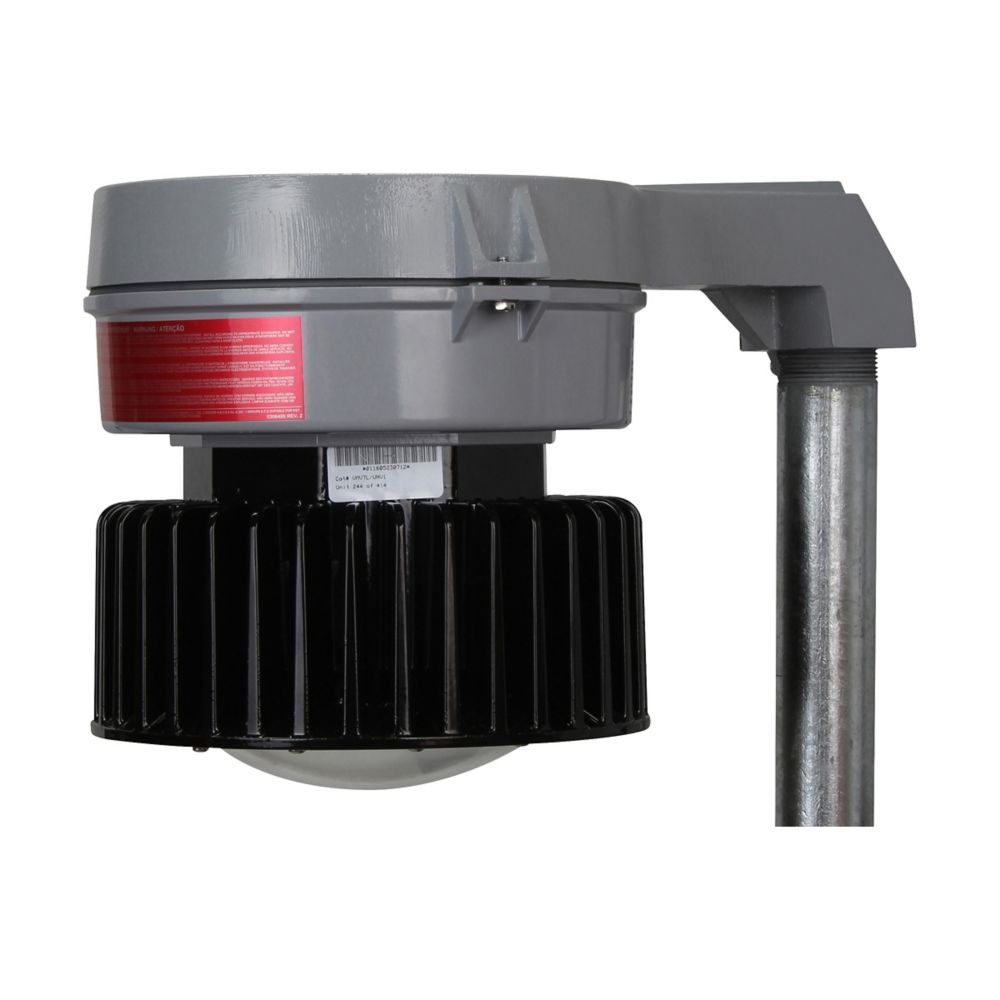

VMVL-3-N-P-R1-G-UNV34-S903 is an Eaton Crouse-Hinds series Champ VMVL LED fixture designed for hazardous classified locations with 3000 lumens output and 28W power consumption. This fixture delivers 70W HID equivalent performance with a power factor greater than 0.90 and operates at 347-480 Vac, 50/60 Hz. The unit features a Type I optical distribution, die cast aluminum construction with corrosion-resistant epoxy powder coating, and Type 4X/IP66 rating for wet locations and extreme environments. It includes a polycarbonate lens (S903 option) and is certified for Class I Division 2, Class I Zone 2, Class II Division 1, and Class III hazardous areas. Key Specifications

• Part Number: VMVL-3-N-P-R1-G-UNV34-S903
• Manufacturer: Eaton
• Voltage: 347-480 V
• Wattage: 28 W
• Lumens: 3000
• Lumens per Watt: 116 lm/W
• Frequency: 50/60 Hz
• Power Factor: > 0.90
• Optical Distribution: Type I
• Trade Size: 1-1/2 in
• Material: Die cast aluminum
• NEMA Rating: 4X
• IP Rating: IP66
• Lens Material: Heat and impact resistant glass
• Operating Ambient Temperature: -40°C to 65°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VMVL-3-N-P-R1-G-UNV34-S903
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 347-480 Vac
• Nema Rating : 4X
• Watts : 28 W
• Hz : 50/60 Hz
• Dist Voltage : 347-480 V
• Material : Die cast aluminum
• NEC hazardous rating : Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
• Ingress protection (IP) ratings : IP66
• Lumens : 3000
• Lumens per watt : 116 lm/W
• Color temperature : Cool white
• Mounting Method : No mounting module
• Equivalent luminaire : 70W HID
• Guard type : No guard
• Power factor : > 0.90
• Trade size : 1-1/2 in
• IECEx/ATEX hazardous rating : Zone 21
• Minimum Ambient Operating Temperature : -40°C
• Maximum Ambient Operating Temperature : 65°C

Product Data

• UPC : 662276968981
• Dimensions : 16.03 in x 11.1 in x 11.62 in (Length/Depth x Height x Width)
• Weight : 23.5 lb
