VMVL-17-R5N-G-UNV1-S903-M2 - Eaton Lighting and controls LED Fixture

VMVL-17-R5N-G-UNV1-S903-M2

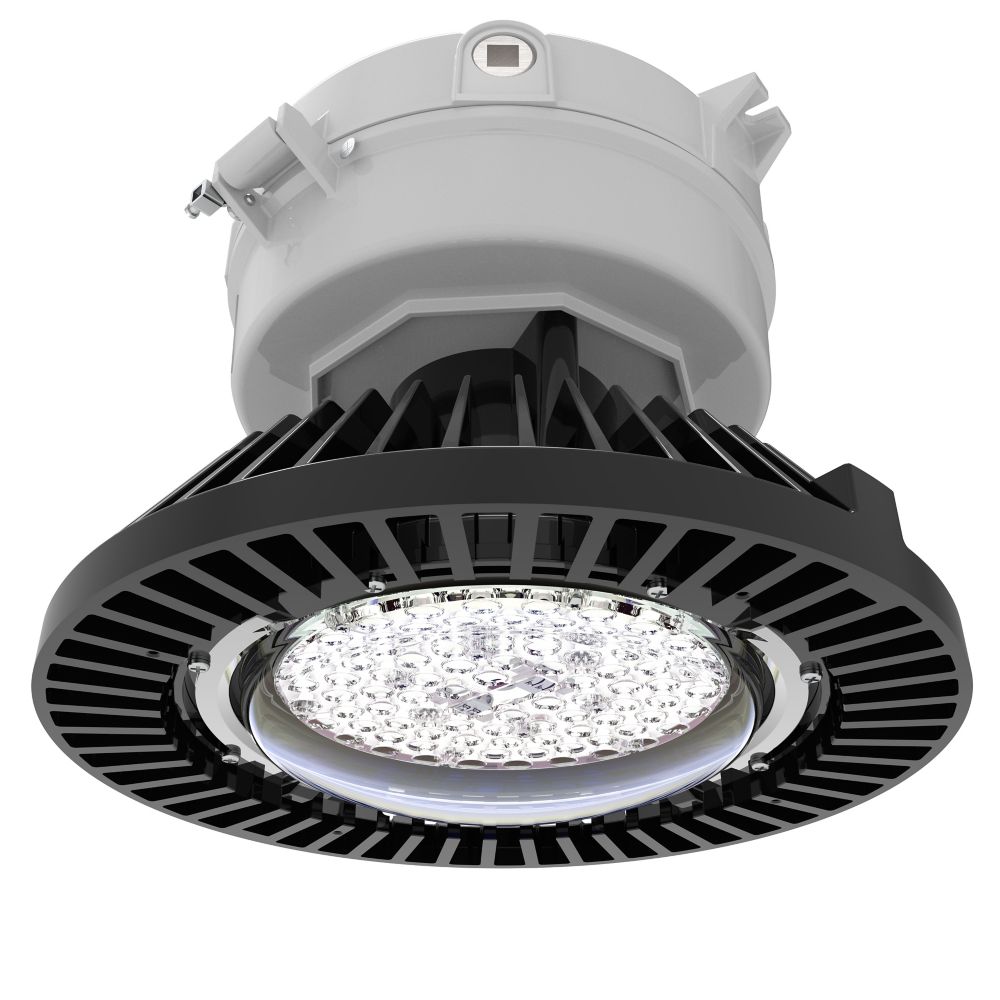

VMVL-17-R5N-G-UNV1-S903-M2 is an Eaton Crouse-Hinds Champ VMVL series LED light fixture designed for hazardous locations.This dimmable LED fixture features narrow optics, wire guard, polycarbonate lens, die cast aluminum construction, and is rated for 120-277 Vac, 108-250 Vdc operation at 50/60 Hz with 17000 lumens output.Key Specifications

• Part Number: VMVL-17-R5N-G-UNV1-S903-M2
• Manufacturer: Eaton
• Voltage rating: 120-277 Vac, 108-250 Vdc
• Frequency rating: 50/60 Hz
• Lumens: 17000
• Lumens per watt: 131
• Wattage: 134W
• Color temperature: Cool white
• Optical distribution: Narrow (R5N)
• Guard type: Wire
• Lens material: Polycarbonate
• Material: Die cast aluminum
• Dimming: Dimmable driver
• Power factor: 0.9
• NEMA Rating: 4X
• Ingress protection (IP) ratings: IP66

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VMVL-17-R5N-G-UNV1-S903-M2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 120-277 Vac, 108-250 Vdc
• Nema Rating : 4X
• Watts : 134W
• Enclosure : Die cast aluminum
• Hz : 50/60 Hz
• Material : Die cast aluminum
• NEC hazardous rating : Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
• Ingress protection (IP) ratings : IP66
• Lumens : 17000
• Lumens per watt : 131
• Color temperature : Cool white
• Mounting Method : No mounting module
• Guard type : Wire
• Dimming : Dimmable driver
• Power factor : 0.9
• IECEx/ATEX hazardous rating : Zone 21

Product Data

• UPC : 662277142021
• Dimensions : 14.17 in x 11.59 in x 14.17 in (Length/Depth x Height x Width)
• Weight : 22.73 lb
