VMVL-17-R5M-G-UNV1-S903-M2 - Eaton Crouse-Hinds Lighting and controls 17000lm 120-277V

VMVL-17-R5M-G-UNV1-S903-M2

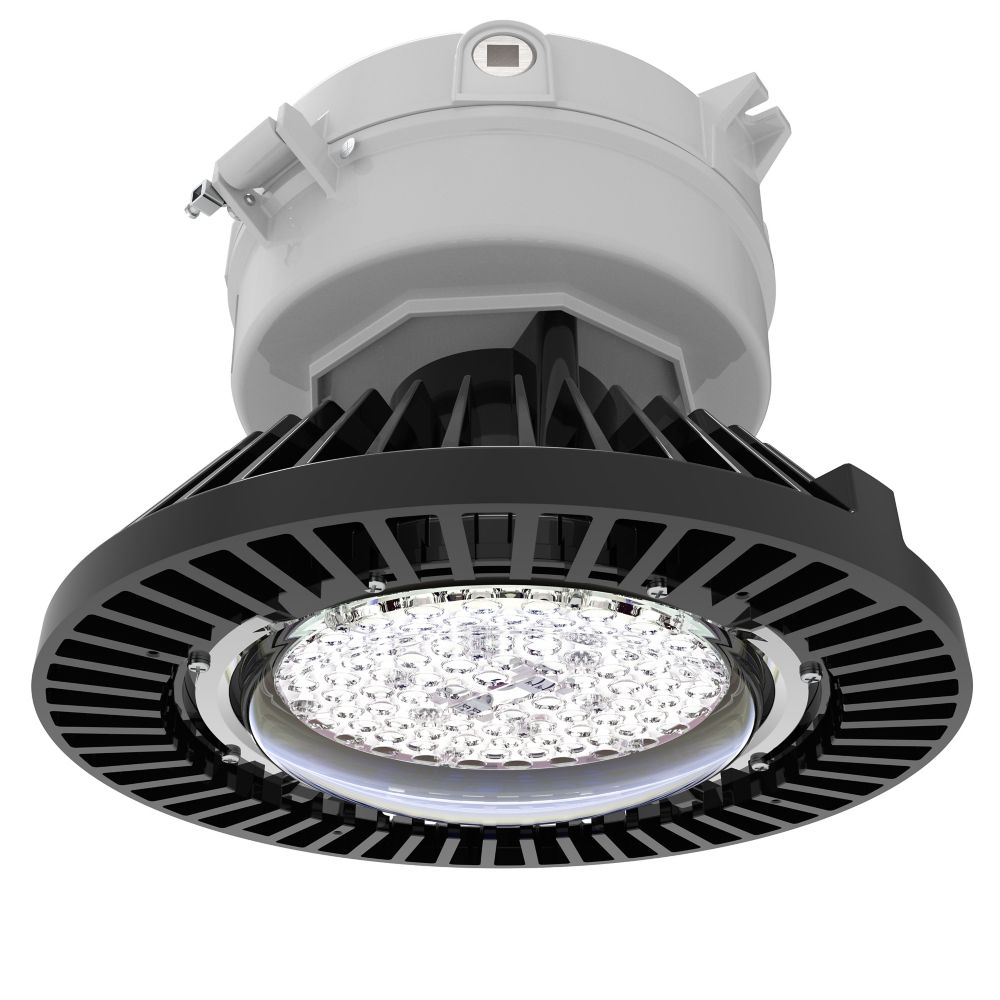

VMVL-17-R5M-G-UNV1-S903-M2 is an Eaton Crouse-Hinds Champ VMVL series LED light fixture designed for hazardous locations.This dimmable LED fixture features 17000 lumens at 131 lm/W, medium optics, wire guard, polycarbonate lens, die cast aluminum construction, NEMA 4X and IP66 ratings, for use in Class I Div 2, Zone 2, Class II Div 1 areas with 120-277 Vac / 108-250 Vdc operation at 50/60 Hz and 134W power draw.Key Specifications

• Part Number: VMVL-17-R5M-G-UNV1-S903-M2
• Manufacturer: Eaton Crouse-Hinds
• Lumens: 17000
• Lumens per Watt: 131
• Voltage: 120-277 Vac, 108-250 Vdc
• Frequency: 50/60 Hz
• Wattage: 134W
• Color Temperature: Cool white
• NEMA Rating: 4X
• IP Rating: IP66
• Dimming: Dimmable
• Power Factor: 0.9
• Guard Type: Wire
• Lens Material: Polycarbonate
• Material: Die cast aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VMVL-17-R5M-G-UNV1-S903-M2
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 120-277 Vac, 108-250 Vdc
• Nema Rating : 4X
• Watts : 134W
• Enclosure : Die cast aluminum
• Hz : 50/60 Hz
• Protection : IP66
• Dist Voltage : 120-277 Vac, 108-250 Vdc
• Material : Die cast aluminum
• NEC hazardous rating : Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
• Ingress protection (IP) ratings : IP66
• Lumens : 17000
• Lumens per watt : 131
• Color temperature : Cool white
• Mounting Method : No mounting module
• Guard type : Wire
• Dimming : Dimmable
• Power factor : 0.9
• IECEx/ATEX hazardous rating : Zone 21

Product Data

• UPC : 662277141987
• Dimensions : 14.17 in x 11.59 in x 14.17 in (Length/Depth x Height x Width)
• Weight : 22.73 lb
