Product Info
- Manufacturer:Eaton
- Sub-Category:Highbay, lowbay and industrials
Description
VMVL-11-2B-G-UNV1

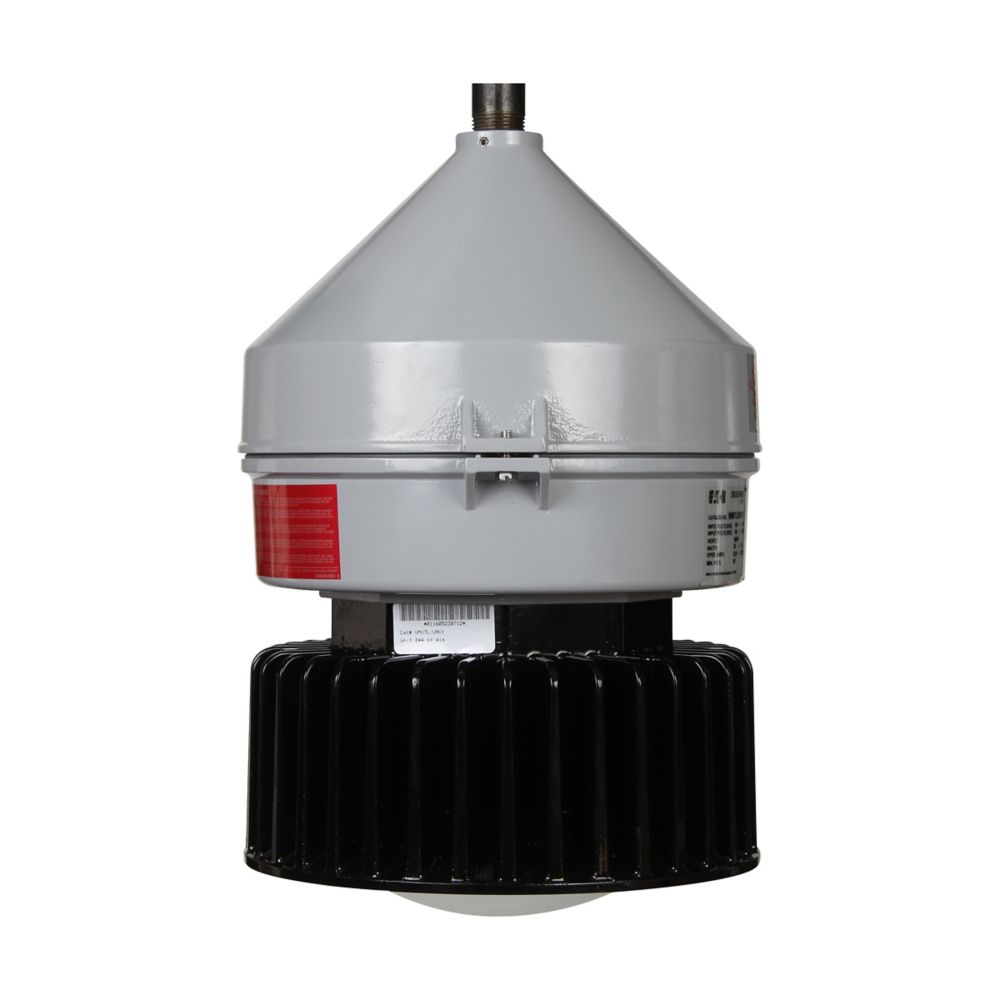

VMVL-11-2B-G-UNV1 is an Eaton Crouse-Hinds Champ series VMVL LED light fixture designed for hazardous locations.This Type 4X rated fixture delivers 11000 lumens at 92W with cool white color temperature, wire guard, glass lens, and cone pendant mounting, suitable for NEC/CEC/IEC classified areas including Class I Division 2 and Zone 21.Key Specifications
- Part Number: VMVL-11-2B-G-UNV1
- Manufacturer: Eaton
- Lumens: 11000
- Voltage: 100-277 Vac, 127-250 Vdc
- Wattage: 92W
- Frequency: 50/60 Hz
- Color Temperature: Cool white
- NEMA Rating: 4X
- IP Rating: IP66
- Equivalent: 320W HID
- Mounting: Cone pendant
- Guard Type: Wire
Specifications
- Part Number: VMVL-11-2B-G-UNV1
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Highbay, lowbay and industrials
- Voltage : 100-277 Vac, 127-250 Vdc
- Nema Rating : 4X
- Watts : 92W
- Hz : 50/60 Hz
- Protection : IP66
- Material : Die cast aluminum
- NEC hazardous rating : Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
- Ingress protection (IP) ratings : IP66
- Lumens : 11000
- Lumens per watt : 122 lm/W
- Color temperature : Cool white
- Mounting Method : Cone pendant
- Equivalent luminaire : 320W HID
- Guard type : Wire
- Power factor : > 0.90
- Trade size : 100-240 Vac, 127-250 Vdc
- IECEx/ATEX hazardous rating : Zone 21
Product Data
- UPC : 662276899216
- Dimensions : 11.62 in x 15.22 in x 11.62 in (Length/Depth x Height x Width)
- Weight : 23.2 lb
