Description
VM610CJZ1

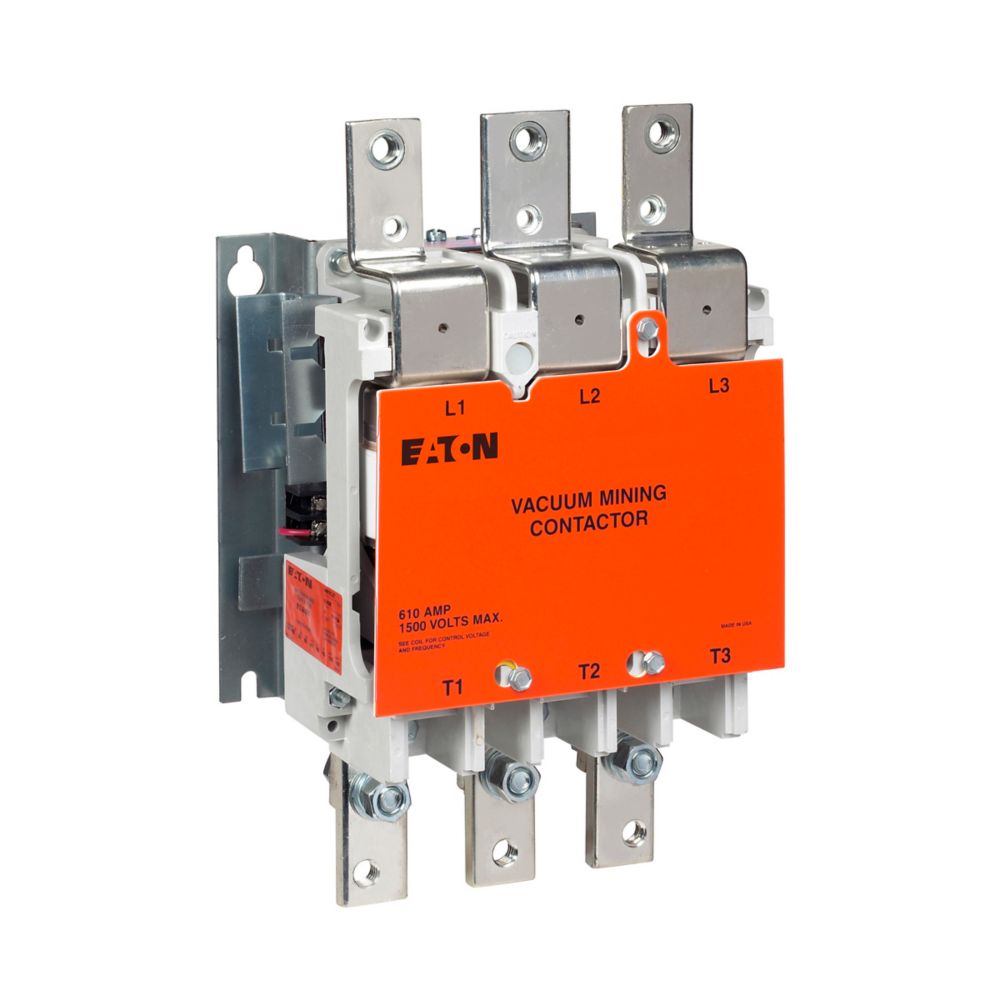

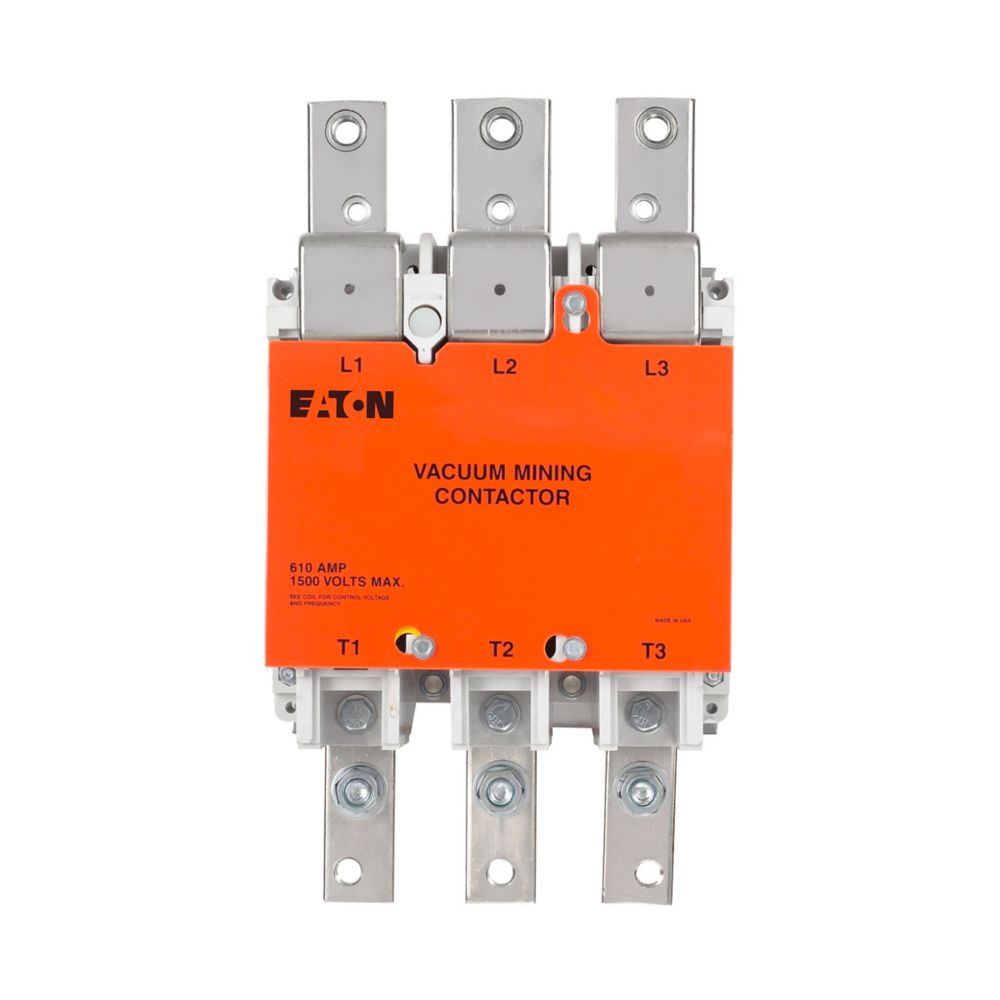

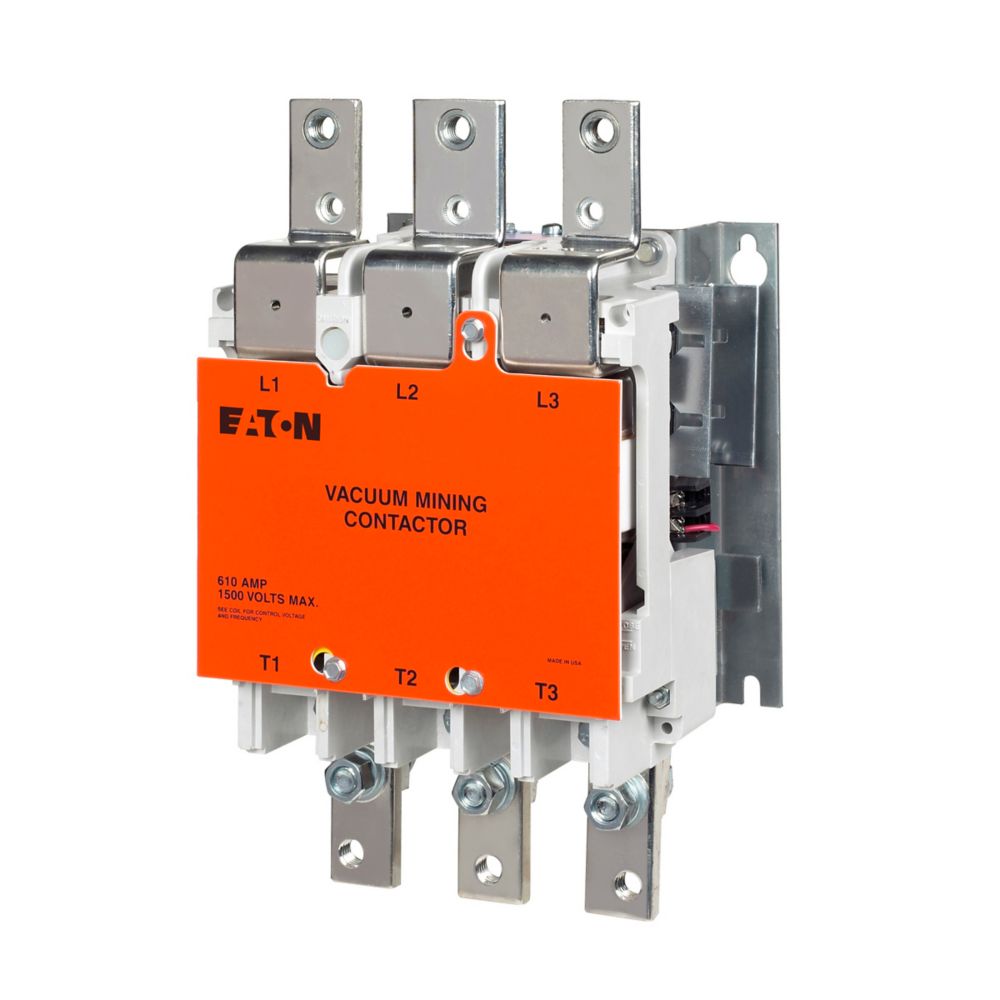

VM610CJZ1 is a mining rated, non-reversing vacuum contactor from Eaton designed for motor control applications.VM610CJZ1 features a 610 ampere rating, 120 VAC coil voltage, and 3 poles for controlling three-phase AC motors. It is built to handle high voltage and current with a vacuum bottle enclosure for each contact, enhancing durability and reducing arc damage. This contactor supports full voltage operation up to 1500 VAC and is suitable for harsh mining environments.
- Key Specifications
- Amperage: 610 Amps
- Coil Voltage: 110/120 VAC
- Poles: 3
- Mounting Type: Open Style (No Enclosure)
- Interrupt Rating: 1500 VAC Full Voltage
- Type: Non-Reversing Vacuum Contactor
- Application: Mining Rated
- Frequency: 50/60 Hz
- Motor Voltage: Up to 120 VAC coil, controls 3-phase motors
- Certifications: Mining Rated
Additional Information
This Mining Rated Contactor includes a 120 VAC coil.
Specifications
- Part Number: VM610CJZ1
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 120
- Amperage : 610
Product Data
- UPC : 78211410906
- GTIN : 00782114109069
- Country of Origin : United States
- Dimensions : 4.6 in x 2.7 in x 5.9 in (Length/Depth x Height x Width)
- Weight : 0.35
- Certification : UL Listed
