Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
VL469N

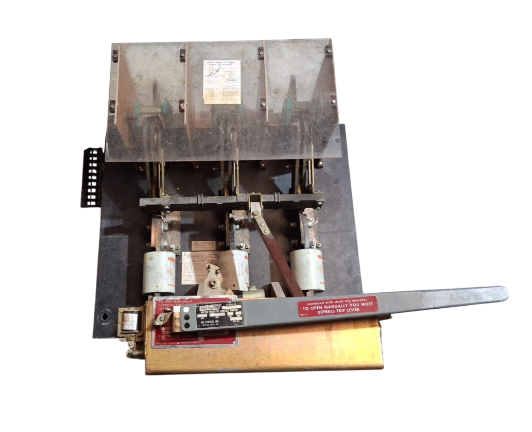

VL469N is a Boltswitch 1600 Amp, 600 Volt, 3 pole bolted pressure switch designed for industrial power distribution applications.This VL type bolted pressure switch features a NEMA 1 enclosure rating and is rated for 3-phase operation. It is engineered to provide reliable switching with a bolted pressure contact mechanism, suitable for use in dead front switchboards. The switch supports up to 1600 amps and 600 volts AC, with a 3-pole configuration for three-phase systems. It is built to meet UL 977 standards as a fused power circuit device and is compatible with Class L fuses (fuses sold separately).
- Key Specifications
- Amperage: 1600 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Phase: 3
- Type: Bolted Pressure Switch
- Series: VL Type
- Enclosure Rating: NEMA 1
- Fuse Compatibility: Class L Fuses (sold separately)
- UL Listed: UL 977 Fused Power Circuit Device
- Part Number: VL469N
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : VL Series
- Type : VL
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : THLC
- Weight : 250
