Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
VL469-9

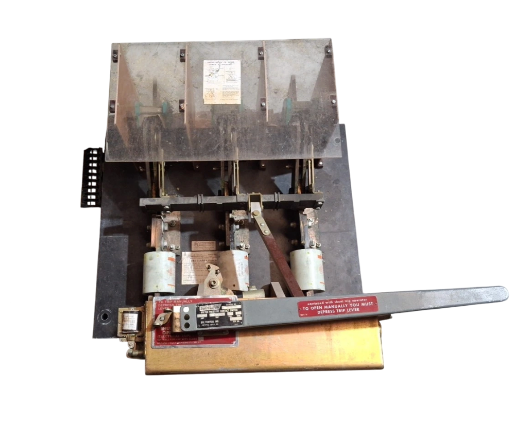

VL469-9 is a 4 pole, 3 phase bolted pressure switch from Boltswitch designed for 1600 Amp and 600 Volt applications with a NEMA 1 rating.The Boltswitch VL469-9 features a VL series design suitable for heavy-duty power distribution. It is a fusible switch with a 4-wire configuration, providing reliable switching and protection in industrial electrical systems. The switch supports Class L fuses and has an interrupt rating (AIC) of 200kA. It is an open-type switch intended for top feed mounting.
- Key Specifications
- Amperage: 1600 Amps
- Voltage: 600 Volts
- Poles: 4 Pole, 4 Wire
- Series/Frame: VL Series
- Mounting Type: Top Feed
- Interrupt Rating (AIC): 200kA
- NEMA Rating: 1
- Switch Type: Bolted Pressure Switch (Fusible)
- Fuse Class: Class L
Specifications
- Part Number: VL469-9
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : VL Series
- Type : VL
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 4
- AIC rating : 200kA@600V
- Fuse Class : L
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : TED
Product Data
- Weight : 250
