Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
VL367G6

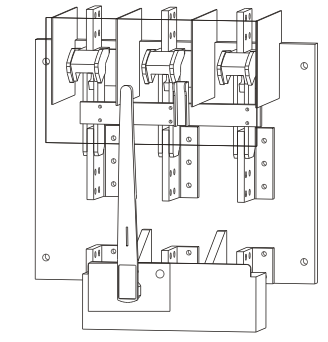

VL367G6 is a heavy-duty fusible bolted pressure switch designed for industrial power distribution applications requiring reliable disconnect and protection.Boltswitch VL367G6 is a 3-phase, 3-pole bolted pressure switch rated for 480Y/277V and 800 amperes. This VL Series switch features a NEMA 1 enclosure and is UL listed as a fused power circuit device under UL 977 (File No. E44498). The switch is manually operated with bolt-in racking configuration and includes provisions for up to three padlocks for safety lockout. It is rated for 200,000 ampere fault current and is suitable for mounting in dead-front switchboards.
- Amperage Rating: 800A
- Voltage Rating: 480Y/277V
- Poles: 3
- Phase: 3
- Interrupt Rating: 200,000A
- Enclosure Rating: NEMA 1
- Mounting Type: Bolt-In
- Operating Mechanism: Manually Operated
- Series: VL
- Certification: UL 977 Listed
- Weight: 250 lb
Specifications
- Part Number: VL367G6
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : VL Series
- Type : VL
- Voltage : 480
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : TB
Product Data
- Weight : 250
