Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
VL367G5

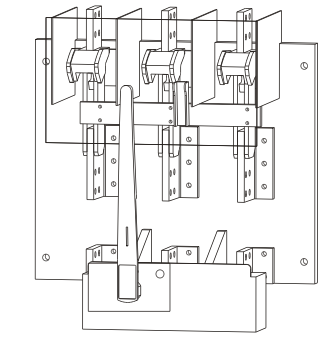

VL367G5 is a heavy-duty fusible bolted pressure switch designed for industrial power distribution applications. This 3-pole switch provides reliable circuit isolation and protection for 480V AC systems with an 800A continuous current rating. The rugged NEMA 1 enclosure ensures durability in demanding environments. The VL367G5 features a bolted pressure contact design for secure connections and is suitable for use in dead-front switchboards. It is rated for 200kA interrupting capacity at 480V, making it ideal for high fault current circuits. The switch is part of the VL series and is designed for top feed mounting.
- 800A continuous current rating
- 480V AC voltage rating
- 3-pole configuration
- Fusible design
- Bolted pressure contact
- NEMA 1 enclosure
- 200kA interrupting capacity at 480V
- Top feed mounting
- VL series frame
- UL listed as fused power circuit device
Specifications
- Part Number: VL367G5
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : VL Series
- Type : VL
- Voltage : 480
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : TB
Product Data
- Weight : 250
