Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
VL367G3

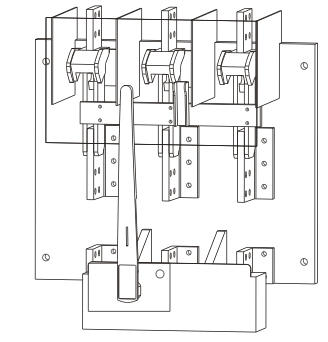

VL367G3 is a 3-phase, 3-pole, 800 amp fusible bolted pressure switch designed for 208Y/120V applications. This switch features an integral ground fault protection and is built for reliable performance in demanding environments. The VL367G3 is part of the Boltswitch VL series, offering a robust design for top feed mounting. It is suitable for use in dead front switchboards and provides secure, bolted pressure connections for stable operation. The switch is equipped with provisions for up to three padlocks and is rated for high fault current applications.
- 800 Amp rating
- 3 Pole configuration
- 208Y/120V voltage rating
- 3 Phase
- Top feed mounting
- Integral ground fault protection
- Bolted pressure switch type
- UL listed as fused power circuit device
- Series VL
- Provisions for up to three padlocks
- High fault current rating
- Dead front switchboard compatible
Specifications
- Part Number: VL367G3
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : VL Series
- Type : VL
- Voltage : 208
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@208V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
Product Data
- Weight : 250
