Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
VL3612G8MST

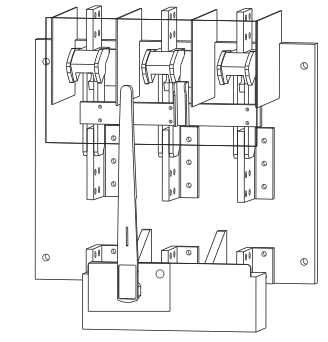

VL3612G8MST is a 3 pole, 3 phase bolted pressure switch designed for high current applications up to 3000 amps at 600 volts.
This Boltswitch VL3612G8MST model features a VL series frame with fusible protection and a motorized shunt trip operator. It is rated for 3000 amps continuous current and 600 volts AC, suitable for use in switchboards with a NEMA 1 enclosure rating. The switch provides bolted pressure contacts for reliable operation and includes provisions for up to three padlocks for enhanced safety. It has an interrupt rating consistent with the VL series switches and is UL listed as a fused power circuit device under file E44498.
- Key Specifications
- Amperage: 3000 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Series/Frame: VL Type
- Mounting Type: Open type for dead front switchboards
- Fusible: Yes
- Operator: Motorized Shunt Trip (suffix MST)
- NEMA Rating: 1
- UL Listed: Yes, UL977 under file E44498
- Part Number: VL3612G8MST
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : VL Series
- Type : VL
- Voltage : 600
- Amperage : 3000
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : SGPA
- Weight : 250
