Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
VL3611G8

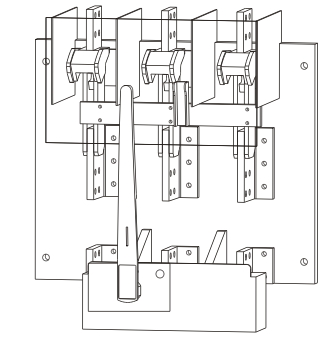

VL3611G8 is a Boltswitch 3 phase, 3 pole bolted pressure switch rated for 2500 amps and 600 volts with a NEMA 1 enclosure.VL3611G8 features a robust VL type design suitable for high current applications, providing reliable bolted pressure contact switching with a 2500 amp rating and 600 volt capacity. It is designed for use in dead front switchboards and offers a NEMA 1 rating for indoor environments.
- Amperage: 2500 Amp
- Voltage: 600 Volt
- Poles: 3 Pole
- Phase: 3 Phase
- Type: Bolted Pressure Switch
- Series/Frame: VL Type
- Mounting: Open type for dead front switchboards
- NEMA Rating: 1
Specifications
- Part Number: VL3611G8
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : VL Series
- Type : VL
- Voltage : 600
- Amperage : 2500
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : THJK
Product Data
- Weight : 250
