Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
VL2612

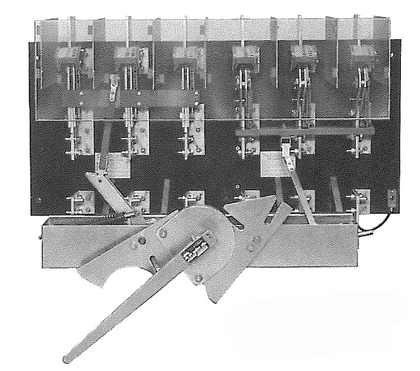

VL2612 is a Boltswitch 2-pole bolted pressure switch rated for 3000 amps and 600 volts with a NEMA 1 enclosure rating.
This VL type switch is designed for single-phase applications and provides reliable bolted pressure contact switching. It features a 2-pole configuration suitable for high current loads up to 3000 amperes at 600 volts. The switch is rated for a 200,000 AIC fault current and is UL listed as a fused power circuit device. It is intended for mounting in dead front switchboards and offers provisions for up to three padlocks for safety and lockout/tagout compliance.
- Key Specifications
- Amperage: 3000 Amps
- Voltage: 600 Volts
- Poles: 2
- Phase: Single-phase
- Type: Bolted Pressure Switch (VL Series)
- NEMA Rating: 1
- Interrupt Rating: 200,000 AIC
- UL Listed: Yes, UL977 under file E44498
- Mounting: Open type for dead front switchboards
- Padlock Provisions: Up to three padlocks
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: VL2612
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : VL Series
- Type : VL
- Voltage : 600
- Amperage : 3000
- Phase : 1
- Poles : 2
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : TFK
Product Data
- Weight : 250
