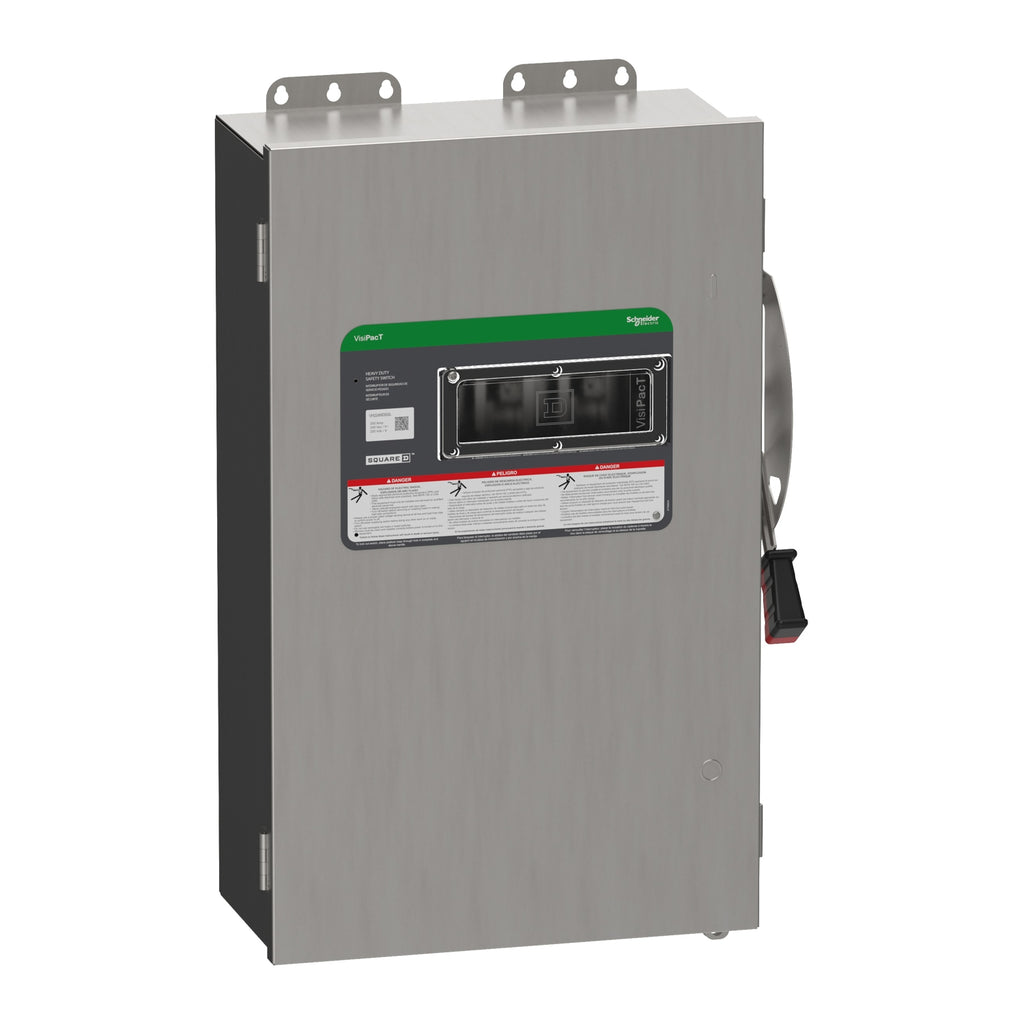

VHU364SSGL - Square D 200A 600V 3P Non-Fusible Safety Switch Heavy Duty NEMA 4X Stainless Steel

VHU364SSGL

VHU364SSGL is a heavy duty non-fusible safety switch designed for reliable service entrance and industrial applications. This Square D switch features a 3-pole, 200A, 600VAC/VDC rating and is constructed with a 304 stainless steel enclosure for durability in demanding environments. It includes dual cover interlock and ground lugs for added safety and compliance. Engineered for surface mounting, the VHU364SSGL is UL listed and meets RoHS standards. Its robust design supports wire sizes from AWG 6 to 250KCmil (copper or aluminum) and is suitable for both indoor and outdoor use. The switch is non-fusible, single throw, and features a single configuration for straightforward installation.

• Part Number: VHU364SSGL
• Manufacturer: Square D
• Amperage: 200A
• Voltage: 600VAC/VDC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 100kA
• Series/Frame: VH
• Configuration: Single Throw
• Enclosure Material: 304 Stainless Steel
• Certifications: UL Listed, RoHS
• Wire Gauge: AWG 6 to 250KCmil (Copper/Aluminum)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VHU364SSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 600 AC/DC
• Amperage : 200
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589497
• GTIN : 03606485894973
• Country of Origin : United States
• Dimensions : 28.9 in (734.06 mm) x 17.474 in (443.840 mm) x 8.937 in (227.000 mm) (Height x Width x Depth)
• Weight : 57.1 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EU RoHS, UL listed file E2875
