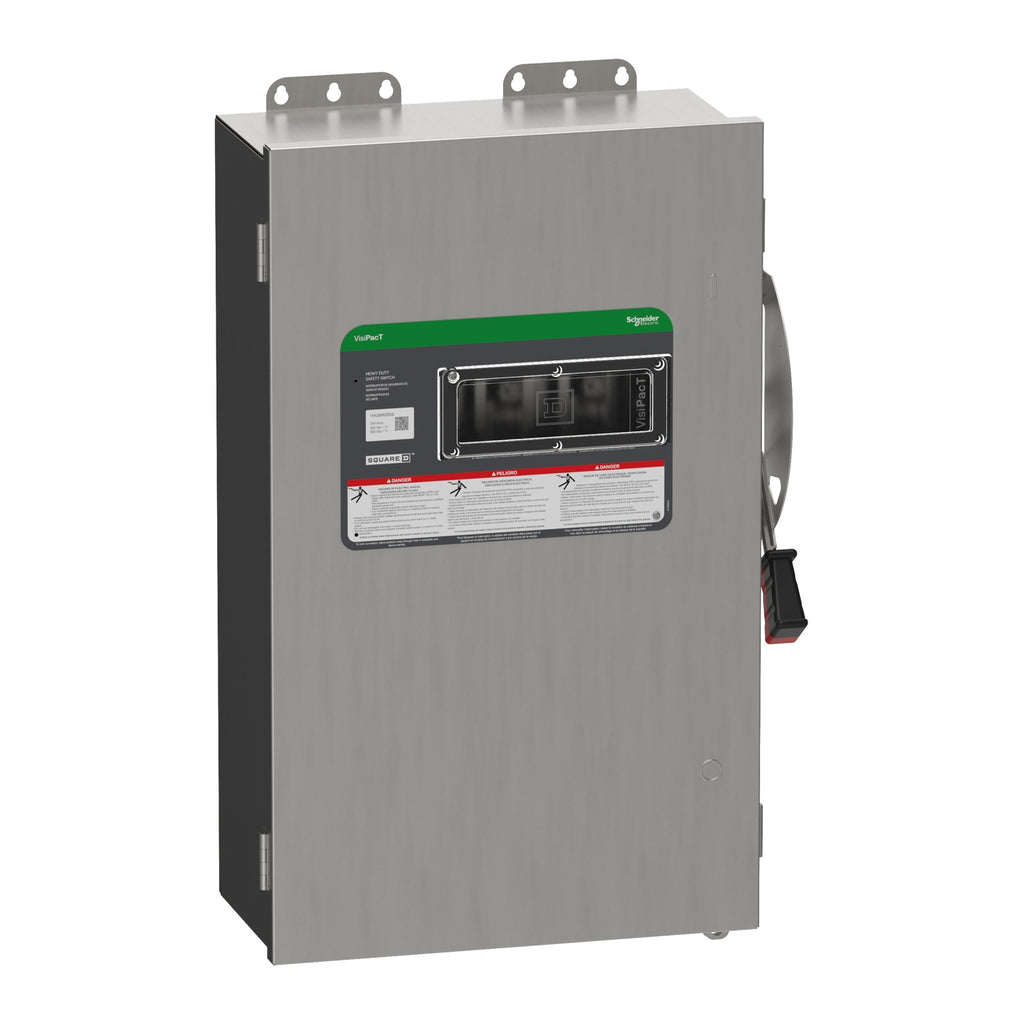

VHU364NSSGL - Square D 200A 600V 3-Pole Heavy Duty Safety Switch Stainless Steel NEMA 4X

VHU364NSSGL

VHU364NSSGL is a Square D heavy duty safety switch rated for 200 amps and 600 volts with 3 poles and a stainless steel NEMA 4X enclosure.

This non-fusible safety switch features a Type 4X stainless steel enclosure designed for harsh environments, a quick-make, quick-break operating mechanism, dual cover interlock, and a factory-installed viewing window for visual verification of switch position. It is surface mounted and includes factory-installed equipment ground lugs. The switch meets UL 98 and NEMA KS1 standards and is UL listed under file E2875. It supports both 600 VAC and 600 VDC applications and is suitable for heavy industrial and commercial use with mechanical endurance three times greater than NEMA standards.

• Amperage: 200A
• Voltage: 600 VAC/VDC
• Poles: 3
• Mounting Type: Surface Mount
• Enclosure: Stainless Steel NEMA 4X
• Type: Heavy Duty Non-Fusible Safety Switch
• Viewing Window: Factory Installed
• Grounding: Factory Installed Equipment Ground Lugs
• Standards: UL 98, NEMA KS1, UL Listed E2875
• Operating Mechanism: Quick-Make, Quick-Break
• Cover: Dual Cover Interlock

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VHU364NSSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600 AC/DC
• Amperage : 200
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589488
• GTIN : 03606485894881
• Country of Origin : United States
• Dimensions : 28.9 in (734.06 mm) x 17.474 in (443.840 mm) x 8.937 in (227.000 mm) (Height x Width x Depth)
• Weight : 57.1 lb
• Certification : EU RoHS, UL listed file E2875
