VHU364NAWKGL - Square D 200A 600V 3-Pole Heavy Duty Non-Fusible Safety Switch NEMA 12 Surface Mount

VHU364NAWKGL

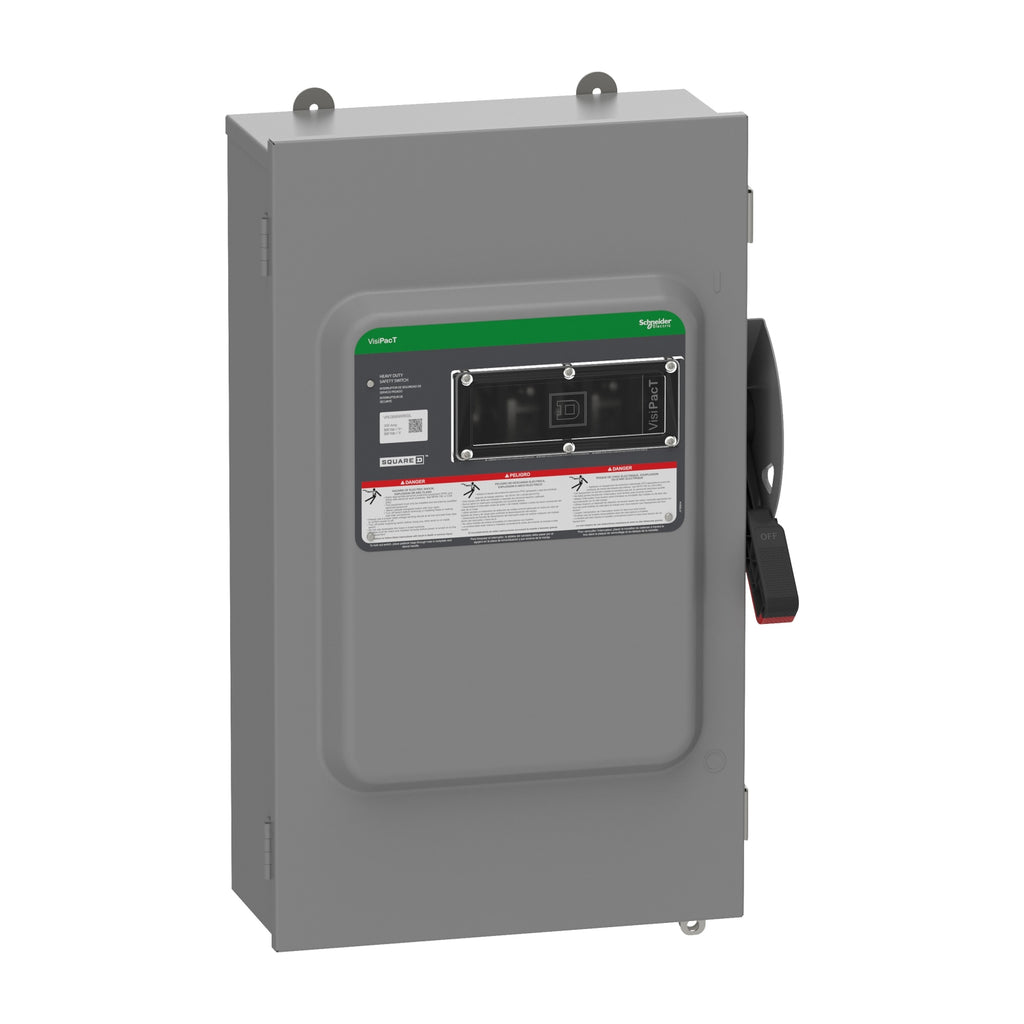

VHU364NAWKGL is a Square D heavy duty non-fusible safety switch designed for reliable power distribution and disconnect applications.This 3-pole safety switch features a 200 ampere rating and is rated for 600 volts AC/DC operation. It comes with a NEMA 12 galvanealed steel enclosure suitable for surface mounting. The switch supports single throw contact form with lug-type terminals and is designed for 50 to 60 Hz frequency. It is UL listed and built for heavy-duty industrial use with horsepower ratings up to 150 HP at 600 VAC.

Key Specifications
• Amperage: 200 A
• Voltage Rating: 600 V AC/DC
• Poles: 3
• Enclosure Type: NEMA 12
• Mounting Type: Surface
• Material: Galvannealed Steel
• Terminal Type: Lug
• Frequency: 50 to 60 Hz
• Contact Form: Single Throw
• Heavy Duty Non-Fusible
• UL Listed
• Horsepower Ratings: Up to 150 HP at 600 V AC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: VHU364NAWKGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600 AC/DC
• Amperage : 200
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 12



Product Data

• UPC : 060648589486
• GTIN : 03606485894867
• Country of Origin : United States
• Dimensions : 28.93 in (734.82 mm) x 17.01 in (432.05 mm) x 9.02 in (229.11 mm) (Height x Width x Depth)
• Weight : 55.1
• Certification : EU RoHS, UL listed file E2875
