Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU364GL

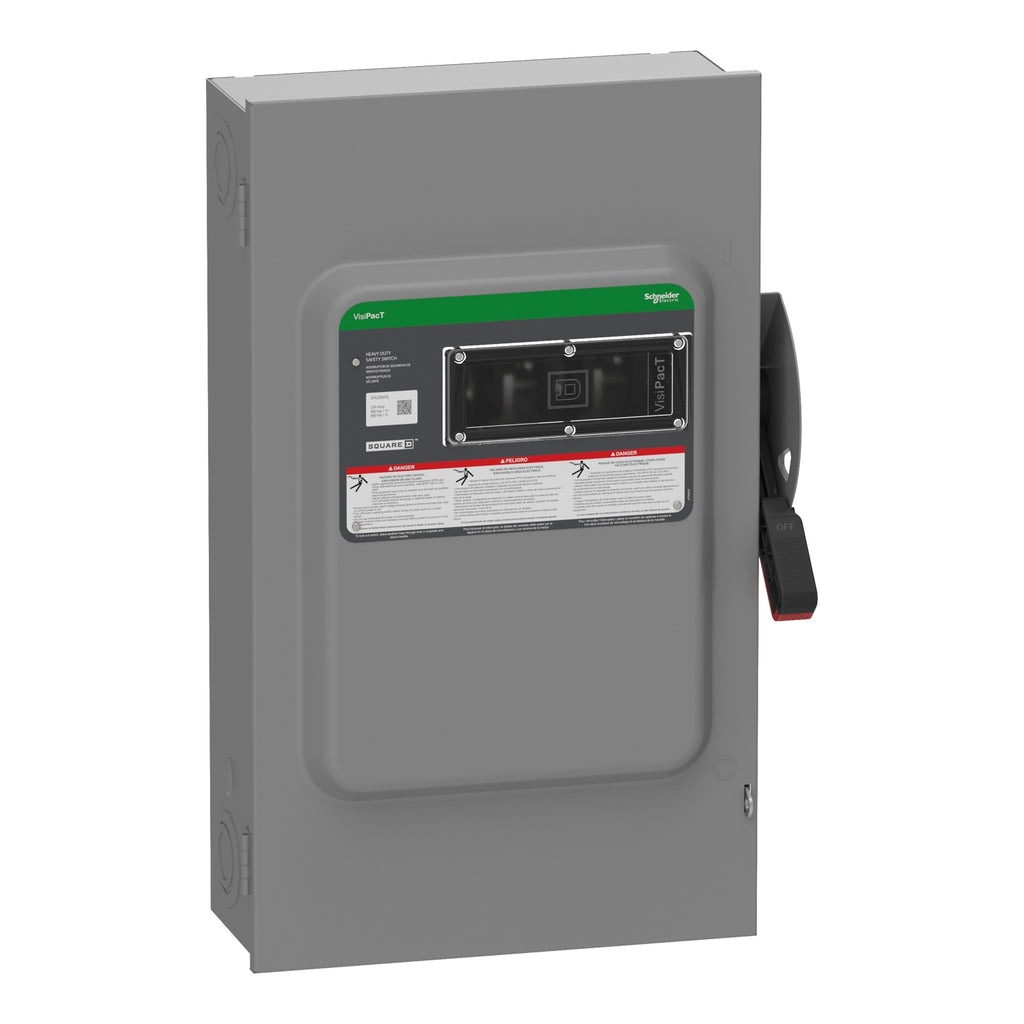

VHU364GL is a Square D 200 Amp, 600 Volt, 3-pole non-fusible safety switch designed for heavy-duty indoor applications.This switch features a Type 1 indoor enclosure, quick-make, quick-break mechanism, and a 3-wire configuration with the option to add a solid neutral in the field. It is rated for 200 amps continuous current and 600 volts, suitable for reliable power distribution and disconnecting needs.
- Amperage: 200A
- Voltage: 600V
- Poles: 3
- Switch Style: Non-Fusible
- Mounting Type: Surface Mount
- Interrupt Rating: Heavy Duty
- Enclosure Type: Type 1 Indoor
- Configuration: 3-wire with optional solid neutral
- Manufacturer: Square D
- Series/Frame: VH Series
- Certifications: UL Listed
Specifications
- Part Number: VHU364GL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 60648589498
- GTIN : 03606485894980
- Country of Origin : United States
- Dimensions : 28.93 in (734.82 mm) x 16.61 in (421.89 mm) x 8.6 in (218.4 mm) (Height x Width x Depth)
- Weight : 54.5 lb
- Certification : UL listed file E3059
