Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU364DSGL

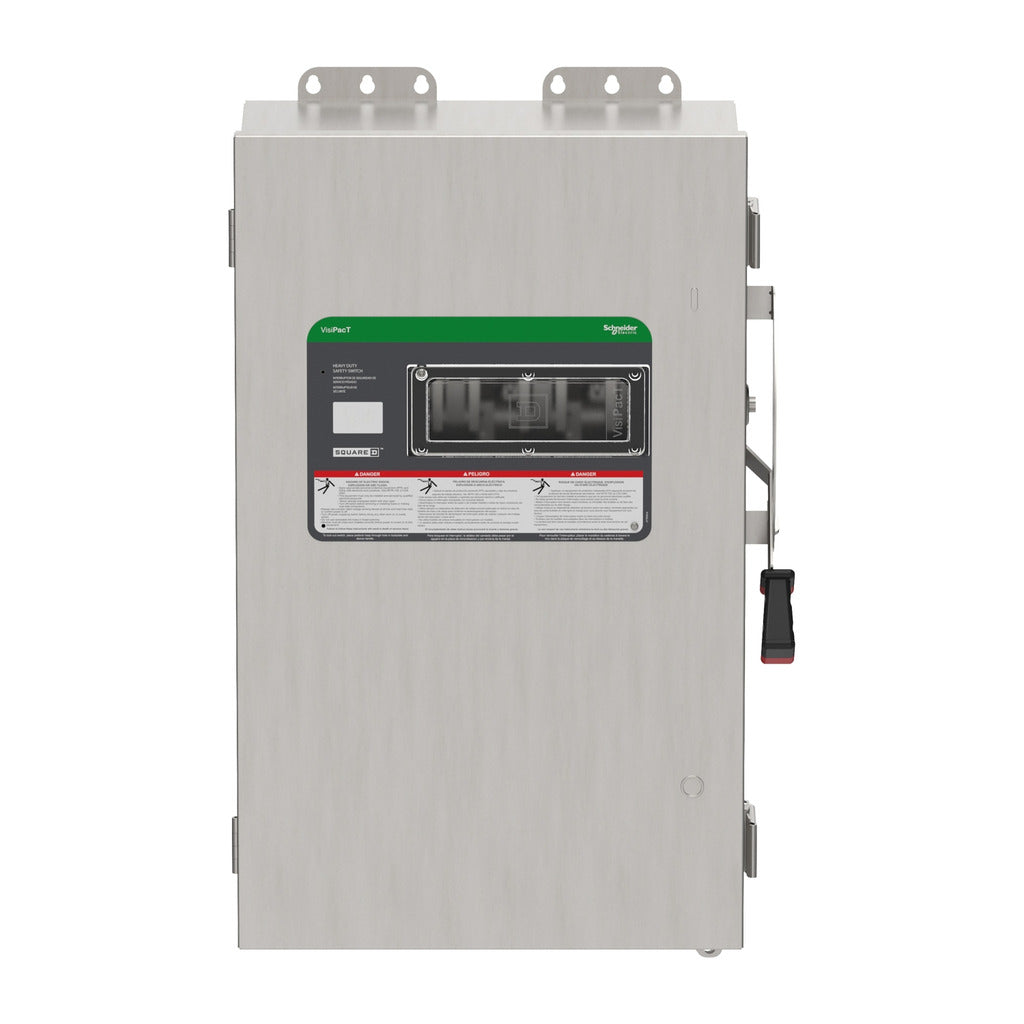

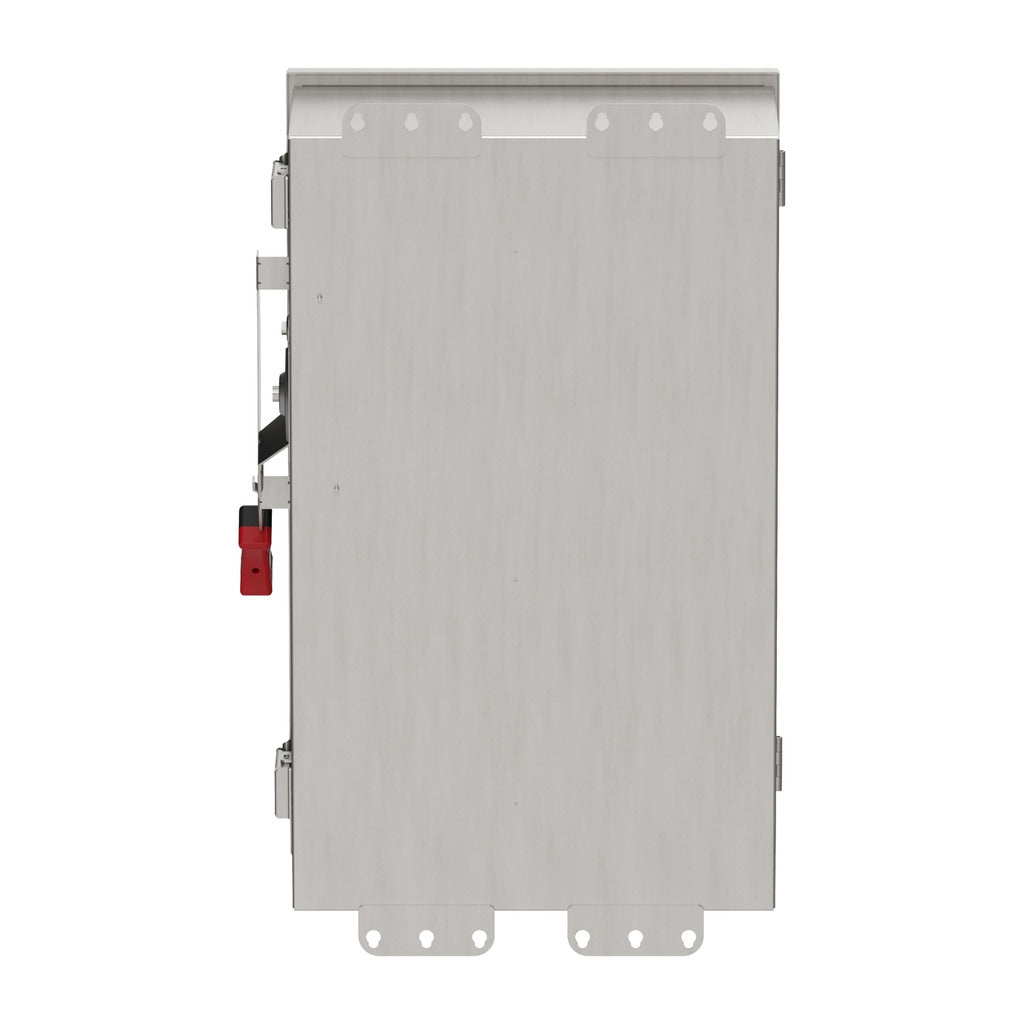

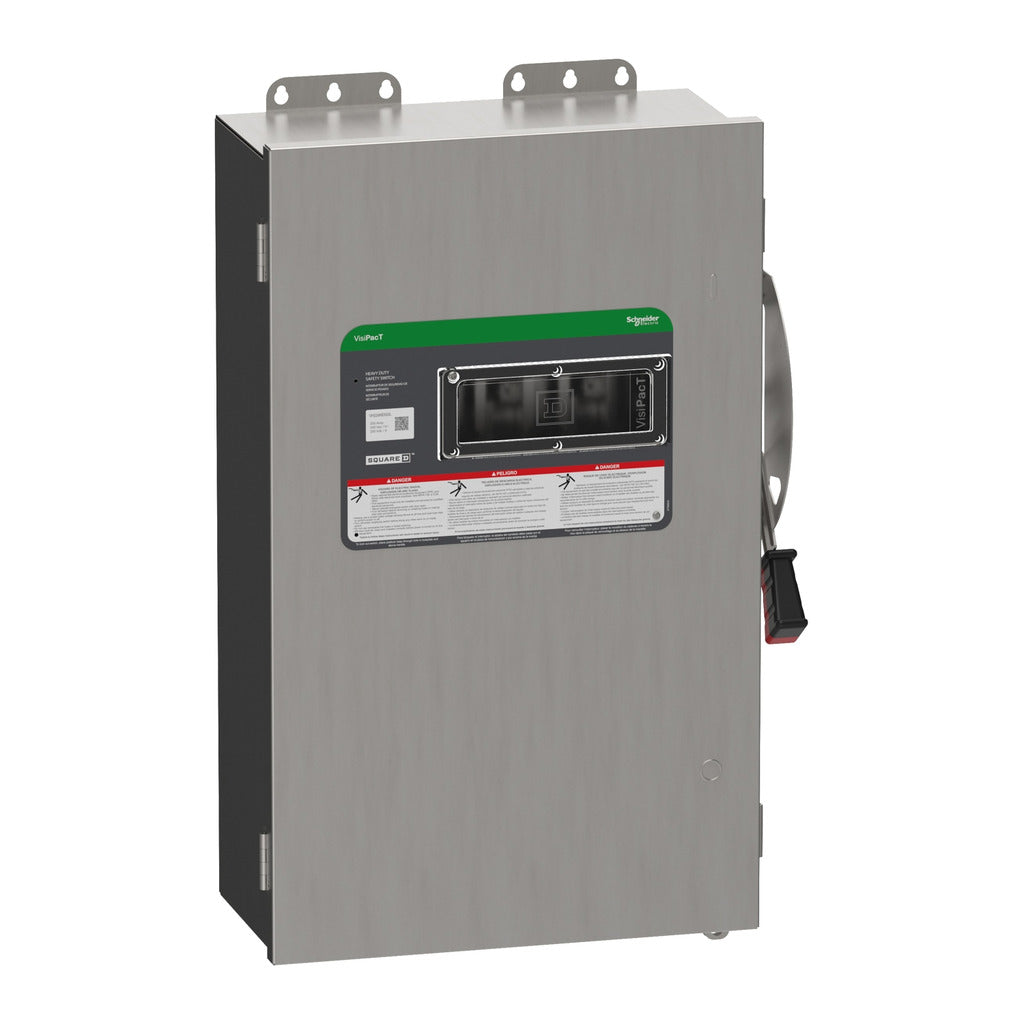

VHU364DSGL is a Square D 3-pole, 200 amp, 600 volt non-fusible safety switch designed for heavy-duty indoor applications.VHU364DSGL features a Type 4X stainless steel enclosure with a surface mounting type, dual cover interlock, and is UL listed for safety and reliability. It supports 3-wire configuration with lugs for copper or aluminum wire sizes AWG 6 to 250 kcmil. This switch is ideal for service entrance and heavy-duty industrial use.
- Key Specifications
- Amperage: 200 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Heavy Duty
- Series/Frame: F
- Switch Style: Non-Fusible
- Enclosure: 304 Stainless Steel, Type 4X
- Terminal Connection: Lugs
- Wire Gauge: AWG 6 to 250 kcmil Copper/Aluminum
- Certifications: UL Listed (File E3058)
- Country of Origin: USA
Specifications
- Part Number: VHU364DSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589496
- GTIN : 03606485894966
- Country of Origin : United States
- Dimensions : 28.9 in (734.06 mm) x 17.474 in (443.840 mm) x 8.937 in (227.000 mm) (Height x Width x Depth)
- Weight : 57.1 lb
- Certification : UL listed file E3058
