Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU364AWKGL

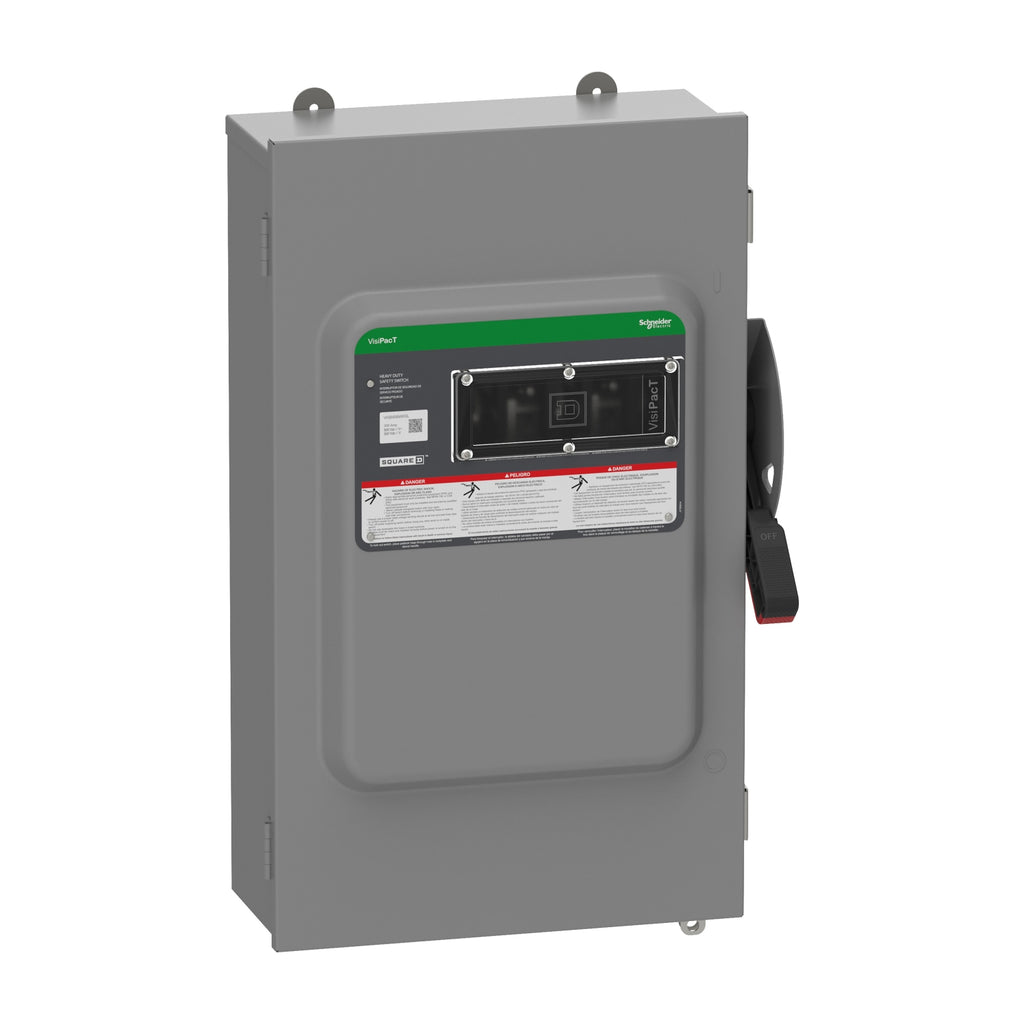

VHU364AWKGL is a Square D heavy duty safety switch rated for 200 amps and 600 volts with 3 poles and NEMA 12 enclosure.VHU364AWKGL features a surface mounting type, un-fused design with a viewing window and ground lugs. It is constructed with a steel enclosure and designed for heavy duty industrial applications requiring reliable disconnect and safety isolation.
- Key Specifications
- Manufacturer: Square D
- Part Number: VHU364AWKGL
- Amperage: 200 A
- Voltage: 600 V AC/DC
- Poles: 3
- Mounting Type: Surface
- Enclosure Type: NEMA 12
- Interrupt Rating: Heavy Duty
- Fusing: Un-fused
- Material: Steel
- Includes: Viewing Window, Ground Lugs
- Certifications: RoHS Compliant
Specifications
- Part Number: VHU364AWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 600 AC/DC
- Amperage : 200
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589495
- GTIN : 03606485894959
- Country of Origin : United States
- Dimensions : 28.93 in (734.82 mm) x 17.01 in (432.05 mm) x 9.02 in (229.11 mm) (Height x Width x Depth)
- Weight : 54.6 lb
- Certification : EU RoHS, UL listed file E2875
