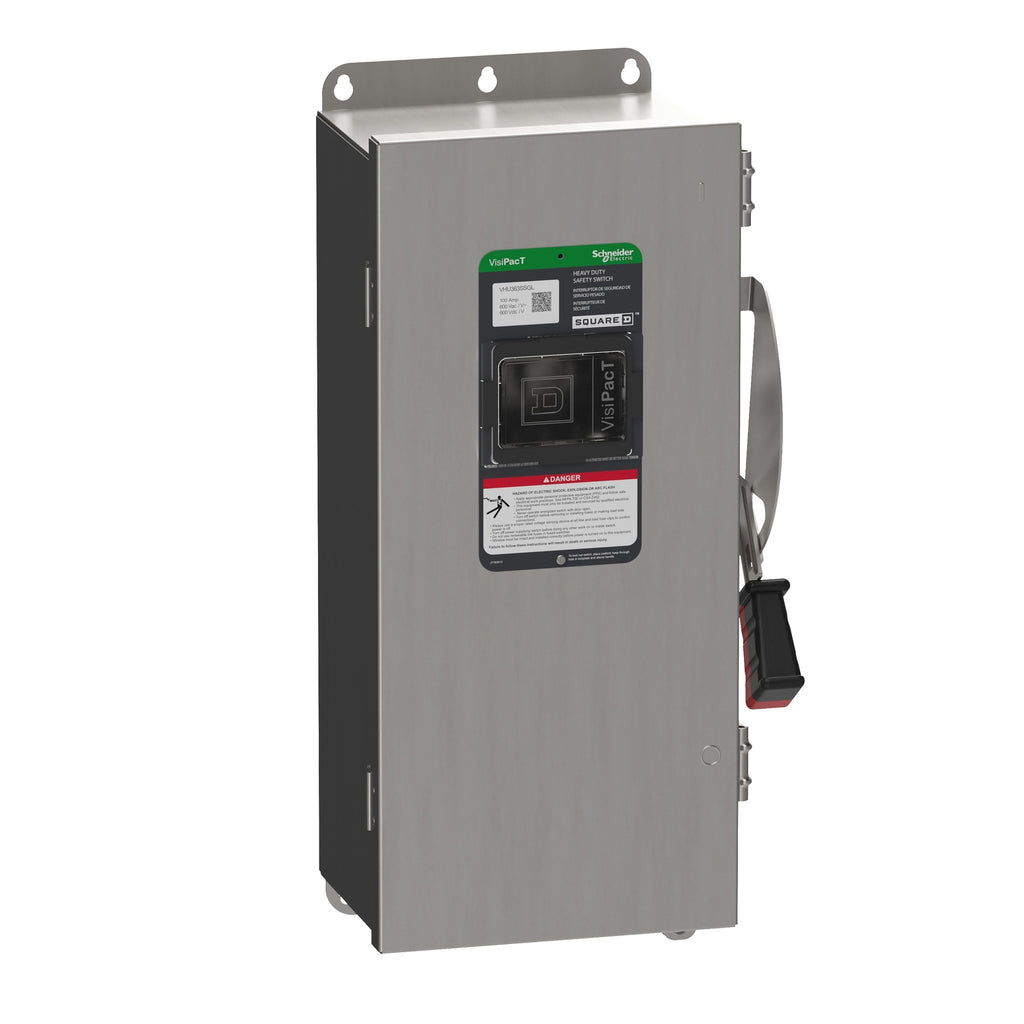

VHU363SSGL - Square D 100A 600V 3-Pole Heavy Duty Non-Fusible Safety Switch NEMA 4X Stainless Steel Surface Mount

VHU363SSGL

VHU363SSGL is a Square D heavy duty non-fusible safety switch rated for 100 amps and 600 volts AC/DC with 3 poles and a NEMA 4X stainless steel enclosure.This switch features a 3-pole, single throw contact configuration designed for surface mounting. It is constructed with 304 stainless steel for durability and corrosion resistance, suitable for indoor and outdoor applications. The device supports 3 wires and is UL listed, meeting heavy duty service entrance requirements. It includes lug-type terminals and is rated for 50 to 60 Hz frequency. The switch offers mechanical endurance exceeding NEMA standards and includes a viewing window for quick visual verification of switch position.

• Amperage: 100 A
• Voltage: 600 VAC/VDC
• Poles: 3
• Mounting Type: Surface
• Enclosure: NEMA 4X, 304 Stainless Steel
• Interrupt Rating: Heavy Duty
• Terminal Type: Lug
• Contact Form: Single Throw
• Frequency: 50 to 60 Hz
• Series: F
• Certifications: UL Listed, RoHS Compliant
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VHU363SSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589483
• GTIN : 03606485894836
• Country of Origin : United States
• Dimensions : 20.76 in (527.30 mm) x 9.336 in (237.134 mm) x 7.28 in (184.91 mm) (Height x Width x Depth)
• Weight : 24.03 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL listed file E3055
