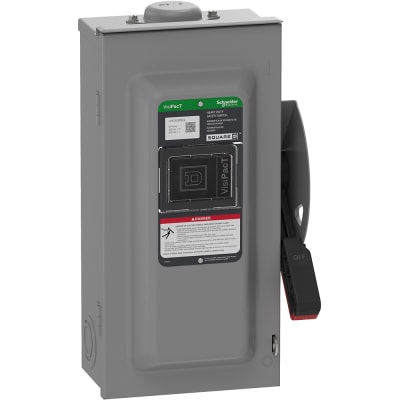

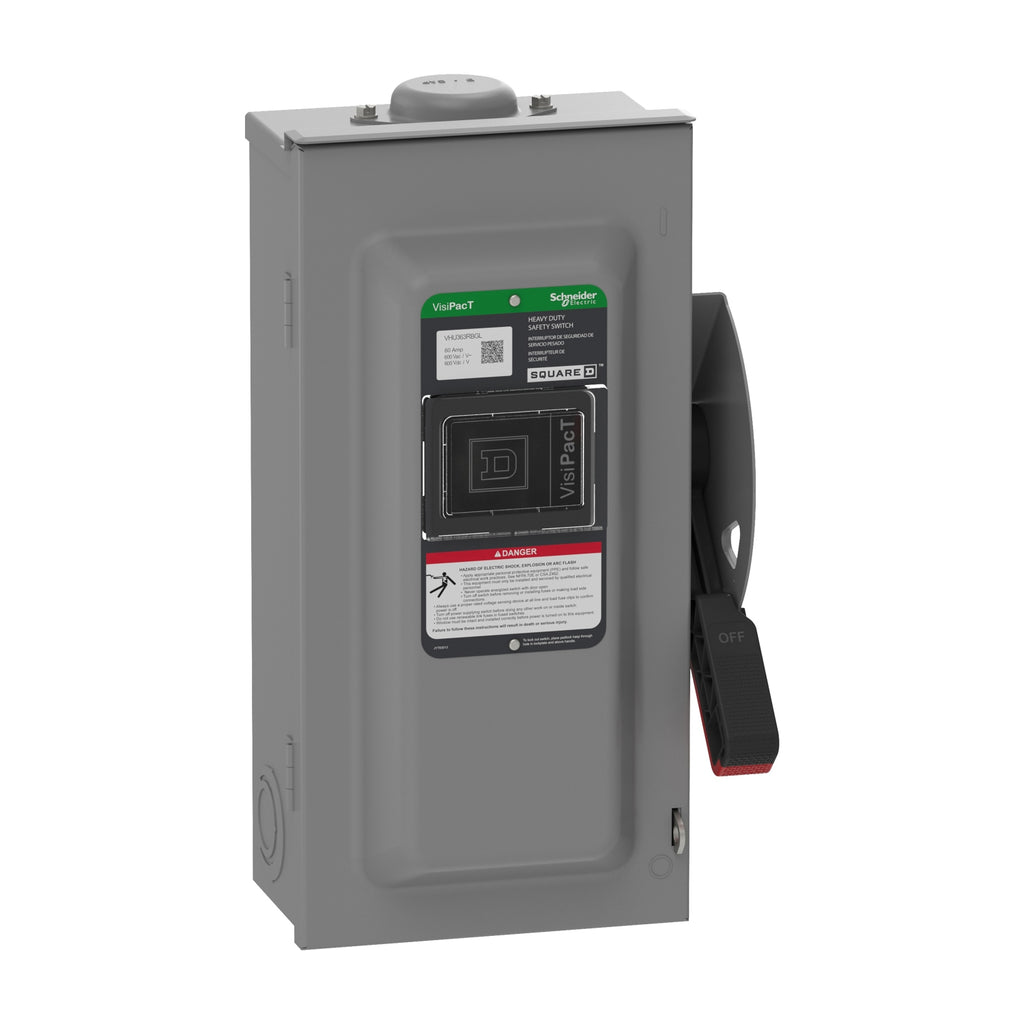

VHU363RBGL - Square D 100A 600V 3-Pole Heavy Duty Non-Fusible Safety Switch NEMA 3R

VHU363RBGL

This Square D VHU363RBGL safety switch features a 3-pole configuration with a 100 ampere current rating and 600 volt AC/DC voltage rating. It is designed for heavy duty applications with a non-fusible design and includes a viewing window and dual cover interlock. The switch is housed in a NEMA 3R rated enclosure suitable for outdoor use and provides touch-safe barriers and shields to prevent accidental contact. It supports a solid neutral installation in the field using an optional kit and meets industry certifications for safety and reliability.

Key Specifications
• Amperage: 100 Amps
• Voltage: 600 VAC/VDC
• Poles: 3
• Mounting Type: Surface Mount
• Interrupt Rating: Heavy Duty
• Series/Frame: VisiPacT
• Trip Unit: Non-Fusible
• Enclosure: NEMA 3R
• Features: Viewing Window, Dual Cover Interlock
• Certifications: Industry Standard Safety Certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: VHU363RBGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 3R



Product Data

• UPC : 060648589501
• GTIN : 03606485895017
• Country of Origin : United States
• Dimensions : 22.103 in (561.416 mm) x 9.08 in (230.63 mm) x 7.019 in (178.283 mm) (Height x Width x Depth)
• Weight : 19.8 lb
• Certification : UL listed file E3054
