Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU363NSSGL

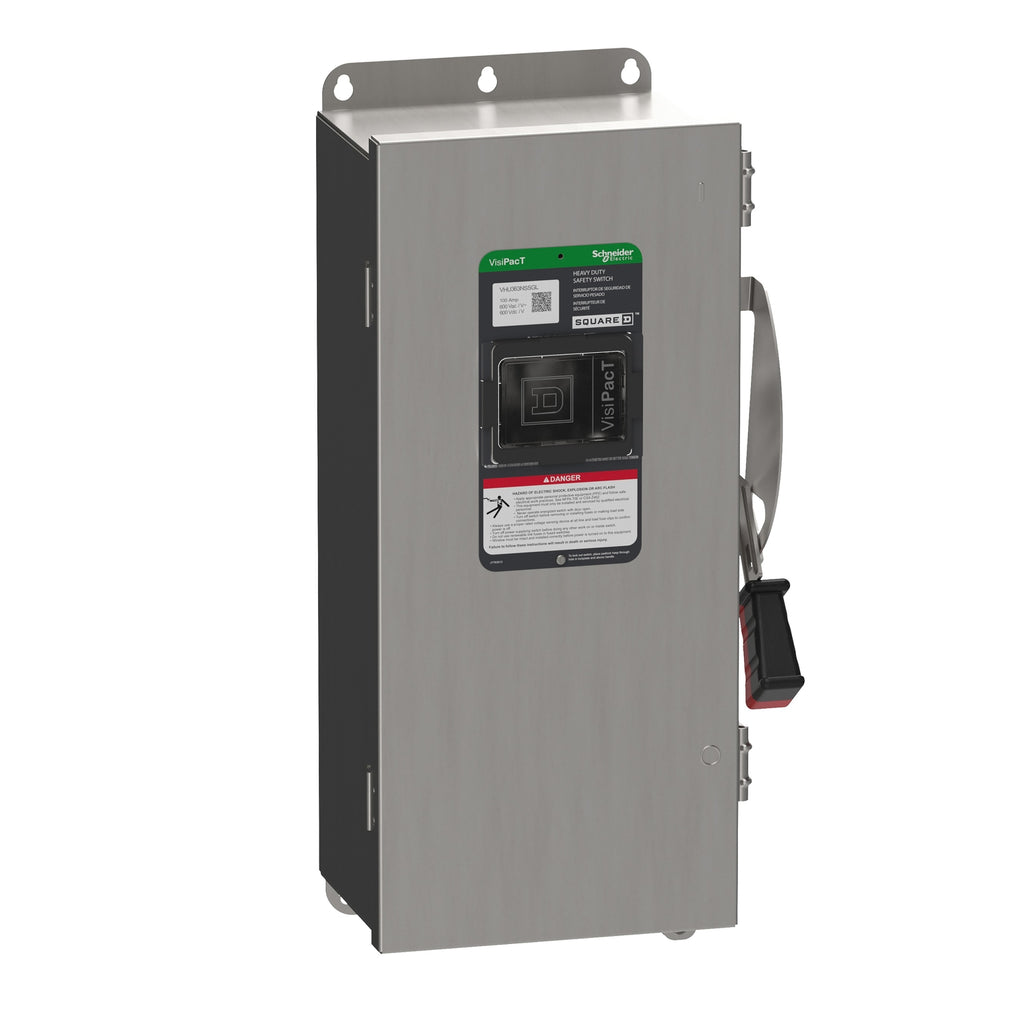

VHU363NSSGL is a heavy duty, 3-pole safety switch from Square D rated for 100 amps and 600 volts with a NEMA 4X stainless steel enclosure.This unfused safety switch features a quick-make/break mechanism, a viewing window for visual verification, and ground lugs. It is surface mounted and designed for heavy-duty applications with a mechanical endurance three times greater than NEMA standards. The enclosure is made of 304 stainless steel, providing corrosion resistance and suitability for indoor and outdoor use.
- Amperage: 100A
- Voltage: 600VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Heavy Duty
- Series/Frame: F Series
- Trip Unit: Non-fusible (single throw)
- Enclosure: 304 Stainless Steel, NEMA 4X
- Certifications: UL Listed, RoHS Compliant
- Contact Configuration: 3PST
- Ground Lugs Included
- Wire Range: AWG 12 to 1/0 Aluminum/Copper
Specifications
- Part Number: VHU363NSSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600 AC/DC
- Amperage : 100
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589474
- GTIN : 03606485894744
- Country of Origin : United States
- Dimensions : 20.76 in (527.30 mm) x 9.336 in (237.134 mm) x 7.28 in (184.91 mm) (Height x Width x Depth)
- Weight : 23.98 lb
- Certification : EU RoHS, UL listed file E2875
