Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU363NRB

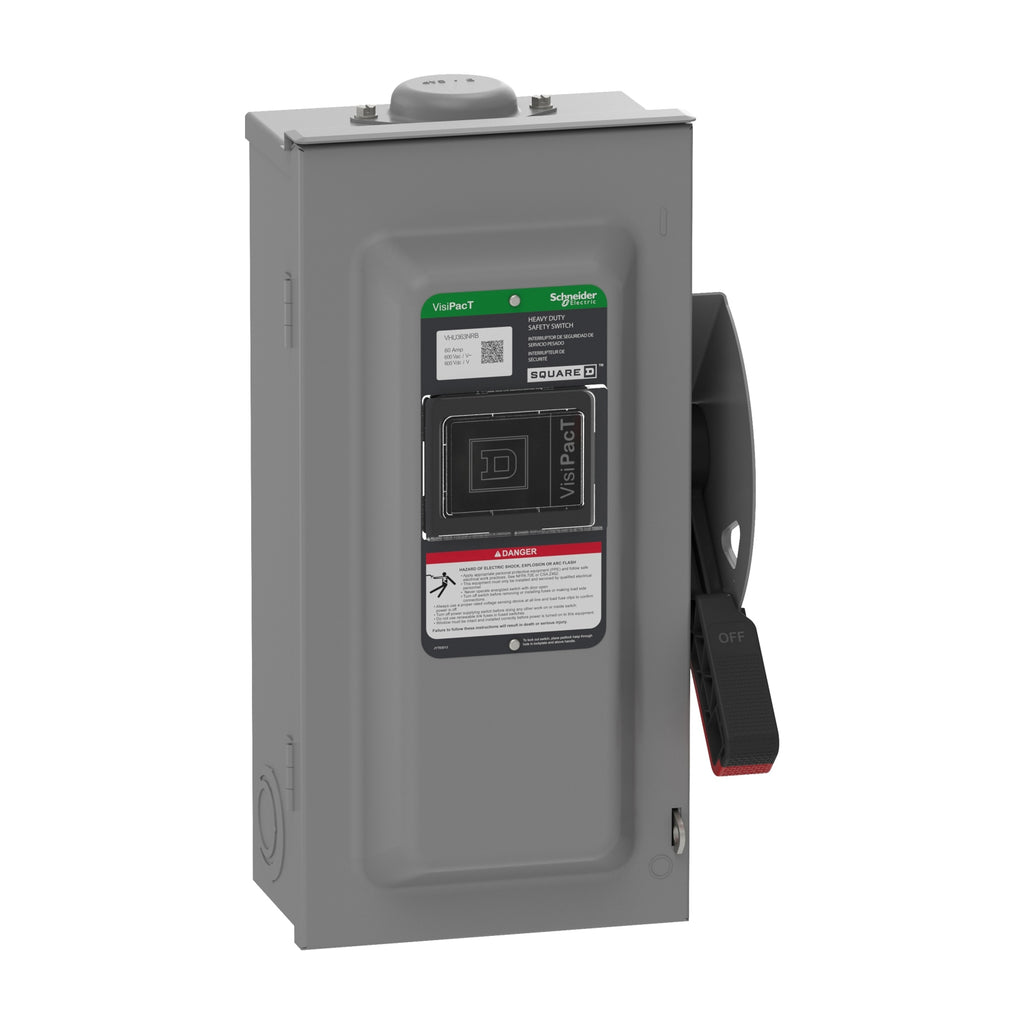

VHU363NRB is a Square D heavy duty 3-pole safety switch rated for 100 amps and 600 volts AC/DC with neutral installed and NEMA 3R enclosure. This safety switch features a viewing window for quick visual verification of switch position and is designed for surface mounting. It is unfused with a galvannealed steel enclosure and meets UL certification standards for reliable power isolation in commercial and industrial applications.
- Amperage: 100A
- Voltage: 600VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Heavy Duty
- Enclosure: NEMA 3R galvannealed steel
- Neutral: Installed
- Type: Unfused Safety Switch
- Viewing Window: Yes
- Certifications: UL Listed
- Frame/Series: VisiPacT
- Wire Gauge Range: AWG 12 to AWG 1/0 Copper/Aluminum
Specifications
- Part Number: VHU363NRB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600 AC/DC
- Amperage : 100
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589471
- GTIN : 03606485894713
- Country of Origin : United States
- Dimensions : 22.103 in (561.416 mm) x 9.08 in (230.63 mm) x 7.019 in (178.283 mm) (Height x Width x Depth)
- Weight : 17.58 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : EU RoHS, UL listed file E2875
