Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU363NDSGL

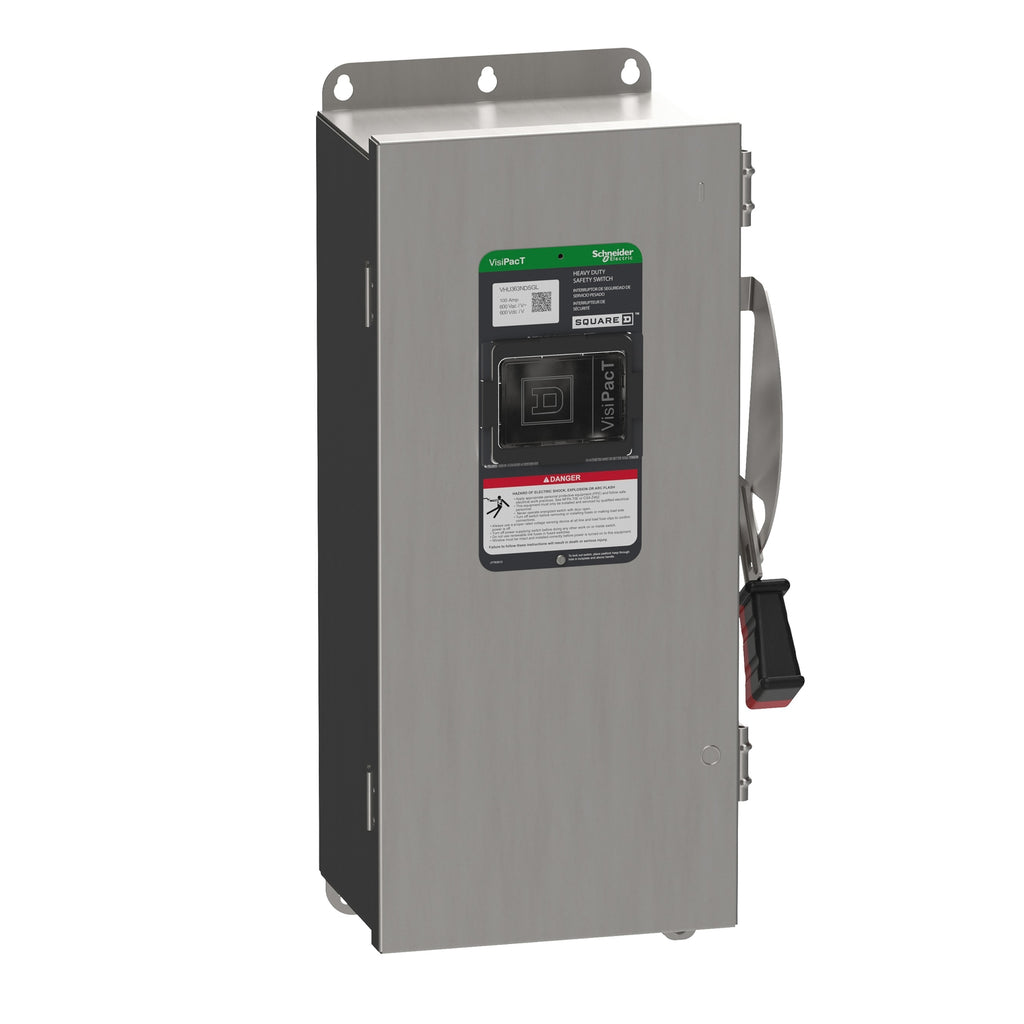

VHU363NDSGL is a Square D heavy duty 3-pole safety switch rated for 100 amps and 600 volts AC/DC with a NEMA 4X stainless steel enclosure.VHU363NDSGL features a surface mounting type, non-fusible single throw design with a viewing window for quick visual verification of switch position. It is constructed with 304 stainless steel for durability and suitable for indoor/outdoor heavy duty applications. This switch supports lug terminal connections and complies with UL and RoHS standards.
- Amperage: 100A
- Voltage: 600VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Heavy Duty
- Series/Frame: F Series
- Trip Unit: Non-fusible
- Enclosure Material: 304 Stainless Steel
- NEMA Rating: 4X
- Terminal Connection: Lugs
- Certifications: UL, RoHS
- Number of Wires: 3
Specifications
- Part Number: VHU363NDSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589473
- GTIN : 03606485894737
- Country of Origin : United States
- Dimensions : 20.76 in (527.30 mm) x 9.336 in (237.134 mm) x 7.28 in (184.91 mm) (Height x Width x Depth)
- Weight : 24.03 lb
- Certification : UL listed file E3050
