Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU363NAWKGL

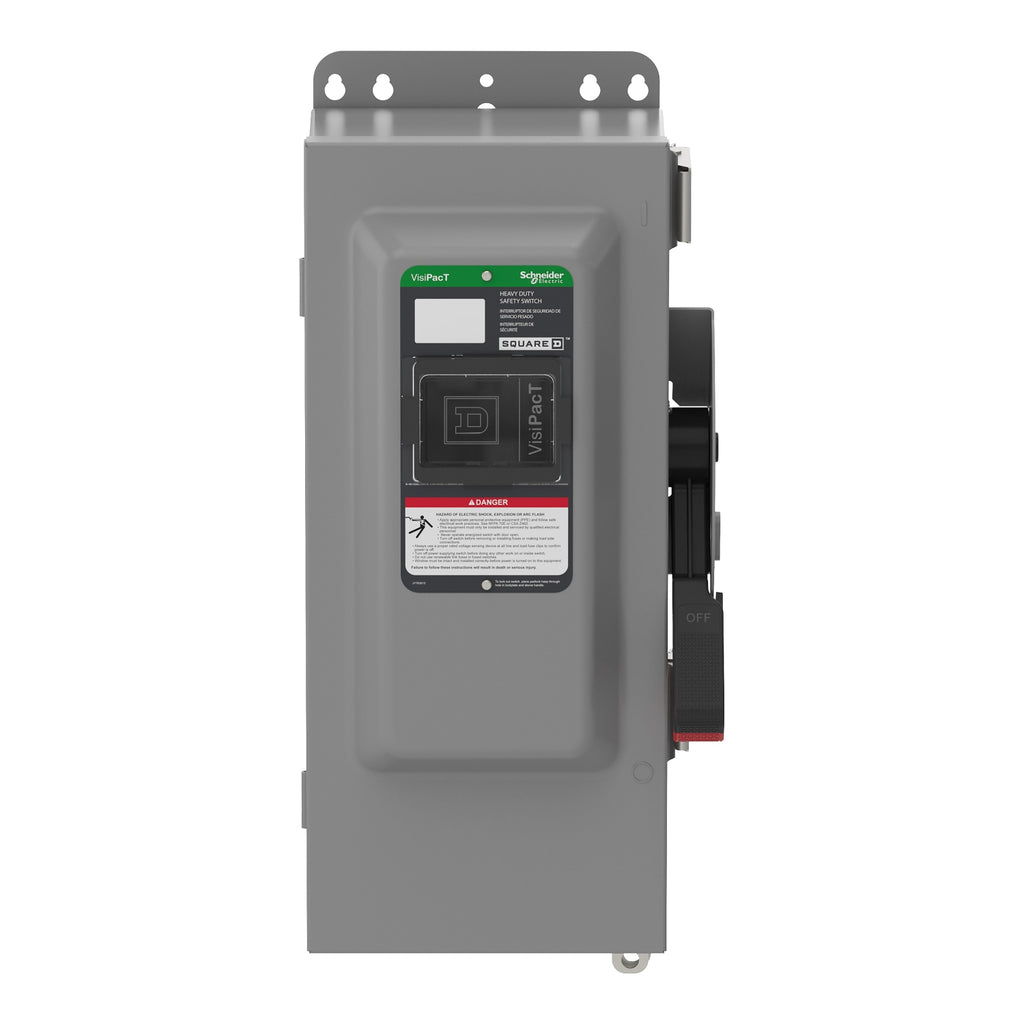

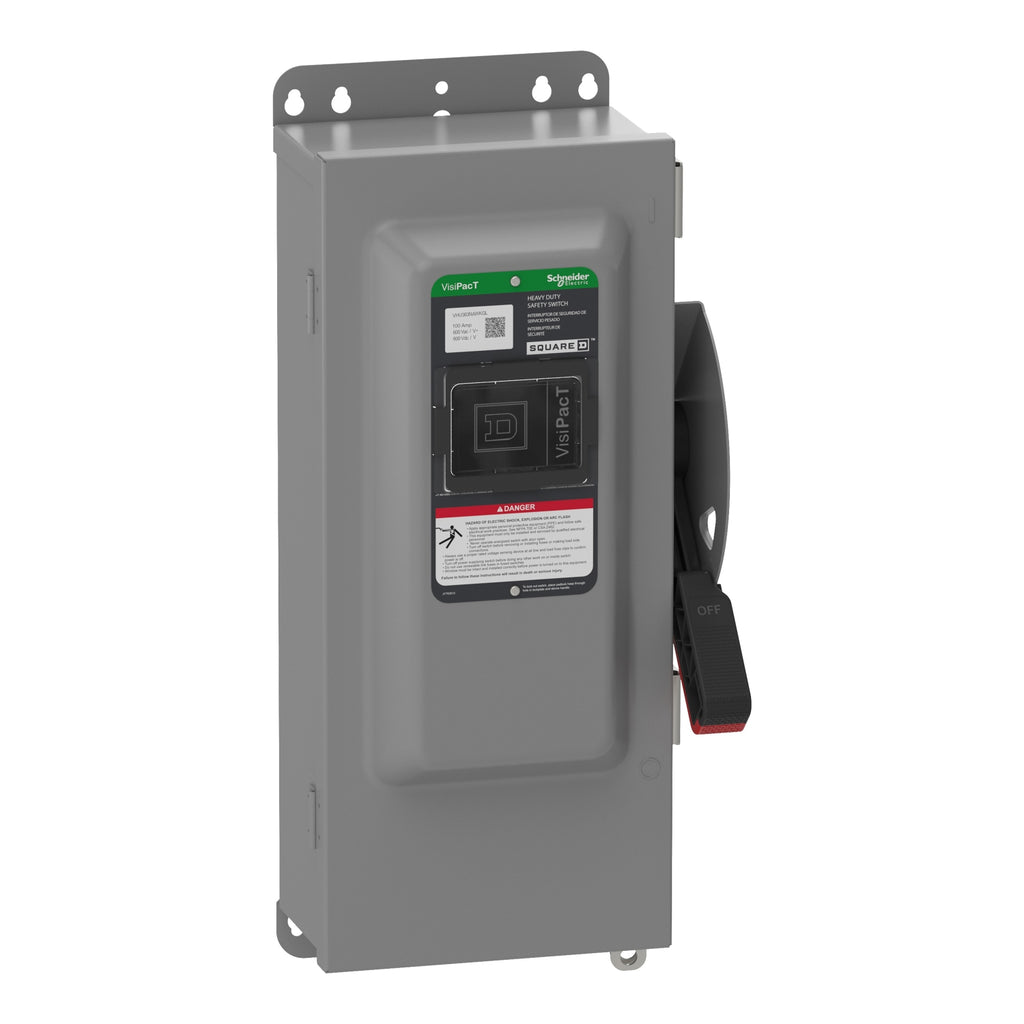

VHU363NAWKGL is a Square D heavy duty safety switch rated for 100 amps and 600 volts with 3 poles and a NEMA 12 enclosure featuring a viewing window. This unfused safety switch is designed for reliable power isolation and protection in industrial applications. It includes ground lugs and a dual cover interlock for enhanced safety.
- Amperage: 100A
- Voltage: 600V AC/DC
- Poles: 3
- Mounting Type: Surface mount
- Interrupt Rating: Heavy duty
- Series/Frame: Full size
- Trip Unit: None (unfused)
- Enclosure: NEMA 12 with viewing window
- Grounding: Ground lugs included
- Certifications: UL listed
- Additional Features: Dual cover interlock
Specifications
- Part Number: VHU363NAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589472
- GTIN : 03606485894720
- Country of Origin : United States
- Dimensions : 20.49 in (520.45 mm) x 8.92 in (226.57 mm) x 7.15 in (181.61 mm) (Height x Width x Depth)
- Weight : 20.9 lb
- Certification : UL listed file E3049
