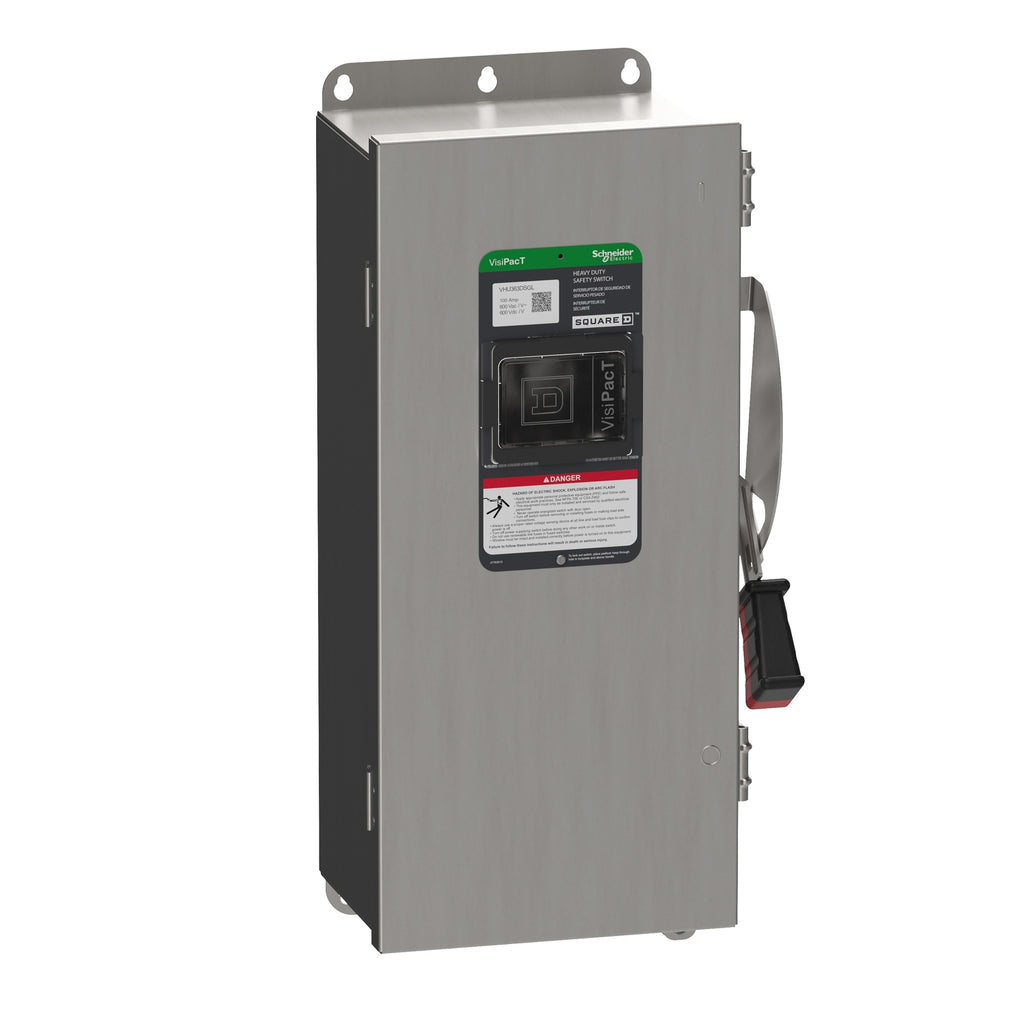

VHU363DSGL - Square D 100A 600V 3-Pole Heavy Duty Safety Switch NEMA 4X Stainless Steel

VHU363DSGL

VHU363DSGL is a heavy duty 3-pole safety switch from Square D designed for reliable power isolation in industrial and commercial applications.

This Square D VHU363DSGL safety switch features a 100 ampere current rating and supports voltages up to 600VAC/VDC. It is constructed with a 304 stainless steel enclosure rated NEMA 4X for indoor and outdoor use, providing corrosion resistance and durability. The switch is surface mounted and non-fusible with a single throw action and lug-type terminal connections. It includes a viewing window for quick visual verification of switch position and meets UL certification standards. The device is suitable for heavy duty service entrance applications and complies with EU and RoHS standards.

Key Specifications
• Manufacturer: Square D
• Part Number: VHU363DSGL
• Amperage: 100 A
• Voltage: 600 VAC/VDC
• Poles: 3
• Mounting Type: Surface
• Enclosure: 304 Stainless Steel, NEMA 4X
• Interrupt Rating: Heavy Duty
• Fusibility: Non-Fusible
• Terminal Connection: Lugs
• Standards: UL, EU, RoHS
• Action: Single Throw

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VHU363DSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 600 AC/DC
• Amperage : 100
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589482
• GTIN : 03606485894829
• Country of Origin : United States
• Dimensions : 20.76 in (527.30 mm) x 9.336 in (237.134 mm) x 7.28 in (184.91 mm) (Height x Width x Depth)
• Weight : 24.03 lb
• Certification : EU RoHS, UL listed file E2875
