Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU362NRB

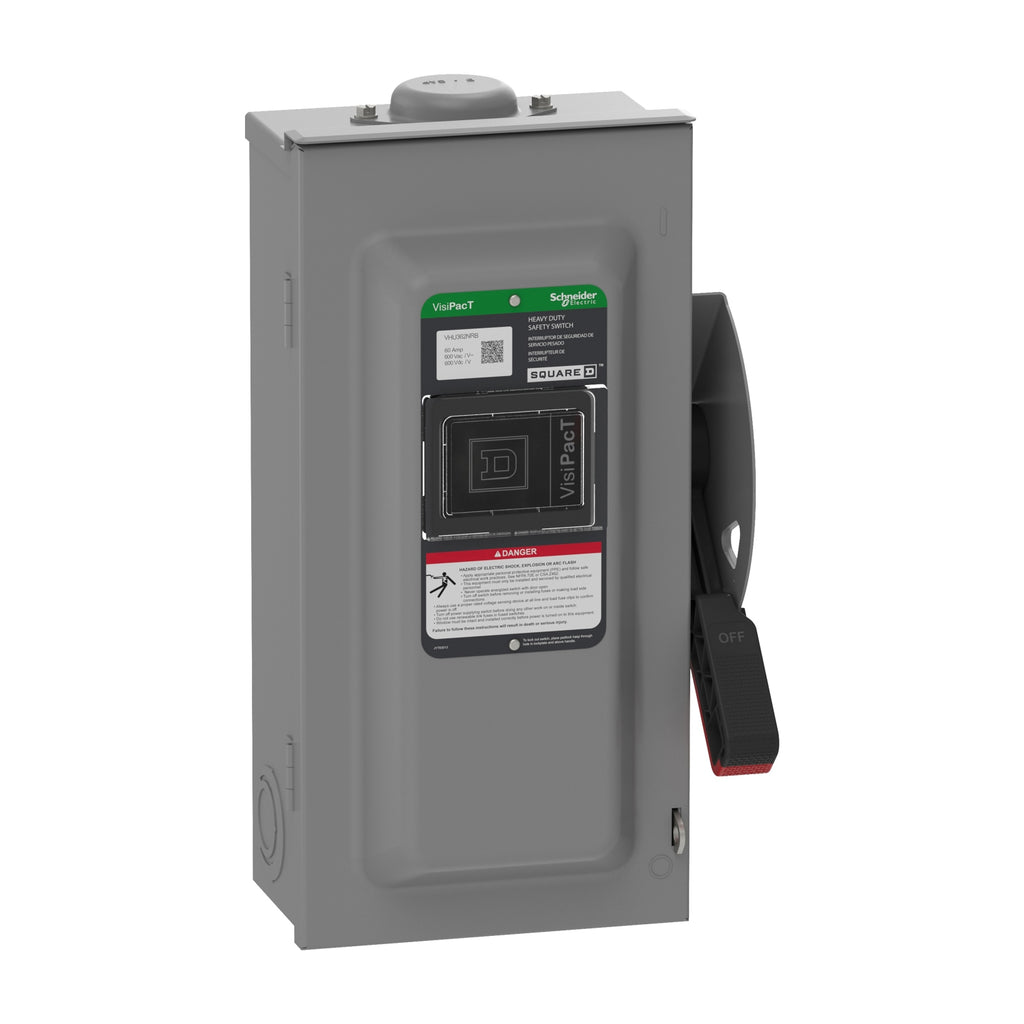

VHU362NRB is a Square D heavy duty non-fusible safety switch designed for reliable power distribution and safety disconnect applications.
This 3-pole safety switch is rated for 60 amperes and supports both 600V AC and DC operation. It features a NEMA 3R galvanized steel enclosure suitable for surface mounting, providing protection against environmental elements. The switch uses lug-type terminals and is suitable for single or three-phase systems with 4-wire connections. It supports horsepower ratings up to 60 hp and operates within a frequency range of 50 to 60 Hz.
- Manufacturer: Square D
- Part Number: VHU362NRB
- Amperage: 60 A
- Voltage: 600 V AC/DC
- Poles: 3
- Mounting Type: Surface Mount
- Enclosure Type: NEMA 3R
- Terminal Type: Lug
- Material: Galvannealed Steel
- Phase: 1 or 3
- Number of Wires: 4
- Frequency Rating: 50 to 60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: VHU362NRB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600 AC/DC
- Amperage : 60
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 60648589457
- GTIN : 03606485894577
- Country of Origin : United States
- Dimensions : 18.456 in (468.782 mm) x 9.08 in (230.63 mm) x 7.038 in (178.765 mm) (Height x Width x Depth)
- Weight : 15.781 lb
- Certification : EU RoHS, UL listed file E2875
