Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU362NDSGL

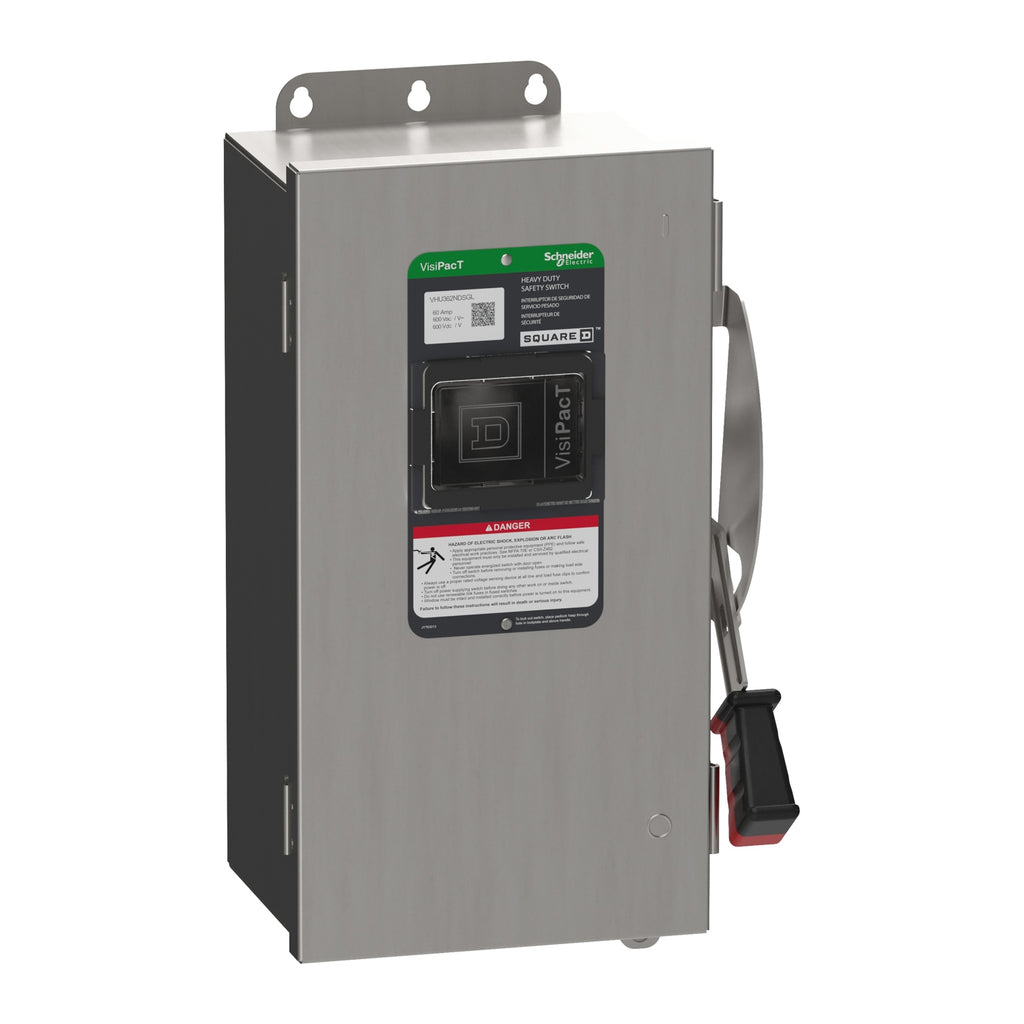

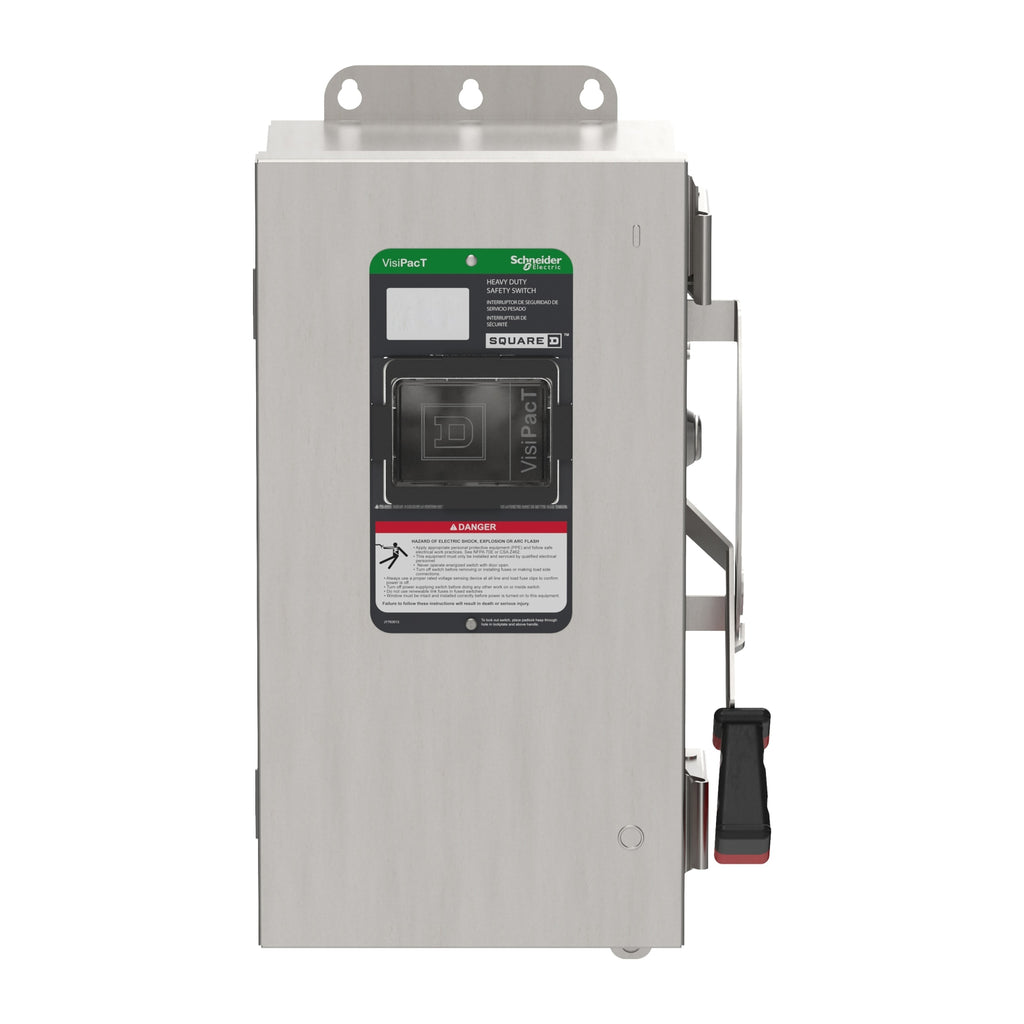

VHU362NDSGL is a Square D heavy duty non-fusible safety switch designed for reliable power distribution and disconnect applications.This safety switch features a 60 ampere rating, supports 600 volts AC/DC, and includes 3 poles with a NEMA 4X stainless steel enclosure for durability and corrosion resistance. It is surface mounted with lug-type terminals and suitable for single or three-phase systems. The switch is rated for horsepower loads up to 60 hp and frequency from 50 to 60 Hz.
- Amperage: 60 A
- Voltage: 600 V AC/DC
- Number of Poles: 3
- Enclosure Type: NEMA 4X (304 Stainless Steel)
- Mounting Type: Surface Mount
- Terminal Type: Lug
- Phase: Single and Three Phase
- Frequency Rating: 50 to 60 Hz
- Horsepower Rating: Up to 60 hp
- Type: Heavy Duty Non-Fusible Disconnect
- Manufacturer: Square D (Schneider Electric)
Specifications
- Part Number: VHU362NDSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589459
- GTIN : 03606485894591
- Country of Origin : United States
- Dimensions : 16.93 in (430.02 mm) x 8.92 in (226.57 mm) x 7.26 in (184.40 mm) (Height x Width x Depth)
- Weight : 20.9 lb
- Certification : UL listed file E3038
