- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU362NAWKGL

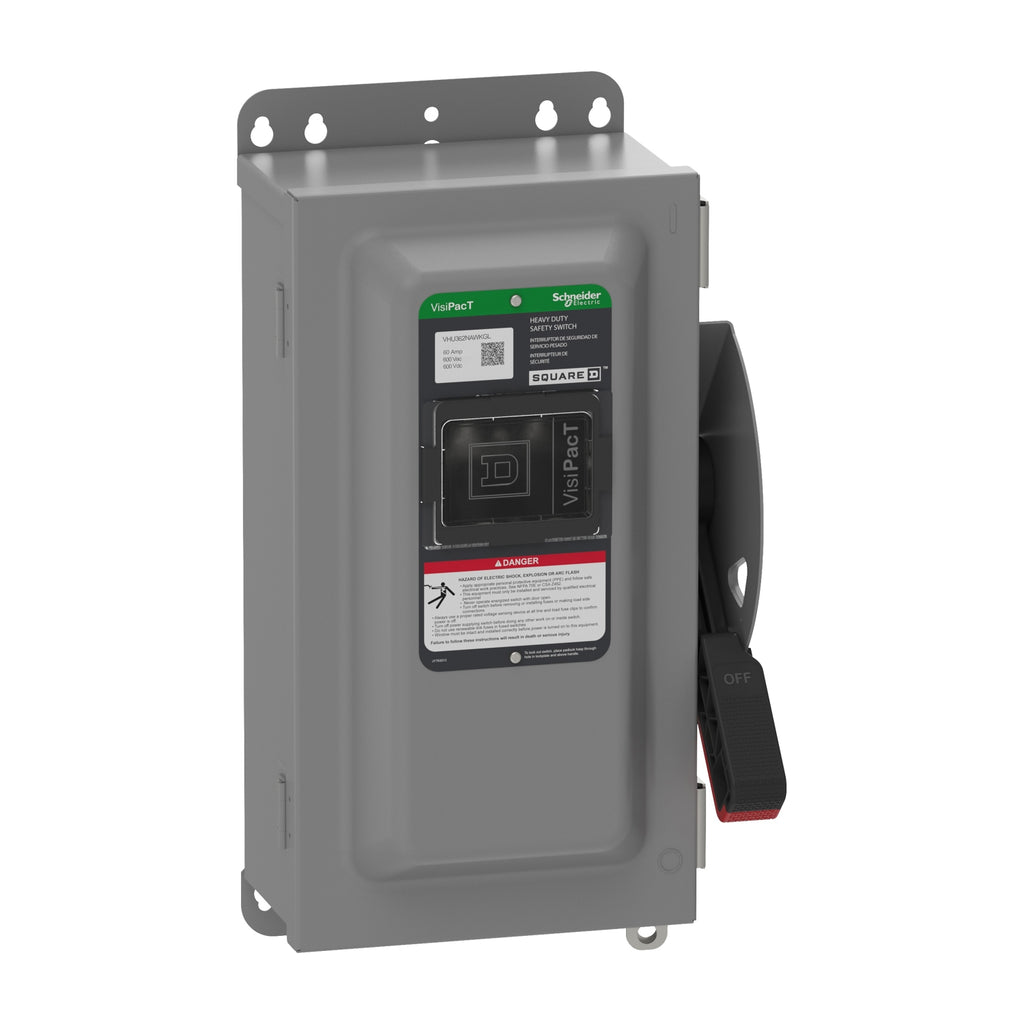

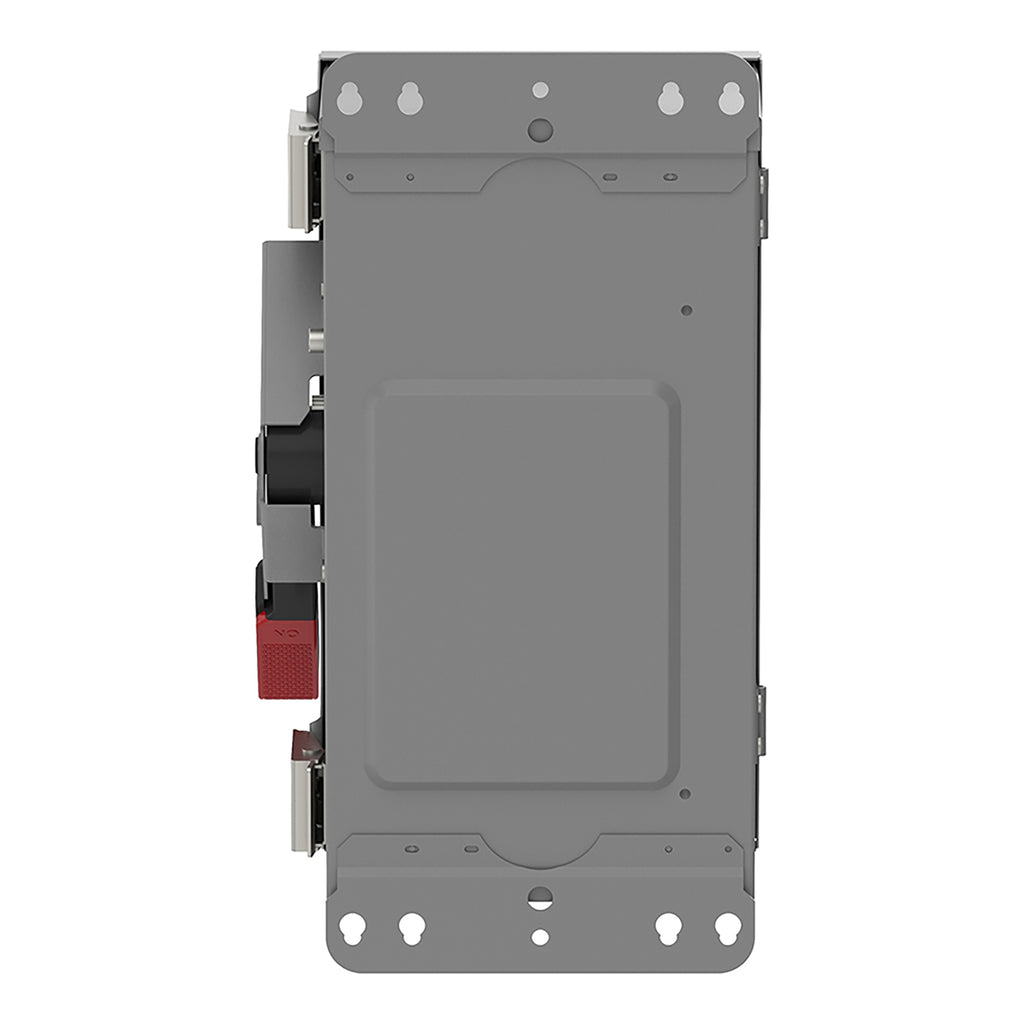

VHU362NAWKGL is a Square D heavy duty safety switch rated for 60 amps and 600 volts AC/DC with 3 poles and a NEMA 12 enclosure.
This non-fusible safety switch features a viewing window for quick visual verification of switch position and is constructed with galvannealed steel for durability. It is designed for heavy duty applications with a mechanical endurance three times greater than NEMA standards and includes ground lugs for secure grounding. The NEMA 12 rating provides protection against dust, dirt, and dripping water, making it suitable for industrial environments.
- Key Specifications
- Manufacturer: Square D
- Part Number: VHU362NAWKGL
- Amperage: 60 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface Mount
- Enclosure: NEMA 12 Galvannealed Steel
- Type: Heavy Duty, Non-Fusible
- Viewing Window: Yes
- Ground Lugs: Included
- Part Number: VHU362NAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 12
- UPC : 60648589458
- GTIN : 03606485894584
- Country of Origin : United States
- Dimensions : 16.54 in (420.12 mm) x 8.92 in (226.57 mm) x 7.164 in (181.966 mm) (Height x Width x Depth)
- Weight : 20.9 lb
- Certification : UL listed file E3037
