Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU362DSGL

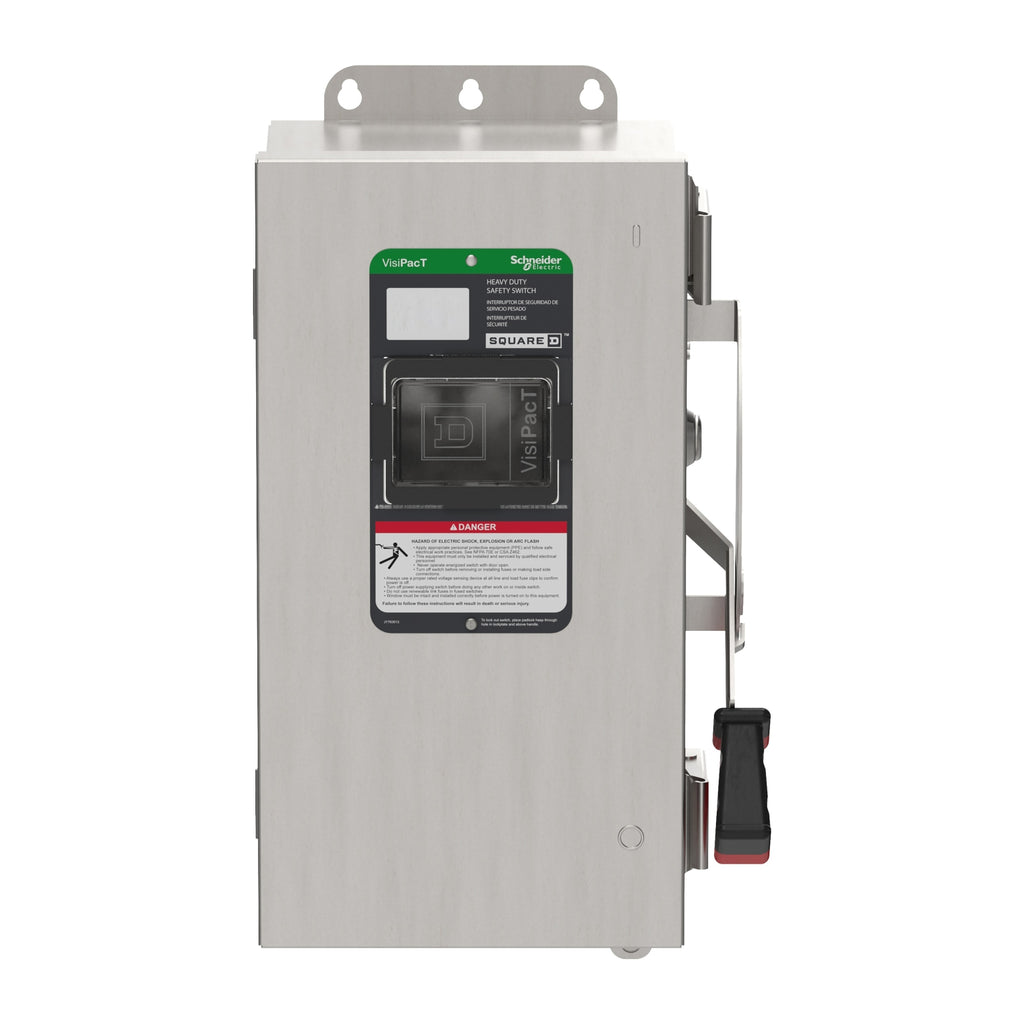

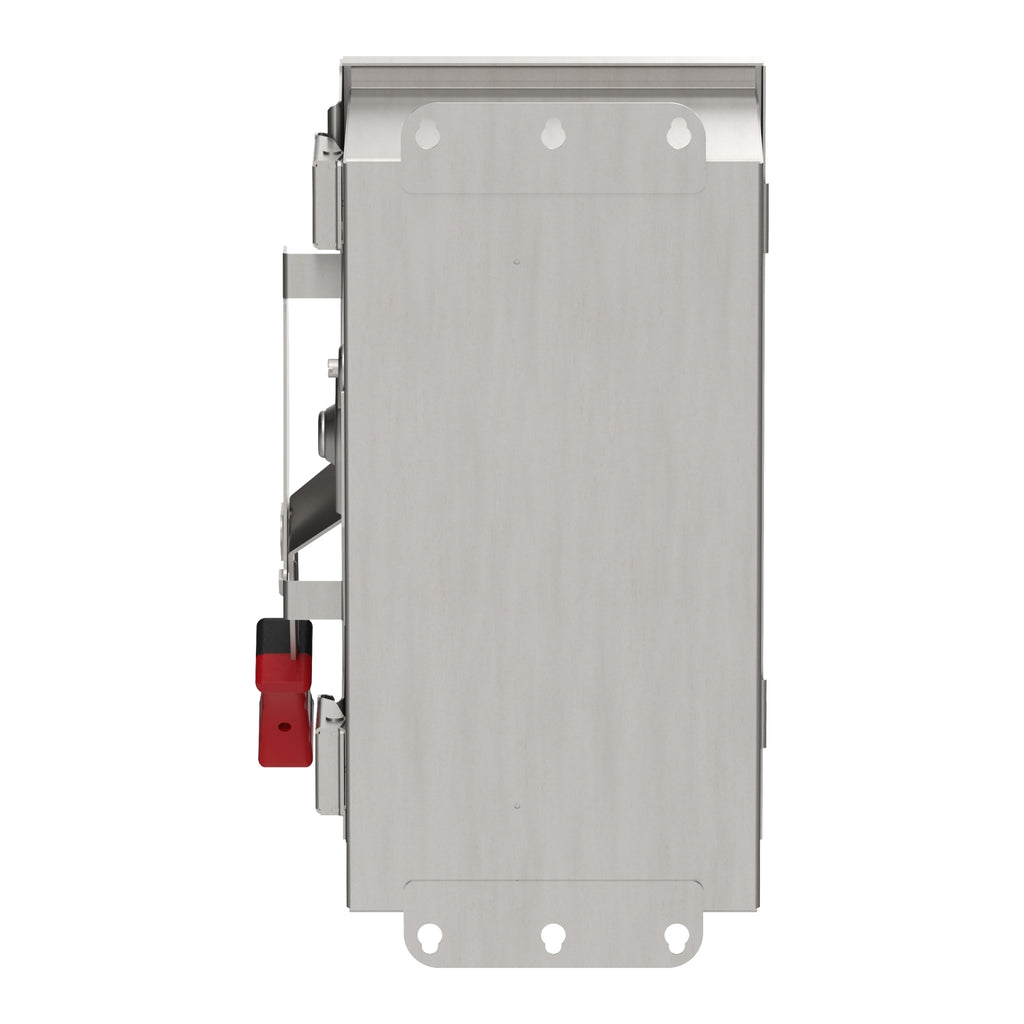

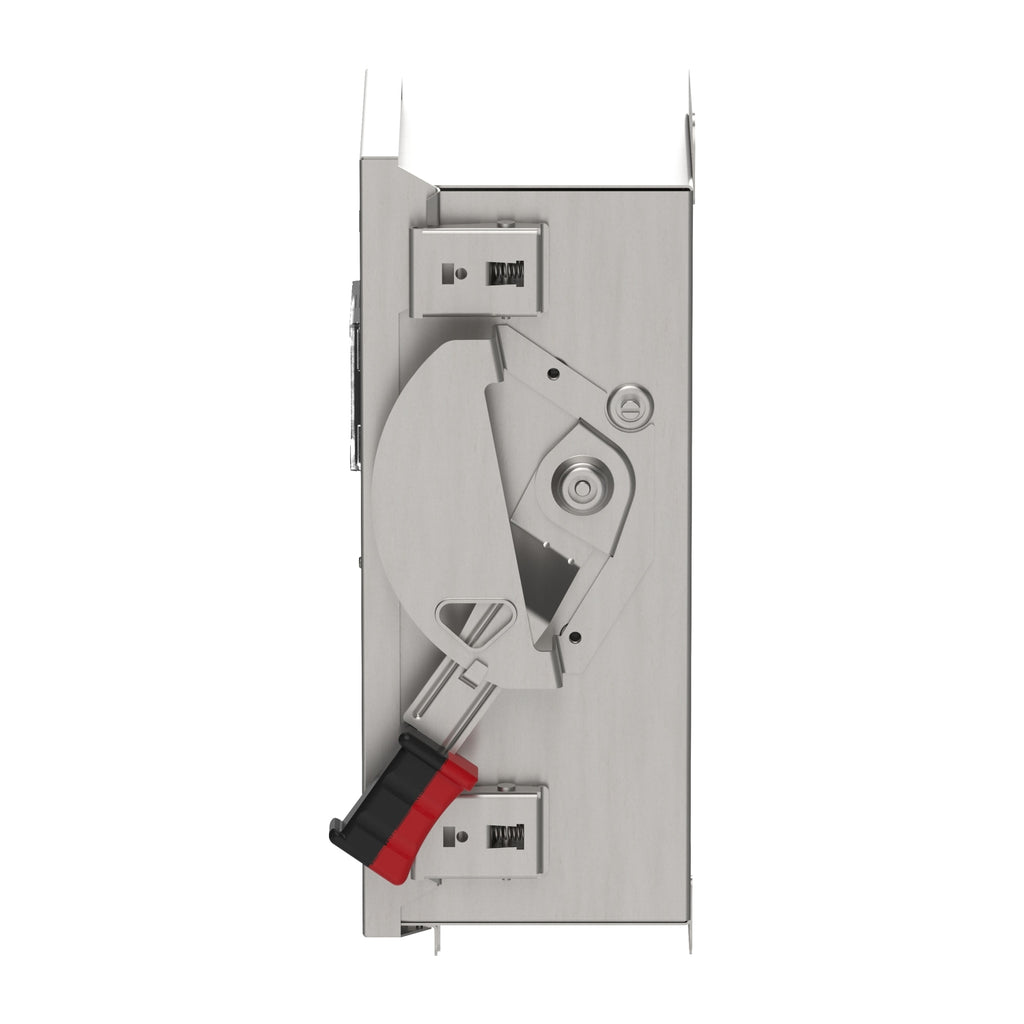

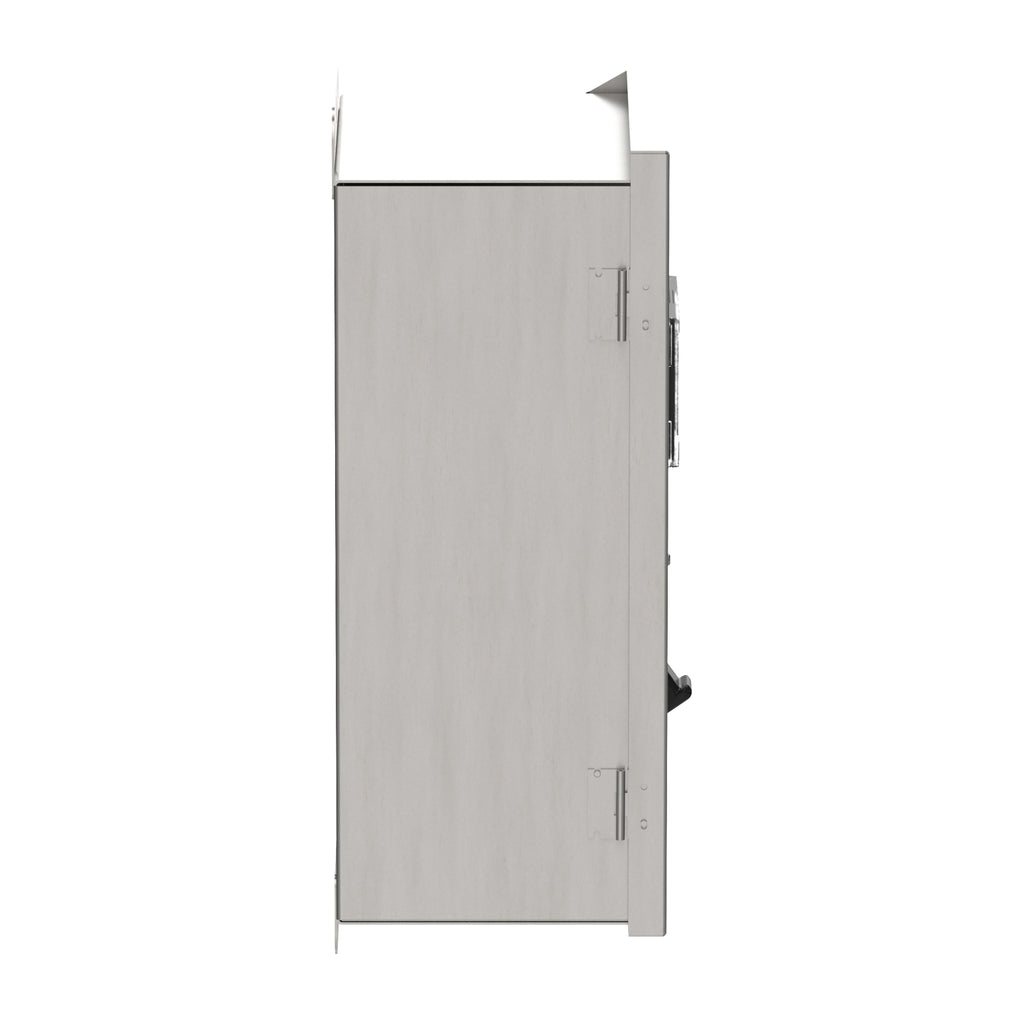

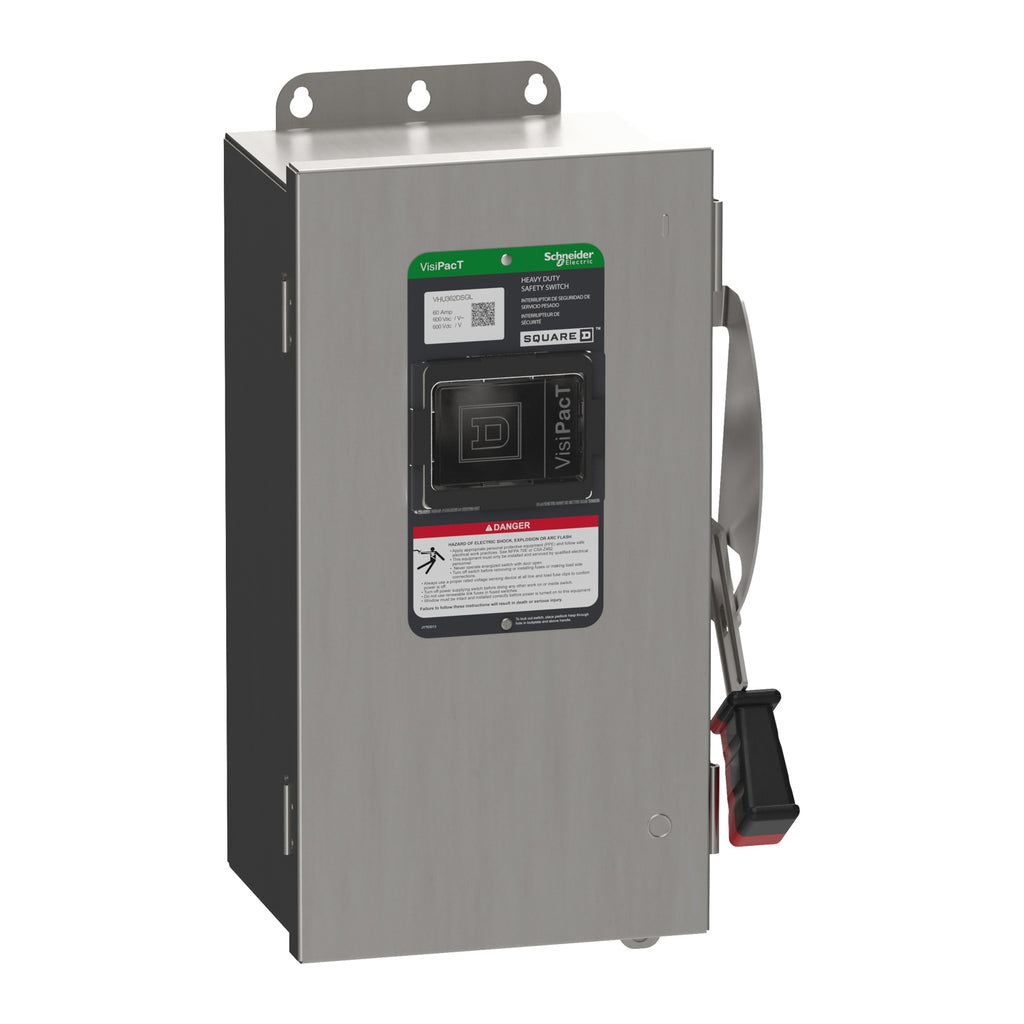

VHU362DSGL is a heavy duty non-fusible safety switch designed for reliable circuit isolation in demanding environments. This Square D Series E switch features a 3-pole configuration, 60A current rating, and 600V AC/DC voltage rating, making it suitable for a wide range of industrial and commercial applications. The unit includes a viewing window for easy status monitoring and ground lugs for secure grounding. Constructed with 304 stainless steel, it offers durability and corrosion resistance. The NEMA 4X enclosure provides protection against harsh conditions, including water and dust ingress. This safety switch is ideal for use where a robust, non-fusible disconnect is required. The design supports easy installation and maintenance, with a compact footprint and secure mounting options. The switch is suitable for both AC and DC circuits, providing flexibility in system design. The viewing window allows for visual confirmation of switch position, enhancing safety during operation and maintenance.
- Part Number: VHU362DSGL
- Manufacturer: Square D
- Amperage: 60A
- Voltage: 600V AC/DC
- Poles: 3
- Mounting Type: Panel Mount
- Interrupt Rating: 100kA
- Series/Frame: Series E
- Enclosure: NEMA 4X, 304 Stainless Steel
- Features: Viewing Window, Ground Lugs
- Application: Industrial, Commercial
- Standards: UL Listed, CSA Certified
Specifications
- Part Number: VHU362DSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600 AC/DC
- Amperage : 60
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589468
- GTIN : 03606485894683
- Country of Origin : United States
- Dimensions : 16.93 in (430.02 mm) x 8.92 in (226.57 mm) x 7.26 in (184.40 mm) (Height x Width x Depth)
- Weight : 20.9 lb
- Certification : EU RoHS, UL listed file E2875
