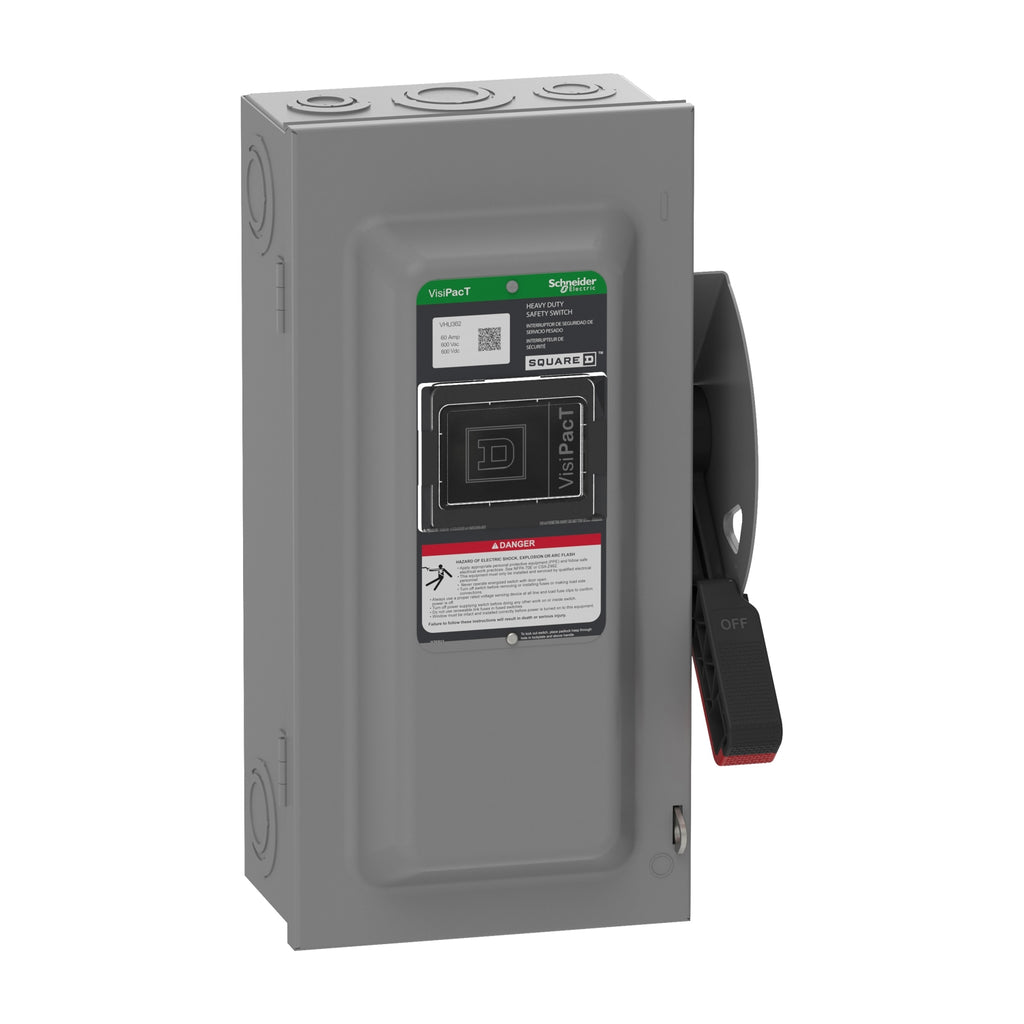

VHU362 - Square D 60A 600V 3-Pole Heavy Duty Non-Fusible Safety Switch NEMA 1 Surface Mount

VHU362

VHU362 is a Square D heavy duty non-fusible safety switch rated for 60 amps and 600 volts with a 3-pole configuration.This switch features a NEMA 1 steel enclosure, surface mounting, and lug terminals for secure wiring connections. It supports single throw contact form and is suitable for 50 to 60 Hz frequency applications. The compact dimensions are 18.75 in H x 8.91 in W x 7.04 in D.

Key Specifications
• Amperage: 60 A
• Voltage: 600 V AC/DC
• Poles: 3
• Enclosure Type: NEMA 1
• Mounting Type: Surface
• Contact Form: Single Throw
• Terminal Type: Lug
• Frequency: 50 to 60 Hz
• Material: Steel
• Dimensions: 18.75 in H x 8.91 in W x 7.04 in D
• Manufacturer: Square D (Schneider Electric)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VHU362
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 600 AC/DC
• Amperage : 60
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 060648589465
• GTIN : 03606485894652
• Country of Origin : United States
• Dimensions : 18.184 in (461.874 mm) x 8.91 in (226.31 mm) x 7.04 in (178.82 mm) (Height x Width x Depth)
• Weight : 14.749 lb
• Certification : EU RoHS, UL listed file E2875
