Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU361SSGL

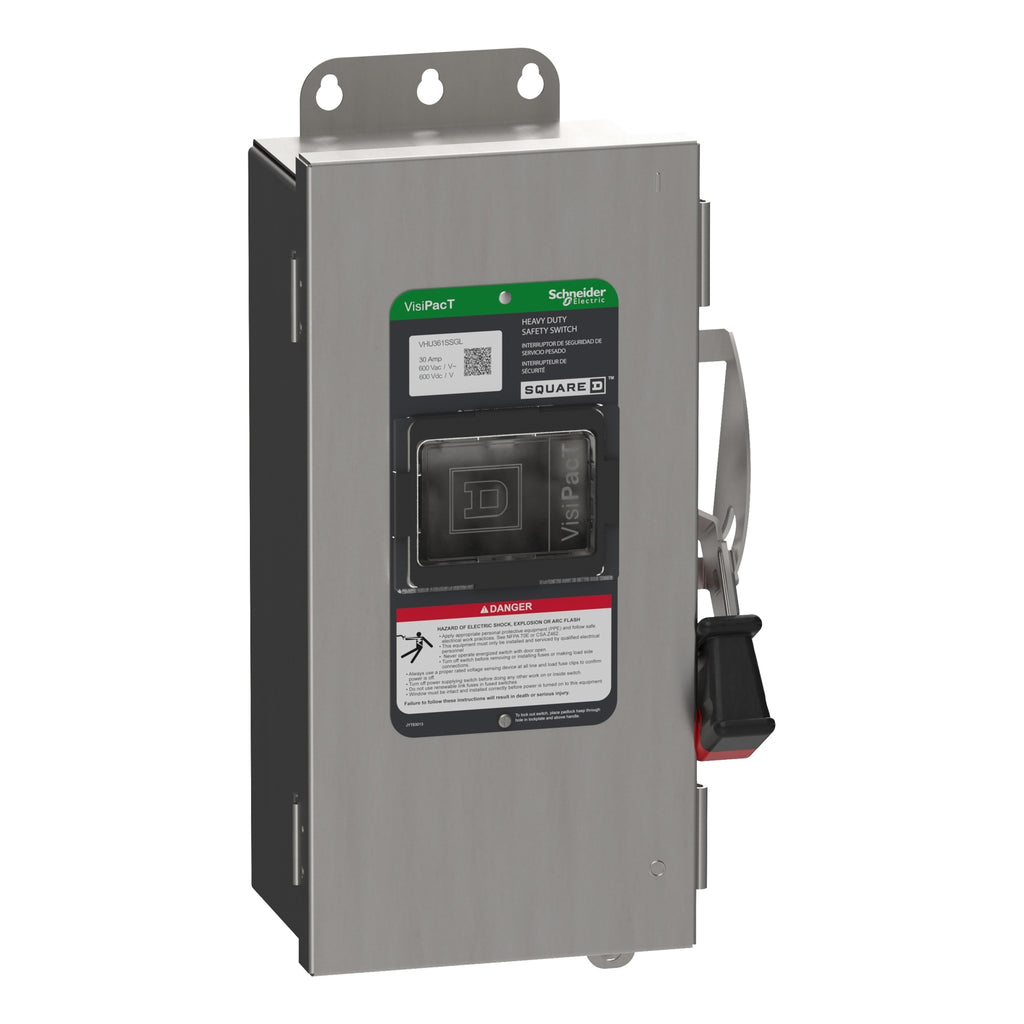

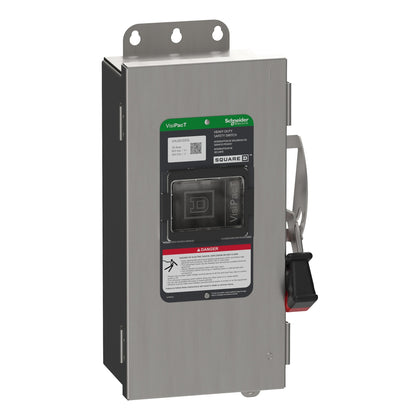

VHU361SSGL is a Square D heavy duty non-fusible safety switch designed for reliable power disconnect applications.This 3-pole safety switch features a 30 ampere current rating and supports voltages up to 600 VAC/VDC. It is constructed with a 304 stainless steel enclosure rated NEMA 4X for indoor and outdoor use, providing corrosion resistance and durability. The switch is surface mounted and includes lug-type terminals for secure wiring connections. It is UL listed and suitable for heavy duty service entrance applications.
- Amperage: 30 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Enclosure Material: 304 Stainless Steel
- NEMA Rating: 4X
- Terminal Connection: Lug
- Type: Heavy Duty Non-Fusible Disconnect
- Standards: UL Listed
- Phase: 3
Specifications
- Part Number: VHU361SSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589454
- GTIN : 03606485894546
- Country of Origin : United States
- Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
- Weight : 13.717 lb
- Certification : UL listed file E3031
