Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description

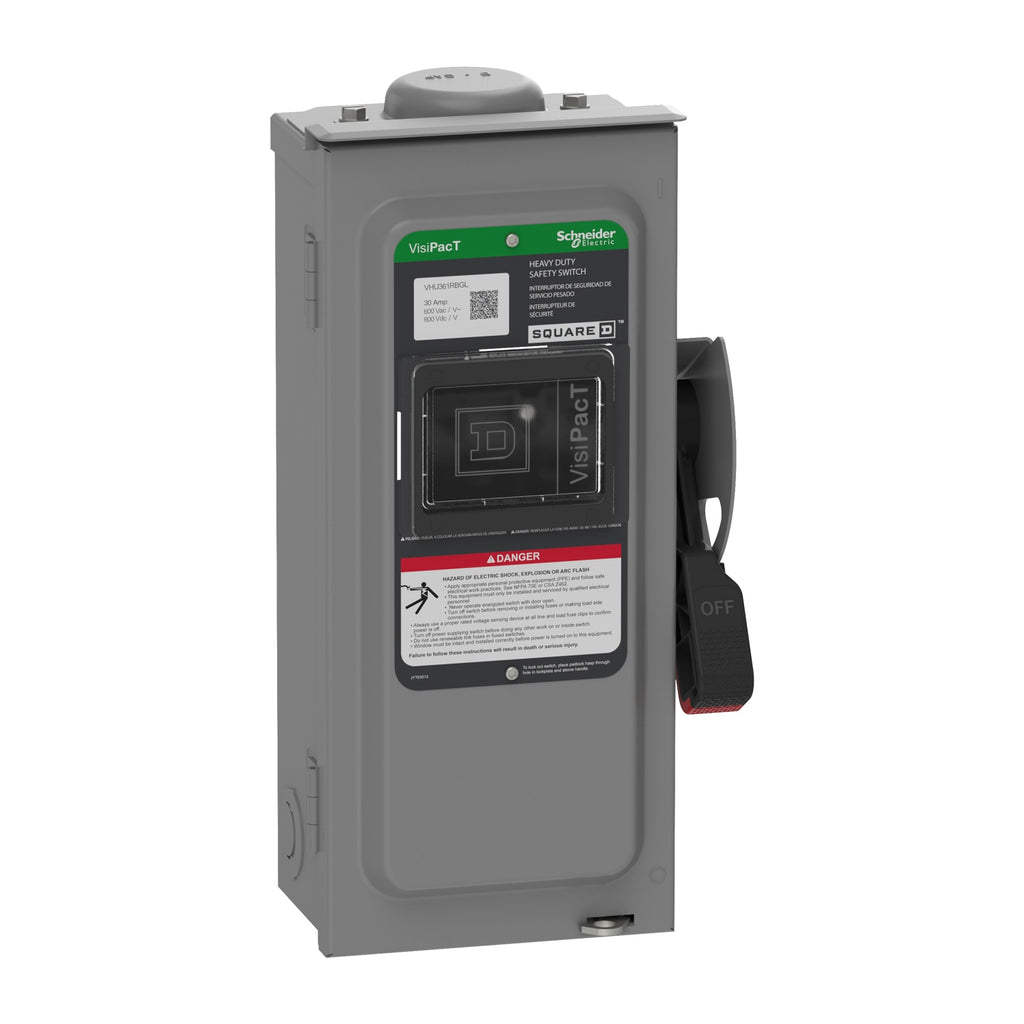

VHU361RBGL
VHU361RBGL is a Square D heavy duty safety switch designed for reliable power distribution and protection.This 30 Amp, 3 pole, unfused safety switch features a NEMA 3R rated enclosure with a viewing window and is rated for 600 VAC and 600 VDC applications. It includes factory-installed equipment ground lugs and supports surface mounting. The switch is suitable for motor loads up to 30 hp at 600 V AC and is tested to UL98 and NEMA KS1 standards.
- Amperage: 30 Amp
- Voltage Rating: 600 VAC / 600 VDC
- Number of Poles: 3
- Mounting Type: Surface Mount
- Enclosure Rating: NEMA 3R
- Switch Type: Heavy Duty, Unfused
- Viewing Window: Yes, factory installed
- Ground Lugs: Factory installed equipment ground lugs
- Motor HP Ratings: Up to 30 hp at 600 V AC
- Standards: UL98, NEMA KS1
- Country of Origin: United States
Specifications
- Part Number: VHU361RBGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589505
- GTIN : 03606485895055
- Country of Origin : United States
- Dimensions : 14.843 in (377.012 mm) x 6.62 in (168.15 mm) x 5.106 in (129.692 mm) (Height x Width x Depth)
- Weight : 8.8 lb
- Certification : UL listed file E3030
