Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VHU361RB

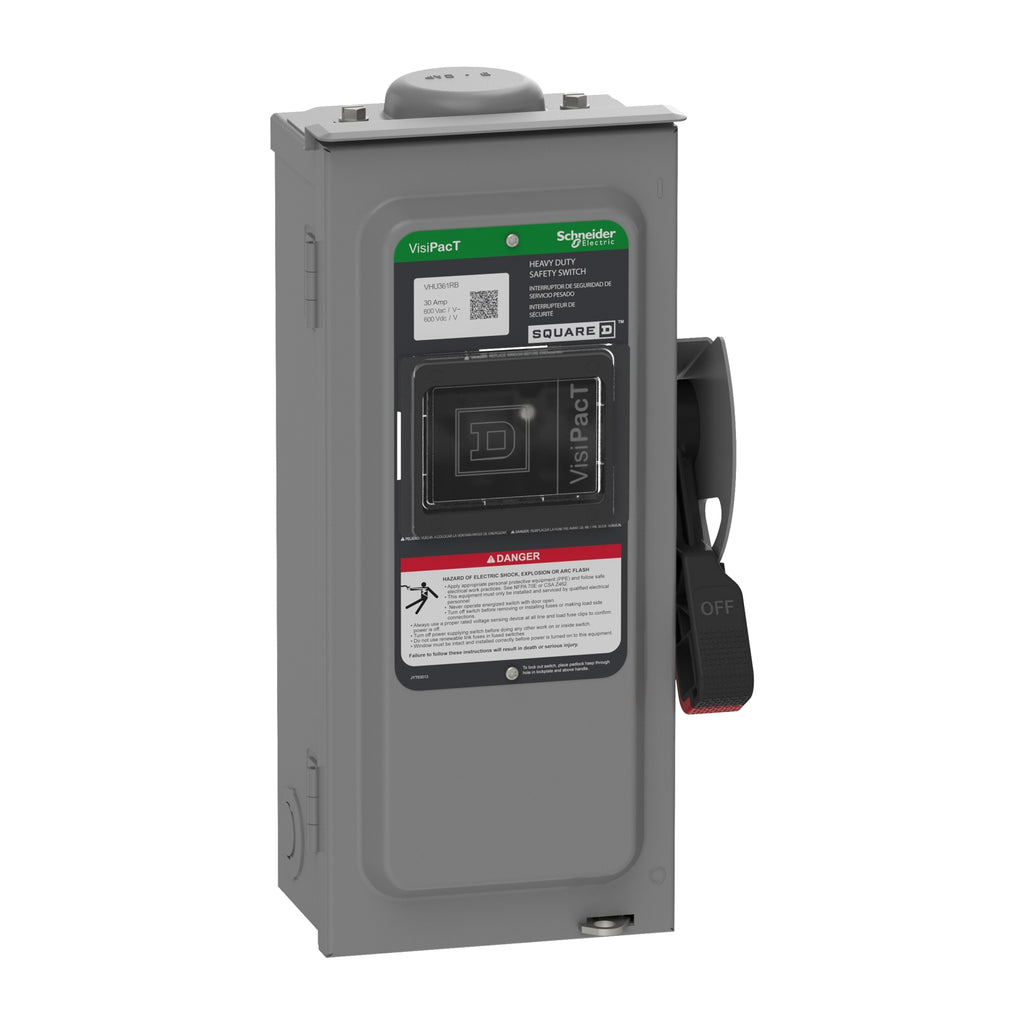

VHU361RB is a Square D 30 Amp, 600 Volt, 3 Pole non-fusible safety switch designed for heavy-duty indoor and outdoor applications.VHU361RB features a NEMA 3R raintight galvanized steel enclosure with a viewing window and dual cover interlock for enhanced safety. It supports surface mounting and is UL listed, suitable for service entrance and heavy-duty use with lug terminal connections. This switch is rated for 600VAC/VDC and accommodates wire gauges from AWG 14 to AWG 6 for copper or aluminum wiring.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: Heavy Duty
- Series/Frame: F Series
- Trip Unit: Non-Fusible
- Enclosure: NEMA 3R Galvannealed Steel
- Terminal Connection: Lugs
- Certifications: UL Listed, RoHS Compliant
- Wire Gauge: AWG 14 to AWG 6 Copper/Aluminum
- Contact Configuration: 3PST (3 Pole Single Throw)
Specifications
- Part Number: VHU361RB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600 AC/DC
- Amperage : 30
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589451
- GTIN : 03606485894515
- Country of Origin : United States
- Dimensions : 14.843 in (377.012 mm) x 6.62 in (168.15 mm) x 5.106 in (129.692 mm) (Height x Width x Depth)
- Weight : 8.8 lb
- Certification : EU RoHS, UL listed file E2875
